to the Matrox move & scale effect. You can map to the Matrox 3D DVE
effect only if you have a display card that supports the Matrox
hardware-accelerated effects. For more information, see
disabling the Matrox hardware-accelerated effects in Adobe Premiere
Pro"
Click OK to save your settings and return to the Project Settings dialog
4
box.

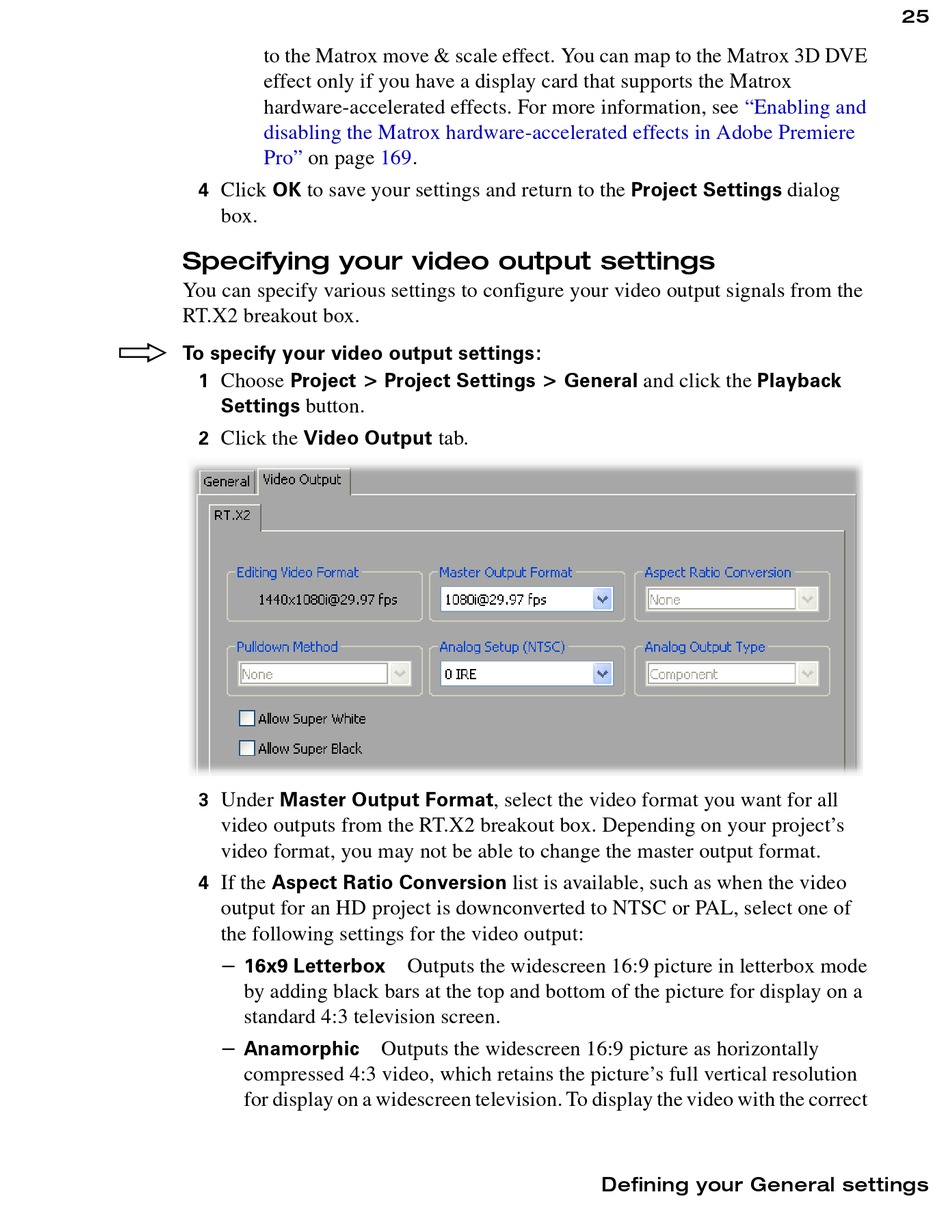

Specifying your video output settings

You can specify various settings to configure your video output signals from the
RT.X2 breakout box.
° To specify your video output settings:
Choose Project > Project Settings > General and click the Playback
1
Settings
2 Click the Video Output tab.
Under Master Output Format , select the video format you want for all
3
video outputs from the RT.X2 breakout box. Depending on your project's
video format, you may not be able to change the master output format.
If the Aspect Ratio Conversion list is available, such as when the video
4
output for an HD project is downconverted to NTSC or PAL, select one of
the following settings for the video output:
16x9 Letterbox
$
by adding black bars at the top and bottom of the picture for display on a
standard 4:3 television screen.
Anamorphic
$
compressed 4:3 video, which retains the picture's full vertical resolution
for display on a widescreen television. To display the video with the correct
on page 169.
button.
Outputs the widescreen 16:9 picture in letterbox mode
Outputs the widescreen 16:9 picture as horizontally
"Enabling and
Defining your General settings
25
