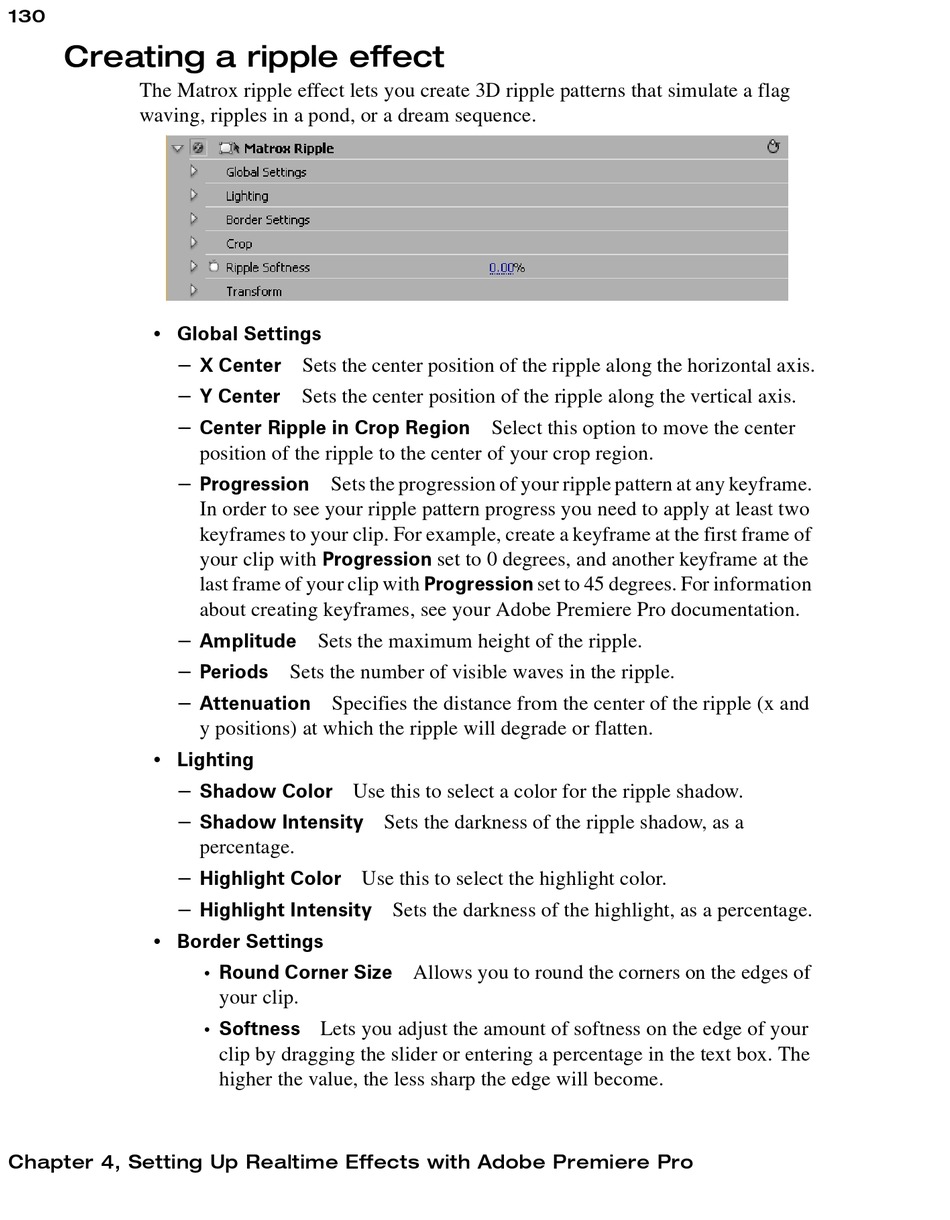

Creating a ripple effect

The Matrox ripple effect lets you create 3D ripple patterns that simulate a flag
waving, ripples in a pond, or a dream sequence.
• Global Settings
$
$
$
$
$
$
$
• Lighting
$
$
$
$
• Border Settings
Chapter 4, Setting Up Realtime Effects with Adobe Premiere Pro
X Center Sets the center position of the ripple along the horizontal axis.
Y Center Sets the center position of the ripple along the vertical axis.
Center Ripple in Crop Region
position of the ripple to the center of your crop region.
Progression Sets the progression of your ripple pattern at any keyframe.
In order to see your ripple pattern progress you need to apply at least two
keyframes to your clip. For example, create a keyframe at the first frame of
your clip with Progression set to 0 degrees, and another keyframe at the
last frame of your clip with Progression set to 45 degrees. For information
about creating keyframes, see your Adobe Premiere Pro documentation.
Amplitude Sets the maximum height of the ripple.
Sets the number of visible waves in the ripple.
Periods
Attenuation Specifies the distance from the center of the ripple (x and
y positions) at which the ripple will degrade or flatten.
Shadow Color Use this to select a color for the ripple shadow.
Shadow Intensity
percentage.
Highlight Color Use this to select the highlight color.
Highlight Intensity
Round Corner Size
•
your clip.
Softness Lets you adjust the amount of softness on the edge of your
•
clip by dragging the slider or entering a percentage in the text box. The
higher the value, the less sharp the edge will become.
Select this option to move the center
Sets the darkness of the ripple shadow, as a
Sets the darkness of the highlight, as a percentage.
Allows you to round the corners on the edges of
