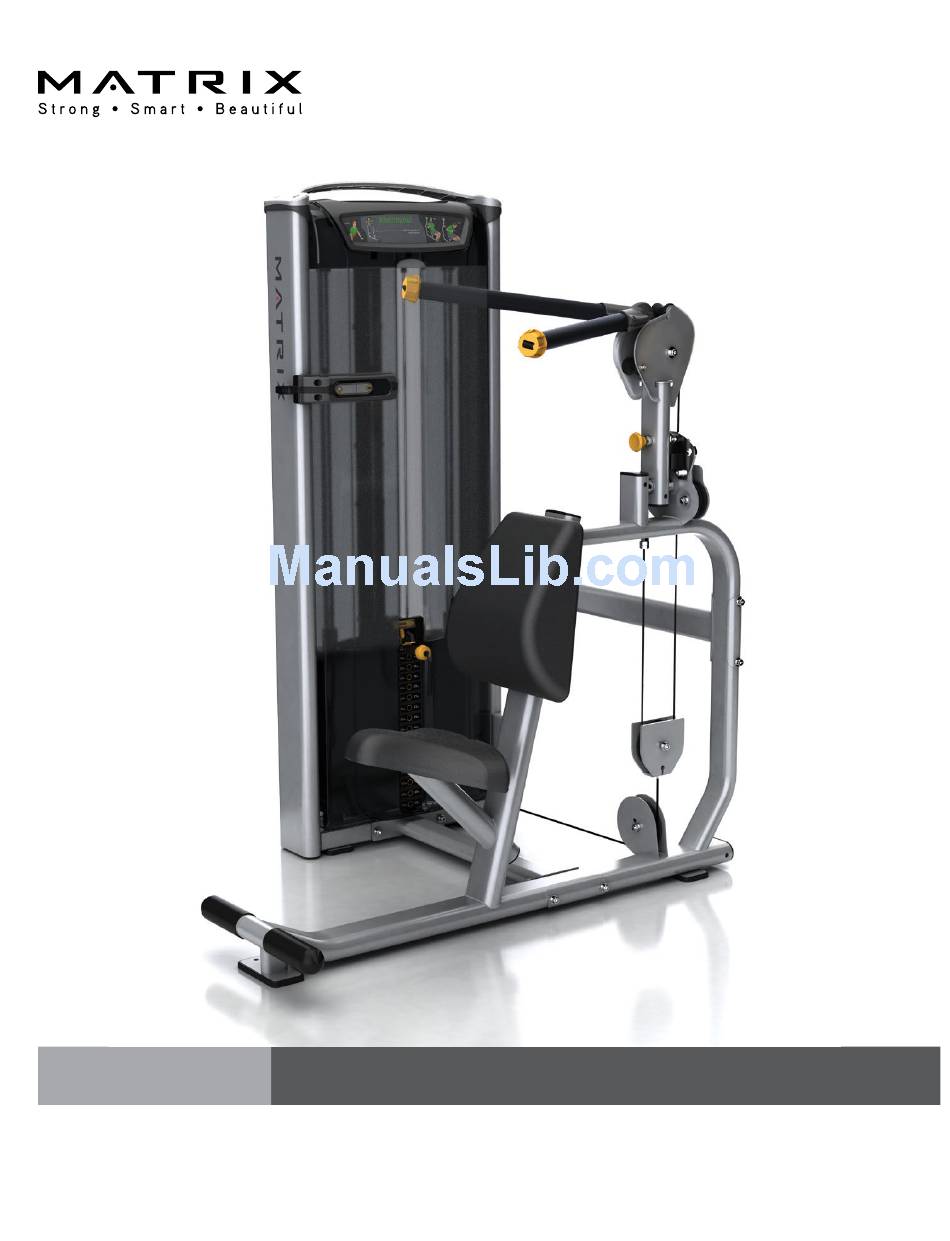

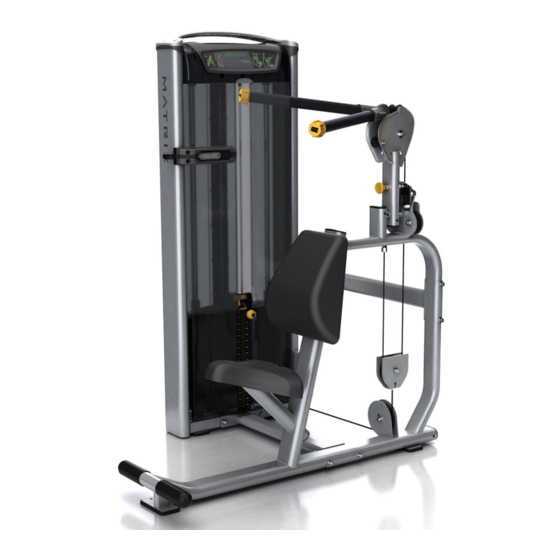

- Page 1 OWNERS MANUAL Versa Single-Station Strength VS-S53 Abdominal...
-
Page 2: Table Of Contents
Table Of Contents Safety, General Care & Maintenence ........3 Getting Started (Product Specifications) ......5 Assembly Information .............. 6 Markings ..................7 Parts List ..................8 Installation & Assembly: Value Line Part 1 Weight Stack & User Frame Assembly ....10 Part 2 Swingarm/ROM Assembly ........ - Page 3 IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INFORMATION It is the sole responsibility of the purchaser of Matrix products to instruct all individuals, whether they are the end user or su- pervising personnel on proper usage of the equipment. It is recommended that all users of Matrix exercise equipment be informed of the following information prior to its use.
- Page 4 IMPORTANT SAFETY INSTRUCTIONS WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. WARNING: SERIOUS INJURY CAN OCCUR ON THIS EQUIPMENT. FOLLOW THESE PRECAUTIONS TO AVOID INJURY! Never allow children on strength training equipment. Teenagers must be supervised at all times while using this equipment.
-
Page 5: Getting Started (Product Specifications)
GETTING STARTED EXERCISE PLACARD | PRODUCT SPECIFICATIONS | MAINTENANCE CHECKLIST EXERCISE PLACARD PRODUCT SPECIFICATIONS TECH SPECS Overall dimensions 54”L X 47”W X 66”H Light Stack = 433 lbs (197 kg), Heavy Stack = 503 lbs (229 Weight Shipping weight 273 lbs (124 kg) WARRANTY (Valid in USA only) Frame (not coatings) 10 years... - Page 6 UNPACKING Thank you for purchasing a Matrix product. This machine is an EN957-1 and EN957-2 compliant Class S product. Your Ma- trix product is inspected before it is packaged. It is shipped in multiple pieces to facilitate the compact packaging of the machine.
-
Page 7: Markings
MARKINGS WARNING LABEL LOCATIONS... -
Page 8: Parts List
Parts List DESCRIPTION M10 X 125L Socket Head Cap Screw M10 Flat Washer Wide Cupped Flange M10 Nylock Nut User Frame Lower Connecting Tube M10 X 20L Socket Head Cap Screw Weight Stack Frame M10 X 105L Socket Head Cap Screw Narrow Cupped Flange Upper Connecting Tube Rear Stack Support... - Page 9 Parts List DESCRIPTION M10 X 25L Socket Head Cap Screw Front Shroud Rear Shroud M8 X 25L Socket Head Cap Screw Large M8 Flat Washer (Ø20 mm) Top Cap Top Cap Covers OPTIONAL PREMIUM KIT COMPONENTS Wing Rep Counter Towel Hook...
-
Page 10: Part 1 Weight Stack & User Frame Assembly
ASSEMBLY PART 1: STACK & USER FRAME ASSEMBLY STEP 1 | WEIGHT STACK TO USER FRAME ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY M10 X 125L SHC M10 Flat Washer Wide Cupped Flange M10 Nylock Nut User Frame Lower Connecting Tube M10 X 20L SHC Weight Stack Frame M10 X 105L SHC... - Page 11 ASSEMBLY PART 1: STACK & USER FRAME ASSEMBLY STEP 2 | WEIGHT STACK REAR SUPPORT FRAME ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY M10 X 20L SHC Rear Stack Support M10 Flat Washer (Small Dia.) M8 X 20L SHC M8 Flat Washer Install the user frame hardware as shown.
-
Page 12: Part 2 Swingarm/Rom Assembly
ASSEMBLY PART 2: SWINGARM ASSEMBLY STEP 1 | ROM ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY M10 Flat Washer M10 Nylock Nut M10 X 20L SHC ROM Plate Torque hardware to: 77 N-m/57 ft-lbs. - Page 13 ASSEMBLY PART 2: SWINGARM ASSEMBLY STEP 2 | SWINGARM ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY M10 Flat Washer M10 Nylock Nut Pulley Swingarm M10 X 110L SHC Remove End Cap to assemble Nylock Nut, replace End Cap. Torque hardware to: 77 N-m/57 ft-lbs.
-
Page 14: Part 3 Cable Assembly
ASSEMBLY PART 3: CABLE ASSEMBLY STEP 1 | CABLE ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY Exercise Yoke and User Cable Assembly Route the cable between the smaller V-pulley and main pulley as shown. - Page 15 ASSEMBLY PART 3: CABLE ASSEMBLY STEP 2 | UPPER PULLEY ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY M10 Flat Washer M10 Nylock Nut M10 X 50L SHC Small Pulley Pulley Guard Torque hardware to: 77 N-m/57 ft-lbs.
- Page 16 ASSEMBLY PART 3: CABLE ASSEMBLY STEP 3 | FLOATING PULLEY ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY Cable Clevis Floating Pulley Bracket Weight Stack Cable Assemble the stack cable end fitting through floating pulley bracket opening. 2. Raise the cable up. 3.
- Page 17 ASSEMBLY PART 3: CABLE ASSEMBLY STEP 4 |FLOATING PULLEY ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY M10 Flat Washer M10 Nylock Nut M10 X 50L SHC Large Pulley User Frame Cable Torque hardware to: 77 N-m/57 ft-lbs.
- Page 18 ASSEMBLY PART 3: CABLE ASSEMBLY STEP 5 | USER CABLE ASSEMBLY INSTRUCTIONS & NOTES Fully tighten cable end into threaded boss.
-
Page 19: Part 4 Pad Assembly
ASSEMBLY PART 4: PAD ASSEMBLY STEP 1 | PAD ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY Bottom Pad M10 X 20L Hex Bolt Install the pad as shown. Tighten to 57 N-m/41 ft-lbs. - Page 20 ASSEMBLY PART 4: PAD ASSEMBLY STEP 2 | BACK PAD ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY M10 Flat Washer (Small Dia.) Back Pad M10 X 25L SHC Install the pad as shown. Tighten to 57 N-m/41 ft-lbs.
-
Page 21: Part 5 Plastics Assembly
ASSEMBLY PART 5: PLASTICS ASSEMBLY STEP 1 | SHROUD ASSEMBLY ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY Front Shroud Rear Shroud (Not shown) Position hangers in their lowest position Install the weight stack shrouds as shown. - Page 22 ASSEMBLY PART 5: PLASTICS ASSEMBLY STEP 2 | TOP CAP ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY M8 X 25L SHC M8 Flat Washer (20 mm diameter) Top Cap Install the top cap onto the weight stack as shown. Torque to 17 N-m/147 in-lbs. Position top cap so that the instructional placard faces the user.
- Page 23 ASSEMBLY PART 5: PLASTICS ASSEMBLY STEP 3 | TOP CAP COVERS INSTRUCTIONS & NOTES DESCRIPTION QUANTITY Top Cap Cover Install the top cap covers.
-
Page 24: Part 6 Premium Kit Assembly
ASSEMBLY PART 6: PREMIUM KIT ASSEMBLY PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY Wing Rep Counter Towel Hook I M PO RTA NT NOTI CE PLEASE NOTE: Be sure to remove the insulating sheet when installing the Rep Counter. -
Page 25: Weight Stack Frame
ASSEMBLY PART 6: PREMIUM KIT ASSEMBLY STEP 1 | PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES Rep Counter - Magnet 1. Remove the (2) top cap covers using a flat blade screw driver. 2. Remove the (4) M8 bolts and 20 mm diameter washers that hold the top cap to the weight stack frame. - Page 26 ASSEMBLY PART 6: PREMIUM KIT ASSEMBLY STEP 2 | PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES Rep Counter - Sensors 1. Assemble Rep Counter sensor base using (4) screws included with the kit. 2. Assemble (3) sensors located per machine chart shown below.
- Page 27 ASSEMBLY PART 6: PREMIUM KIT ASSEMBLY STEP 3 | PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES Rep Counter 1. Remove and discard hole caps using caution not to scratch the paint. 2. Attach plug to Rep Counter. 3. Assemble Towel Hook (3P) and Rep Counter (2P) using the M8 X 35L SHC bolts provided.
- Page 28 ASSEMBLY PART 6: PREMIUM KIT ASSEMBLY STEP 4 | PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES Wing Assemble the wing (1P) as shown using the M8 hardware provided with the kit. Tighten to 39N-m (29 ft-lbs.).
- Page 32 Matrix Fitness 1600 Landmark Drive Cottage Grove WI 53527 matrixfitness.com Toll-free 866.693.4863 Facsimilie 608.839.8687 Versa Abdominal Owners Guide Rev.1.2 Copyright© 2013 Matrix Fitness...
