2

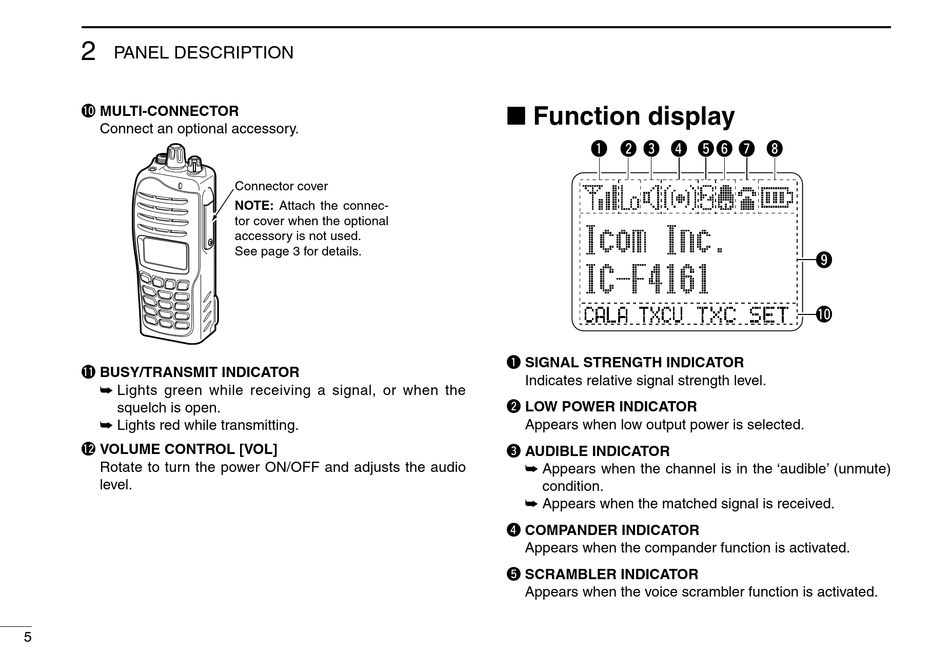

PANEL DESCRIPTION
!0 MULTI-CONNECTOR
Connect an optional accessory.
!1 BUSY/TRANSMIT INDICATOR
➥ Lights green while receiving a signal, or when the
squelch is open.
➥ Lights red while transmitting.
!2 VOLUME CONTROL [VOL]
Rotate to turn the power ON/OFF and adjusts the audio
level.
5
Connector cover
NOTE: Attach the connec-
tor cover when the optional
accessory is not used.
See page 3 for details.

■ Function display

q w e r
CALA TXCU TXC
q SIGNAL STRENGTH INDICATOR
Indicates relative signal strength level.
w LOW POWER INDICATOR
Appears when low output power is selected.
e AUDIBLE INDICATOR
➥ Appears when the channel is in the 'audible' (unmute)
condition.
➥ Appears when the matched signal is received.
r COMPANDER INDICATOR
Appears when the compander function is activated.
t SCRAMBLER INDICATOR
Appears when the voice scrambler function is activated.
t y u i
o
!0
SET
