3

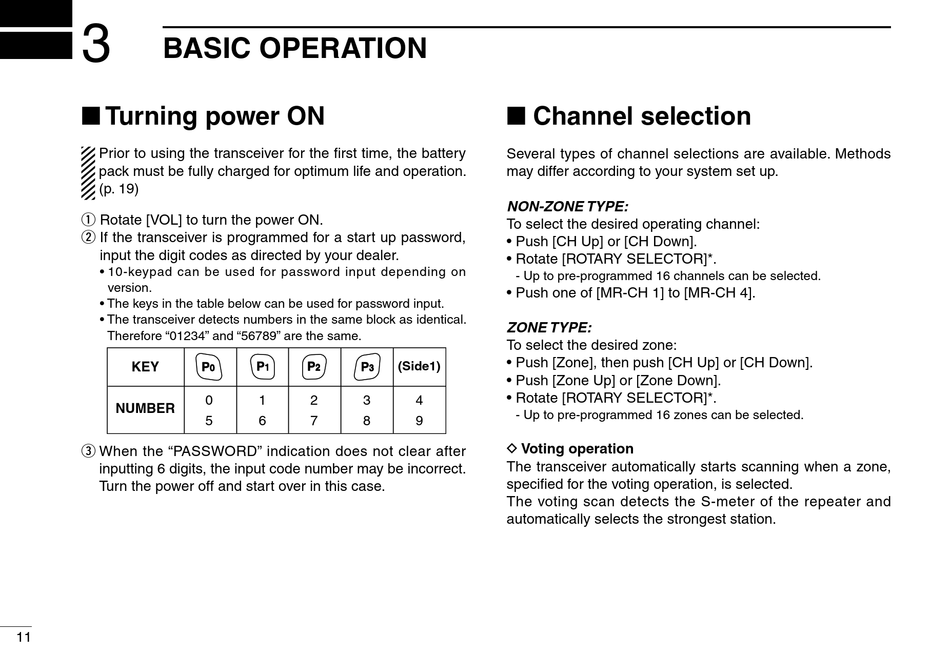

BASIC OPERATION

■ Turning power ON

Prior to using the transceiver for the first time, the battery
pack must be fully charged for optimum life and operation.
(p. 19)
q Rotate [VOL] to turn the power ON.
w If the transceiver is programmed for a start up password,
input the digit codes as directed by your dealer.
• 10-keypad can be used for password input depending on
version.
• The keys in the table below can be used for password input.
• The transceiver detects numbers in the same block as identical.
Therefore "01234" and "56789" are the same.
KEY
NUMBER
e When the "PASSWORD" indication does not clear after
inputting 6 digits, the input code number may be incorrect.
Turn the power off and start over in this case.
11
P P
P P
1 2
0 3
0 1 2 3
5 6 7 8

■ Channel selection

Several types of channel selections are available. Methods
may differ according to your system set up.
NON-ZONE TYPE:
To select the desired operating channel:
• Push [CH Up] or [CH Down].
• Rotate [ROTARY SELECTOR]*.
- Up to pre-programmed 16 channels can be selected.
• Push one of [MR-CH 1] to [MR-CH 4].
ZONE TYPE:
To select the desired zone:
• Push [Zone], then push [CH Up] or [CH Down].
(Side1)
• Push [Zone Up] or [Zone Down].
• Rotate [ROTARY SELECTOR]*.
4
- Up to pre-programmed 16 zones can be selected.
9
D Voting operation
The transceiver automatically starts scanning when a zone,
specified for the voting operation, is selected.
The voting scan detects the S-meter of the repeater and
automatically selects the strongest station.
