Icom IC-F3161T Instruction Manual page 27

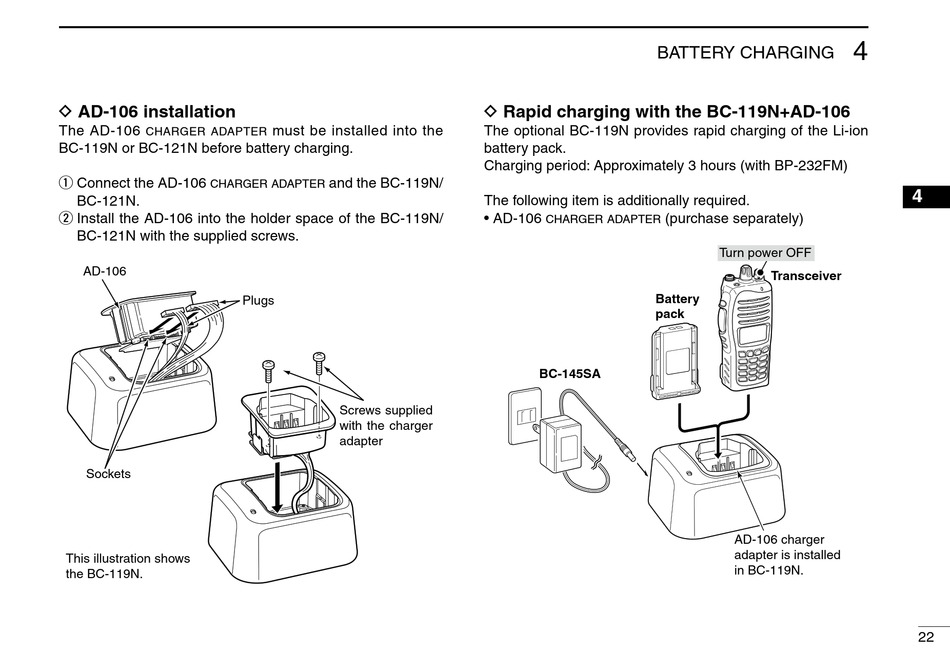

D AD-106 installation
The AD-106
charger adapter
BC-119N or BC-121N before battery charging.
q Connect the AD-106
charger adapter
BC-121N.
w Install the AD-106 into the holder space of the BC-119N/
BC-121N with the supplied screws.
AD-106
Sockets
This illustration shows
the BC-119N.
must be installed into the
and the BC-119N/
Plugs
Screws supplied
with the charger
adapter
BATTERY CHARGING
D Rapid charging with the BC-119N+AD-106
The optional BC-119N provides rapid charging of the Li-ion
battery pack.
Charging period: Approximately 3 hours (with BP-232FM)
The following item is additionally required.
• AD-106
charger adapter
Battery
pack
BC-145SA
(purchase separately)
Turn power OFF
Transceiver
AD-106 charger
adapter is installed
in BC-119N.
