NetVanta 7100 Exercise – Basic Installation and Call Handling
Ring Group and Door Phone

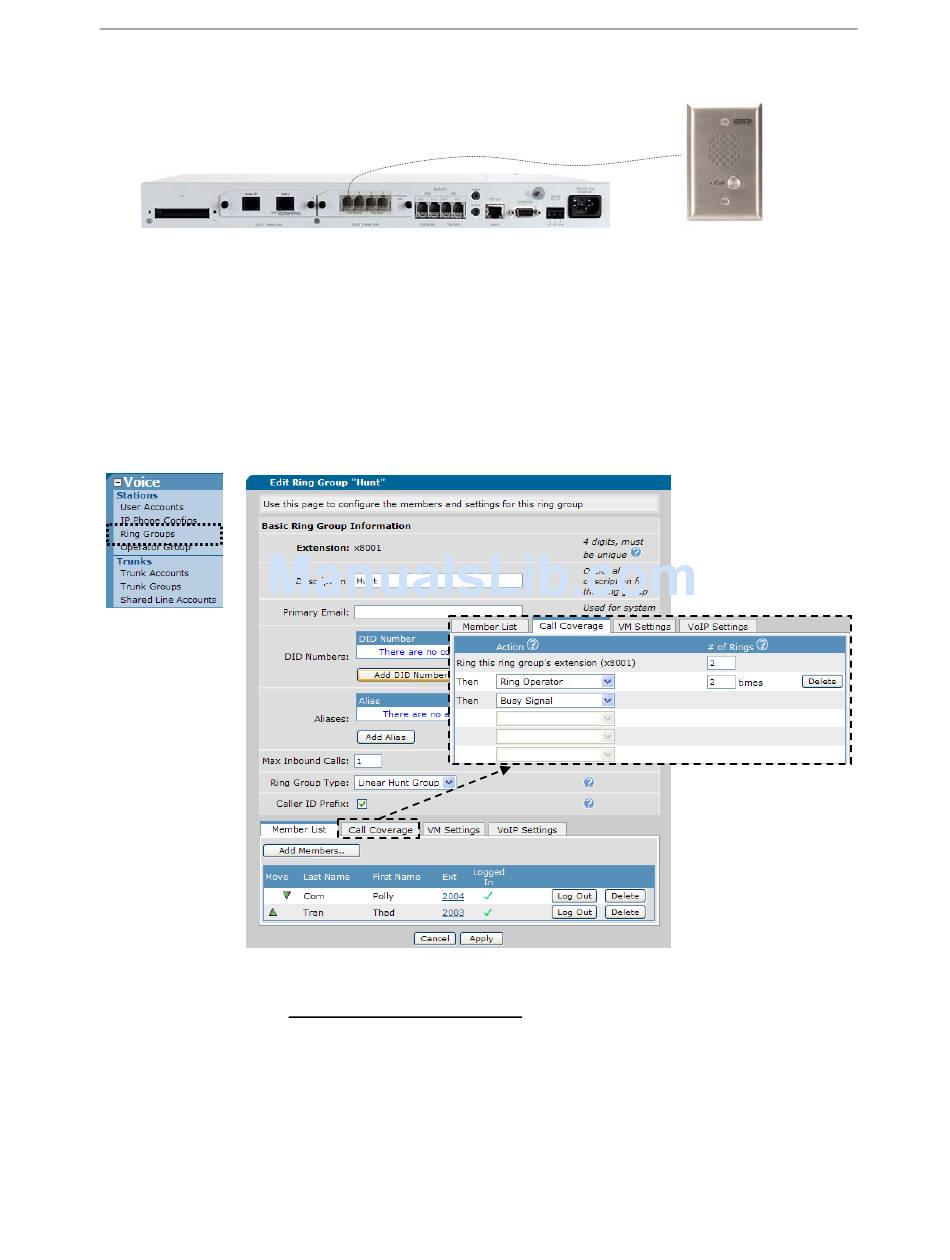

In the following steps, you will create a ring group and a door phone user account. You
will then link the two so that when a user presses a button on the door phone, it will dial
the users added to the ring group. The door phone has been connected to port FXS 2/1.
17. Select Voice / Stations / Ring Groups from the NetVanta 7100 menus.
18. Create ring group 8001 with the settings shown below:
L2-12 NetVanta IP Telephony Course
New Ring Group Settings
Ring Group Ext:
Description:
Ring Group Type:
Members:
Call Coverage:
8001
Hunt
Linear Hunt Group
2003 & 2004
Ring 2 times, and then go to Operator
