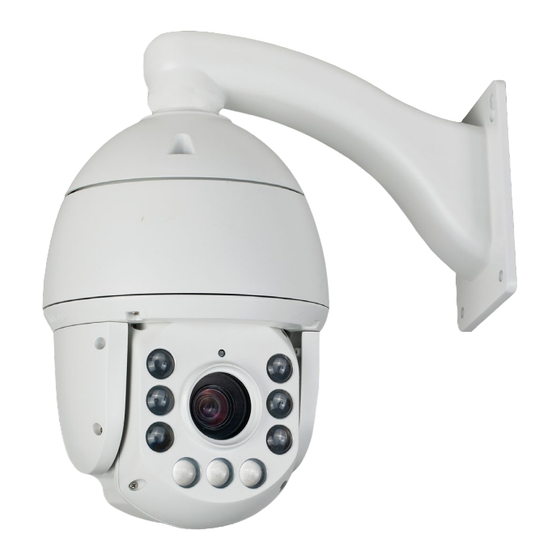

Professional HD 960H 30x Zoom
Speed Dome - 120m IR Night Vision
User Manual
Thank you for purchasing the XC960S30IRN camera from Xvision.
Please ensure that you read and understand this User Guide before operating the camera.
Please store this User Guide in an easily accessible location.
Version 1
Advertisement
Table of Contents
Related Manuals for XVision XC960S30IRN
Summary of Contents for XVision XC960S30IRN
- Page 1 Speed Dome - 120m IR Night Vision User Manual Thank you for purchasing the XC960S30IRN camera from Xvision. Please ensure that you read and understand this User Guide before operating the camera. Please store this User Guide in an easily accessible location.
-
Page 2: Table Of Contents
XC960S30IRN 960H Contents 1. Product Overview .................. 1.1 Features ..................1.2 Package Contents................2. Installation .................... 2.1 Connections .................. 3. Hardware Installation ................4. Operation Instructions ................4.1 Preset Functions ................4.2 Keyboard Operation ..............4.2.1 Preset Location Scan ............ - Page 3 XC960S30IRN 960H Safety Precautions 1. Do not install the equipment in an environment with too much moisture, dust or smoke dust as this may result in fire or electric shock. 2. In the unlikely event that the equipment should malfunction and emit an abnormal smell or smoke, please immediately stop it, shut off the power and contact your supplier.
-
Page 4: Product Overview
XC960S30IRN 960H 1. Product Overview 1. Product Overview Thank you for purchasing the HD 960H XC960S30IRN from Xvision. Please read through this manual carefully and make sure you understand before operating the camera. 1.1 Features • Sony 960H CCD Sensor •... -
Page 5: Installation
XC960S30IRN 960H 1. Product Overview 2. Installation The XC960S30 camera can be wall mounted, please follow the steps below for installation. 1. Using the bracket as a stencil, mark out the drill 2. If feeding wires through the wall, you will need holes needed in the wall. -
Page 6: Connections
XC960S30IRN 960H 2.1. Connections BNC Socket for Video DC Socket for Power RS485 Terminal for Speed Dome Control www.xvision.com... -
Page 7: Hardware Installation
XC960S30IRN 960H 1. Product Overview Hardware Installaton 3.1 Address Setting The address of the camera can be set in 2 ways: 1. Address Dial Switch: To do this, adjust the dial switch on the camera to the desired address. 2. Soft Address: To set by soft address, you will need to go to the OSD Menu. For more information, please go to section 5.6 on page 14. -
Page 8: Operation Instructions
XC960S30IRN 960H 1. Product Overview 4. Operation Instruction 4.1 Preset Functions Please Note: Not all functions are supported (we recommend using our XSDA-2 for alarm in and out functions). Preset Location Function 95+CALL Entering the main menu XXX+PRESET Saving a preset point... - Page 9 XC960S30IRN 960H 62+CALL Operating the second group of pattern 2 63+CALL Operating the third group of pattern 3 64+CALL Operating the fourth group of pattern 4 65+CALL Starting 360° continuous rotation 67+CALL Arm Alarm output 1 68+CALL Arm Alarm output 2...
-
Page 10: Keyboard Operation
XC960S30IRN 960H 97+CALL Begin image rollover function 98+CALL Stop image rollover function 101+CALL Defaulted setting 102+CALL Switch manual operation speed (Fast/Medium/Slow) 103+CALL Switch linear scanning speed (Fast/Medium/Slow) 107+CALL, 108+CALL Calling 107 followed by 108 will restard the dome 109+CALL Start communication for fault indication... -
Page 11: Start Area Scanning
XC960S30IRN 960H 2. Using the keyboard for setting Set the left boundary of region 1 by moving the joystick to the left until you have reached the ideal position. To confirm the position, press the ‘OPEN’ key. Set the right boundary of region 1 by moving the joystick to the right until you have reached the ideal position. -
Page 12: Menu Setting
XC960S30IRN 960H 1. Product Overview 5. Menu Setting To access the camera menu, when the camera is on, use the command ‘CALL 95 preset location’. When the menu has appeared, you will be presented with the following options: • System Information •... -
Page 13: Camera Setting 1
XC960S30IRN 960H 5.2 Camera Setting 1 Option: ZM SPEED / WB / EXPOSURE / B LIGHT / FREEZE The camera setting option allows you to adjust; zoom speed, white balance, exposure, backlight compensation or turn on the image freezing function. -
Page 14: Pzm - Privacy Shelter
XC960S30IRN 960H 5.3 Camera Setting 2 CONTINUED Minimum Focus: Adjust the minimum focus from 1cm, 10cm 30cm and 100cm. Last Page: Go to the previouscamera setting submenu. Exit: End and return to the previous menu. Save: Save the settings and exit the submenu 5.4 PZM - Privacy Shelter (Not available on all models) -
Page 15: Auxiliary Setting
XC960S30IRN 960H 5.6 Auxiliary Setting Option: AUTO SPEED / MAN SPEED / AUTO FLIP / START BAR ZOOM REV / SOFT ADD / SOFT ID / FREE TIME / FREE ACT / POWER The auxiliary setting allows you to adjust the speed of the pan, tilt & zoom on the camera, auto flip function, soft address switch, soft ID and the free time. -
Page 16: Title Set
XC960S30IRN 960H 5.8 Title Set Option: Area No. / Title X / Title Y / Title This option allows you to set the title of the camera and position the camera title on screen. Area No.: Set the area number (1-4) -
Page 17: Language Setting
XC960S30IRN 960H 5.10 Language Setting Option: Language set Open the language settings to change the language displayed on the OSD menu. Language: Change the language from Chinese or English LANGUAGE: ENGLISH Exit: End and return to the previous menu. EXIT... -
Page 18: Specification
XC960S30IRN 960H 1. Product Overview Specifications Model XC960S30IRN Picture Standard Horizontal Rotation 360° Resolution 960H Minimum Illumination 0 Lux (IR On) Night Vision 120m IR Night Vision Lens Type 30x Optical Varifocal Lens Lens Size 3.9-105.3mm (2-64°) Preset Locations Horizontal Rotation / Speed 360°... - Page 19 XC960S30IRN 960H 1. Product Overview Notes www.xvision.com...
- Page 20 (including accidental damage) and damage caused by normal wear and tear. In the unlikely event that you encounter a problem with this product, it should be returned to the place of purchase. Xvision UK, Unit 2 Valley Point, Beddington Farm Road, Croydon, Surrey CR0 4WP www.xvision.com...
