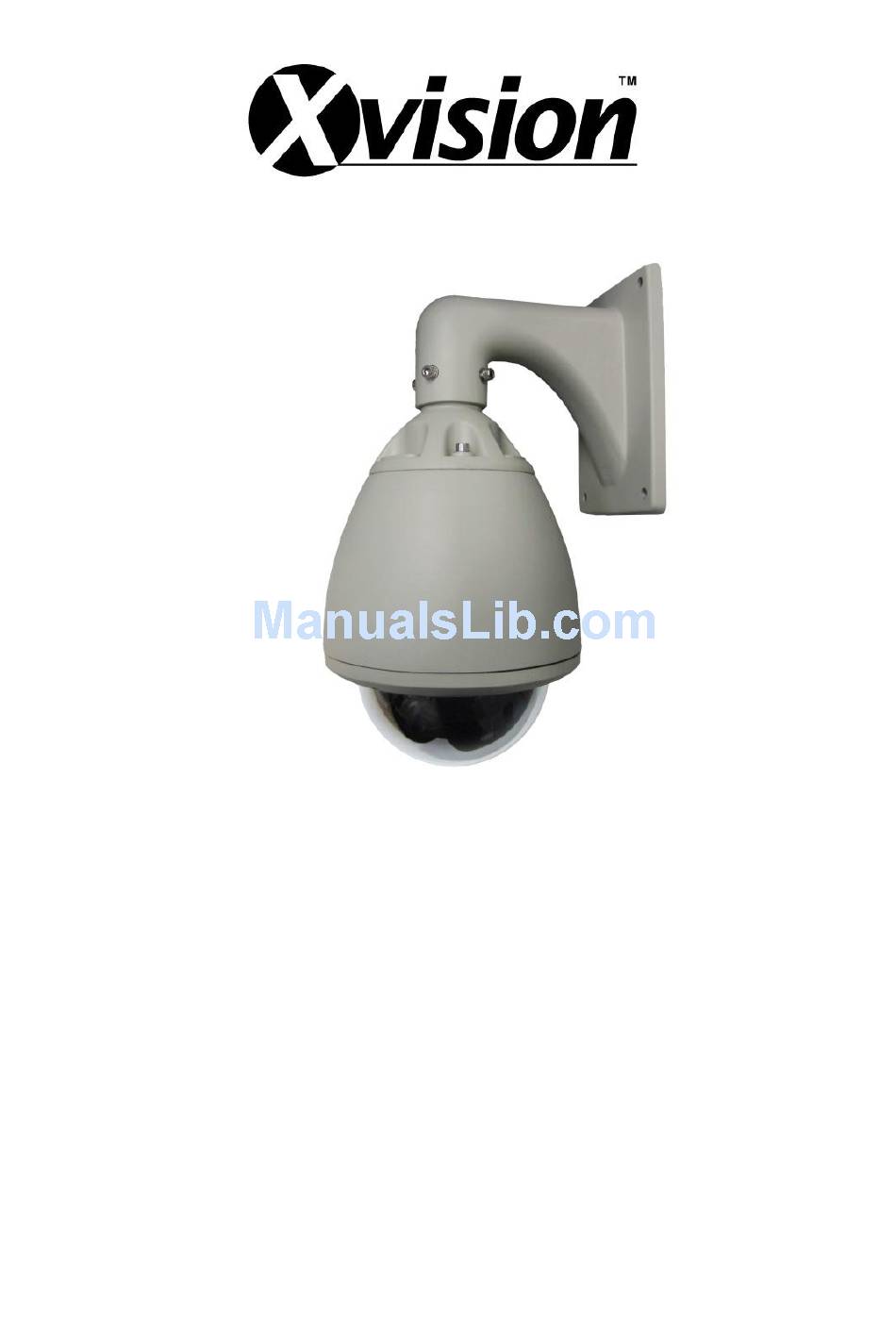

Page 1: User Manual

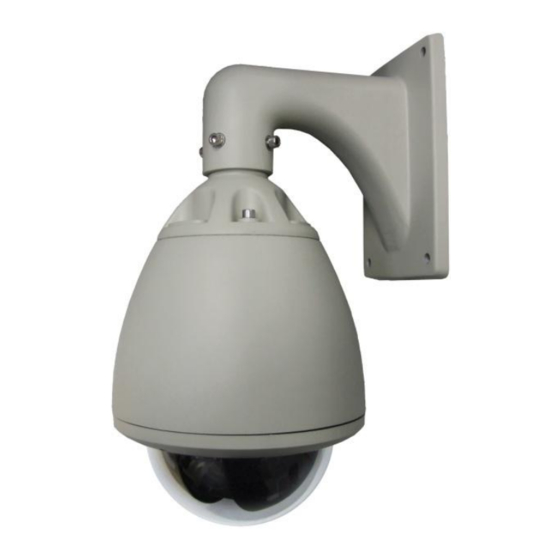

XSD27ZS High Resolution 600 TVL Speed Dome CCTV Camera 27x Optical Zoom User Manual... -
Page 2: Table Of Contents
XSD27ZS Operating Manual Contents 1. PRODUCT INTRODUCTION 1.1 FEATURES …………………………………………………………………………………….……………….… 3 1.2 FUNCTIONS ………………….………………………………………………………………………………..4 1.3 PACKAGED CONTENTS …………………………………………………………………………..……..…. 4 2. INSTALLATION 2.1 INSTALLATION WARNING …………………………………………..…………………………..…..…… 5 2.3 WIRING …………………………………………………………………………………………….…………….. 8 3. OPERATING BASICS 4. MENU SETTINGS 4.1 MAIN MENU ……………………………………………………………………………………………..……. 10 4.2 SYSTEM INFORMATION …………………………………………………………………….…………….. -
Page 3: Product Introduction
XSD27ZS Operating Manual 1. PRODUCT INTRODUCTION 1.1 FEATURES Advanced Pan Tilt Zoom functionality: Automatic recognition for RS 485 control protocol Recognizes 2400, 4800, 9600 Baud Rate (Compatible with PELCO D/P protocols). Complete 360 degree° rotation and 90° vertical rotation allows surveillance without any blind spots ... -
Page 4: Functions
XSD27ZS Operating Manual 1.2 FUNCTIONS Setup of address code: The XSD27ZS allows the user to manually set the camera’s protocols such as its ID address, baud rate and RS485 protocol. Automatic turnover: When the camera reaches its maximum tilt position, by continuing the movement on a PTZ controller, the lens will automatically flip 90°... - Page 5 XSD27ZS Operating Manual 2. INSTALLATION INSTRUCTIONS 2.1 Warning WARNING: This symbol is intended to alert the user to the presence of non-insulated “dangerous voltage”. CAUTION: This symbol is intended to alert the user to presence of important operating and maintenance (Servicing) instructions in the literature accompanying the appliance.
- Page 6 XSD27ZS Operating Manual Prior to installation and use of this product, please observe the following points: Installation and servicing should be carried out by qualified service personnel. It is important that the dome camera is not left in a position where the camera is pointing directly at the sun or other extremely bright light source.
-
Page 7: Wiring
XSD27ZS Operating Manual 2.1 Wiring Connections: RS485 Connection: Ensure that the camera and PTZ controller/keyboard/DVR are connected by a suitable CAT-5 cable. If you have more than 1 dome please set incremental addresses for each camera. Please ensure that the camera’s setting (i.e. Baud Rate, Camera ID etc.) match/correspond between the Speed Dome and controlling... -
Page 8: Operating Basics
XSD27ZS Operating Manual 3. OPERATING BASICS To control the PTZ functions you will need use a compatible PTZ joystick/keyboard controller/DVR. These instructions are based upon Xvision’s XSDZ-3DM Speed Dome Joystick controller. Please Note: PTZ joystick/Controller manufacturers may have different operational configurations. -
Page 9: Menu Settings
XSD27ZS Operating Manual 4. MENU SETTINGS 4.1 Main Menu The items in the main menu are listed below as follows: SYSTEM INFORMATION: Displays the camera’s general information ADDR SETTING: Camera’s operating protocols MOTION: PTZ Movement Settings ... - Page 10 XSD27ZS Operating Manual The speed domes address type (ADDR TYPR) can set between either SOFT (automatically obtains an address) or HARD (address is physically set via the dip-switches). Once selected press the <OPEN> button to save any changes. Similarly uses the joystick to scroll through the other options to set either the ADDR SOFT or ADDR HARD.
- Page 11 XSD27ZS Operating Manual Follow the same procedure as detailed above to set the RIGHT LIMIT POSITION. Once this is successfully completed the system will automatically revert back to the previous menu. To clear any previous preset positions select the CLEAR FRAME SCAN option and the...
-
Page 12: Patterns
XSD27ZS Operating Manual PRESETS 8: moves Preset position 1 PRESETS 1: moves Preset position 8 FRAME SCAN: Launches a frame scan (horizontal scan) RANDOM SCAN: Launches a random scan AUTO SCAN: Launches an auto scan 4.5 PATTERNS A Pattern allows the user to record a specific path/pattern, displaying the following menu:... -
Page 13: Camera
XSD27ZS Operating Manual 4.6 CAMERA This allows the user to change the parameters for the camera’s lens. The following menu will be displayed: CAMERA DIGITAL ZOOM AUTO IRIS ZOOM SPEED BACK EXIT DIGITAL ZOOM: Manually switch the digital zoom ON or OFF ... -
Page 14: Display Setup
XSD27ZS Operating Manual 4.8 DISPLAY SETUP This option allows the user to configure the type of information that can be displayed on screen during normal operation. The following menu will be displayed: DISPLAY SETUP PRESET LABEL ZOOM P/T DEG BRIGHT DATA...
