XVision XSD27ZIR-2 User Manual

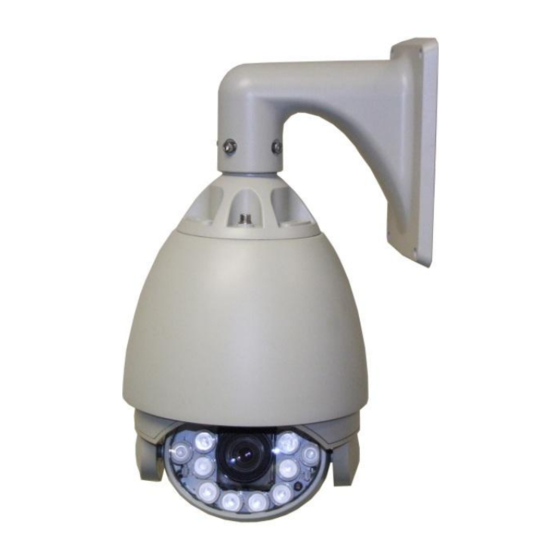

Day/night 600 tvl ir speed dome cctv camera with 27x optical zoom and 100m nightvision
Hide thumbs Also See for XSD27ZIR-2:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XSD27ZIR-2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for XVision XSD27ZIR-2

Summary of Contents for XVision XSD27ZIR-2

  • Page 2: Table Of Contents

    XSD27ZIR-2 Operating Manual Contents 1. PRODUCT INTRODUCTION 1.1 FEATURES …………………………………………………………………………………….……………….… 3 1.2 FUNCTION ……………………………………………………………………………………………………..4 1.3 PACKAGED CONTENTS …………………………………………………………………………..……..…. 4 2. INSTALLATION 2.1 INSTALLATION WARNING …………………………………………..…………………………..…..…… 5 2.1 WIRING …………………………………………………………………………………………….…………….. 7 3. BASIC OPERATION 4. MENU SETTINGS 4.1 MAIN MENU ……………………………………………………………………………………………..……. 8 4.2 SYSTEM INFORMATION …………………………………………………………………….…………….

  • Page 3: Product Introduction

    XSD27ZIR-2 Operating Manual 1. PRODUCT INTRODUCTION 1.1 FEATURES Strong Intelligence Function:  Compatible with PELCO D/P, HIKVISION and DAHUA Multi-protocol  Recognizes 2400, 4800, 9600 Baud Rate  Automatic recognition for RS 485 control protocol  Support 3D Positioning Function for the HIKVISION and DAHUA DVR Strong Horizontal and Vertical Rotation Function: ...

  • Page 4: Function

     Setup of address code: The XSD27ZIR-2 allows the user to manually set the camera’s protocol such as its network address, baud rate and RS485 protocol. Additionally the speed dome camera has the ability to recognize the camera address, baud rate and control protocol automatically.

  • Page 5: Installation Warning

    XSD27ZIR-2 Operating Manual 2. Installation Instruction Warnings WARNING: This symbol is intended to alert the user to the presence of non-insulated “dangerous voltage”. CAUTION: This symbol is intended to alert the user to presence of important operating and maintenance (Servicing) instructions in the literature accompanying the appliance.
  • Page 6 XSD27ZIR-2 Operating Manual Prior to installation and use of this product, please observe the following points:  Installation and servicing should be carried out by qualified service personnel.  It is important that the dome camera is not left in a position where the camera is pointing directly at the sun or other extremely bright light source.

  • Page 7: Wiring

    XSD27ZIR-2 Operating Manual 2.1 Wiring Power supply: DC 24V 2A interface Control cable: RS485 control Video cable: BNC interface 2.1.1 Power supply connection Please check the voltage rating and electric current: Voltage Rating Range of Voltage Rating Electric Current AC 24V / DC 24V ±5%...

  • Page 8: Basic Operation

    3. BASIC OPERATIONS To control the PTZ functions on a speed dome you will need use a compatible PTZ joystick/keyboard controller. These instructions are based upon Xvision’s XSDZ-3DM Speed Dome Joystick controller. Please Note: PTZ joystick/Controller manufacturers may have different operational configurations.
  • Page 9 XSD27ZIR-2 Operating Manual The XSD27ZIR-2 is designed to recognise the following presets: SPECIAL PRESETS FUNCTION Enter main menu 95 + CALL Reserve preset xxx XXX + PRESET Call preset xxx XXX + CALL Delete all presets 83 + CALL Call pattern 1...

  • Page 10: System Information

    XSD27ZIR-2 Operating Manual 4.2 SYSTEM INFORMATION The System Information option displays the speed domes general operating parameters and information and is displayed as follows: SYSTEM INFORMATION 9600, N, 8 ,1 ADDRESS SOFTWARE VERSION V5.2 BACK EXIT Please Note: The options described with the System Information cannot be changed...

  • Page 11: Motion

    XSD27ZIR-2 Operating Manual 4.4 MOTION The Motion option menu is displayed as follows: MOTION < FRAME SCAN> POWER UP NONE PARK TIME PARK ACTION NONE BACK EXIT  < FRAME SCAN>: Allows the user to setup the camera’s maximum left/right position...
  • Page 12 XSD27ZIR-2 Operating Manual Select CLEAR FRAME SCAN to delete any previous presets. Once complete the user will be taken back to the previous. FRAME SPEED SCAN: allows the user to set the movement (i.e. Pan & Tilt) speed. The speed can be set between 1 and 32. Please note the larger the number set the faster the speed.

  • Page 13: Patterns

    XSD27ZIR-2 Operating Manual 4.5 PATTERNS Patterns allows the user to configure/record the speed dome’s predefined movements PATTERN PATTERN NUMBER <PROGRAM PATTERN> CLEAR CURRENT PATTERN CLEAR ALL PATTERN BACK EXIT  PATTERN NUMBER: Choose a pattern number (range between 1-4), as shown by the number highlighted.

  • Page 14: Camera

    XSD27ZIR-2 Operating Manual 4.6 CAMERA This allows the user to change the parameters for the camera’s lens. The following menu will be displayed: CAMERA DIGITAL ZOOM AUTO IRIS ZOOM SPEED BACK EXIT  DIGITAL ZOOM: Manually switch the digital zoom ON or OFF ...

  • Page 15: Alarm Setting

    XSD27ZIR-2 Operating Manual 4.8 ALARM SETTING This allows the user to define the cameras actions when an alarm is triggered the following menu will be displayed: ALARMS ALARM 1 NONE ALARM 2 NONE ALARM 3 NONE ALARM 4 NONE BACK...

  • Page 16: Ir Setting

    XSD27ZIR-2 Operating Manual 4.10 IR SETTING The IR Setting allows the camera’s IR LEDs to be configured and the following menu is displayed: IR SETTING IR MODE AUTO IR ON SENS IR OFF SENS IR IRIS MODE BACK EXIT CURRENT VALUE ...

  • Page 17: Troubleshooting

    XSD27ZIR-2 Operating Manual 5. TROUBLE SHOOTING Trouble Possible Reason Solution No action and image when Power cable is connected Correct the connection power on incorrectly Power Supply is faulty Change Bad connection Eliminate the bad connection Power is not enough...
