XVision XC960BN User Manual

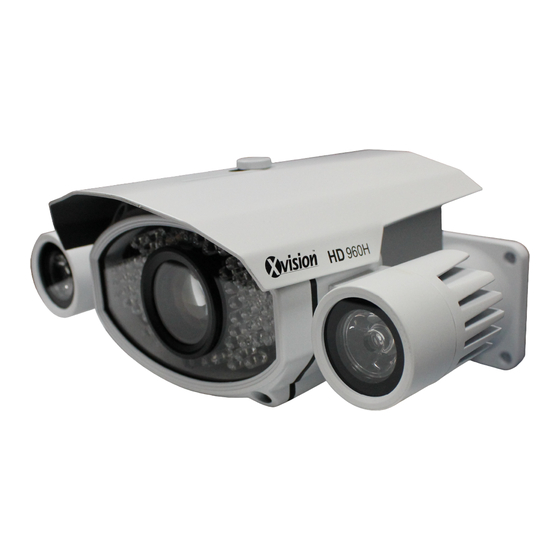

Professional hd 960h long range ir bullet camera - 120m ir night vision
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
HD
960H
Professional HD 960H Long Range
IR Bullet Camera - 120m IR Night Vision
User Manual
Thank you for purchasing the XC960BN camera from Xvision.
Please ensure that you read and understand this User Guide before operating the camera.
Please store this User Guide in an easily accessible location.
Version 1
