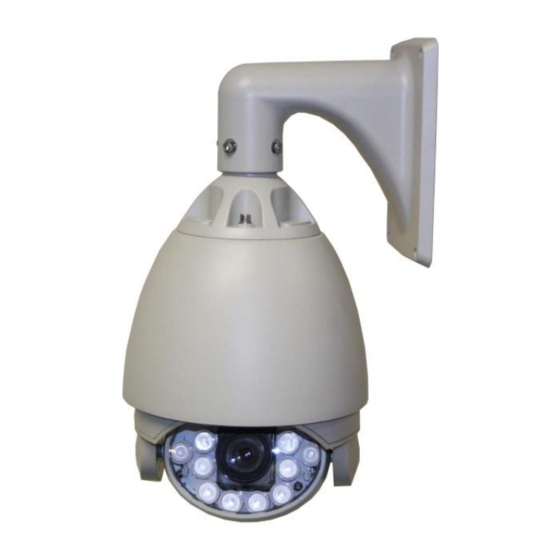

XVision XSD27ZIR-2 User Manual
Day/nigh 600 tvl, ir speed dome cctv camera, 27x optical zoom, 100m night vision
Hide thumbs
Also See for XSD27ZIR-2:
- User manual (15 pages) ,
- User manual (16 pages) ,
- User manual (17 pages)
Subscribe to Our Youtube Channel
Related Manuals for XVision XSD27ZIR-2
Summary of Contents for XVision XSD27ZIR-2
-

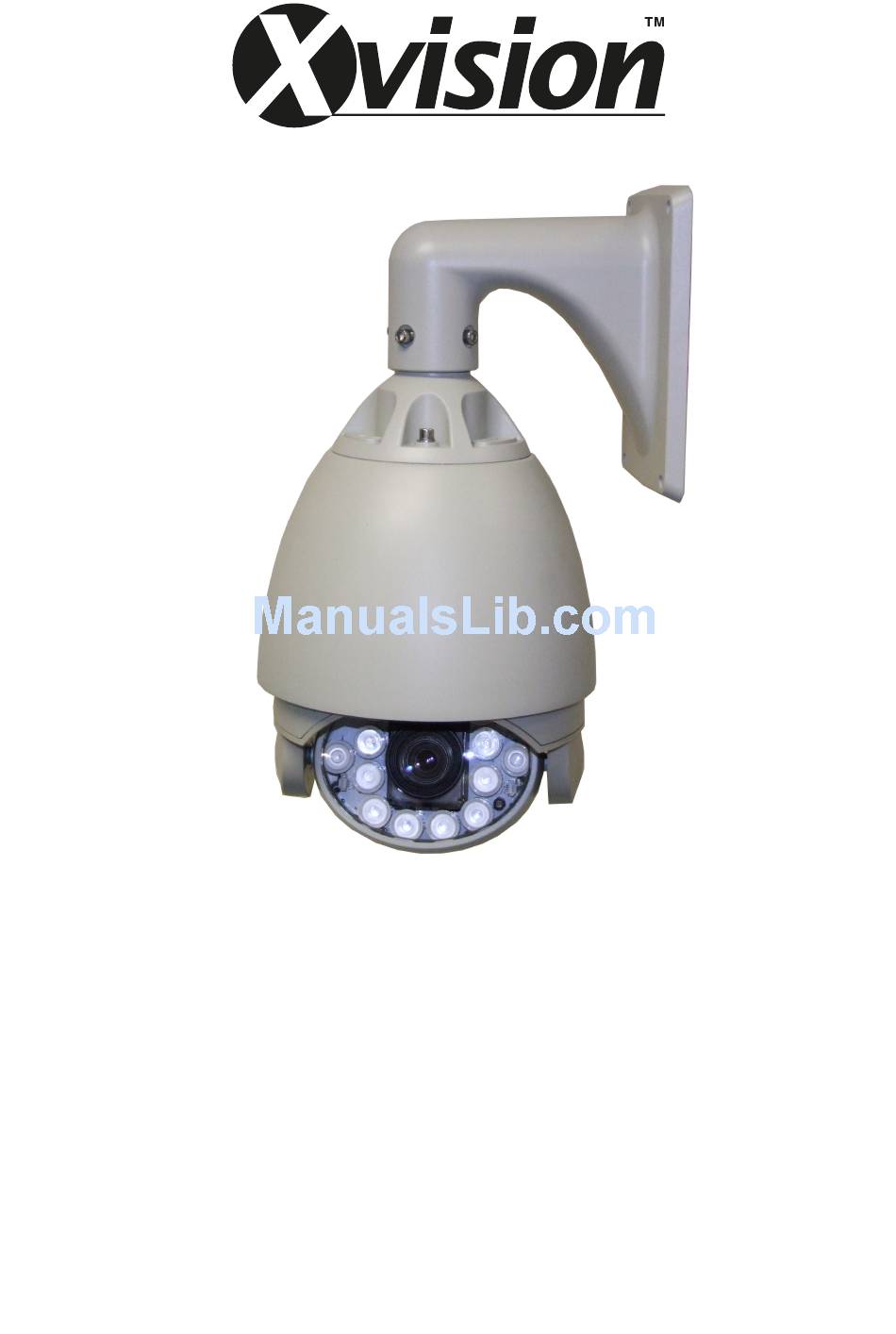

Page 1: User Manual
XSD27ZIR-2 Day/Nigh 600 TVL IR Speed Dome CCTV Camera 27x Optical Zoom 100m Night Vision User Manual... -
Page 2: Table Of Contents
XSD27ZIR-2 - Operating Manual Contents 1. OVERVIEW ............1.1 BRIEF INTRODUCTION AND APPLICATION ..................1.2 PRODUCT FEATURES ................1.3 TECHNICAL INDICATORS 2. HARDWARE INSTALLATION ................................2.1 SETTING OF DIAL SWITCH 2.1.1 POSITION OF DIAL ON SWITCH ................. 2.1.2 ADDRESS SETTING .................... - Page 3 XSD27ZS Operating Manual XSD27ZIR-2 - Operating Manual Contents ................3.3.4 CAMERA SETTING 1 ................3.3.5 CAMERA SETTING 2 ............3.3.6 PRIVACY SHELTER (OPTIONAL) ................3.3.7 INFRARED SETTING ................. 3.3.8 AUXILIARY SETTING ................3.3.9 SCANNING SET ..................3.3.10 TITLE SET ................
- Page 4 XSD27ZS Operating Manual XSD27ZIR-2 - Operating Manual SAFETY CAUTION WARNING: User shall be reminded to avoid the risk including potential deaths or severe injuries. 1. Please do not install this equipment in the environment with too much moisture or dust.
-
Page 5: Overview
OVERVIEW 1.1 BRIEF INTRODUCTION AND APPLICATION The XSD27ZIR-2 can be widely used in the in an area with low light levels, or no light where high-speed monitoring in large scope is required, such as river, forest, road, railway, airport, port, watch, square, park, scenic spot, street, station, large stadium and external boundary of living quarters, etc. -
Page 6: Technical Indicators
XSD27ZIR-2 - Operating Manual 1.3 TECHNICAL INDICATORS Item Technical Indicator Video standard PAL/NTSC Horizontal rotation scope 360° continuous rotation Vertical rotation scope 0° ～ 90° automatic overturn Horizontal operation speed 0.1～ 300° /s Vertical operation speed 0.1～ 240° /s Prese location running 300°... -
Page 7: Hardware Installation
XSD27ZIR-2 - Operating Manual Item Technical Indicator Power-off memory Screen freeze Compatible camera Automatic Identification SONY/HITACH/CNB/SAMSUNG) Protection grade IP66 Lightining protection 3000 V Working temp -35° C ～+60° C HARDWARE INSTALLATION SETTING OF DIAL SWITCH 2.1.1 POSITION OF DIAL ON SWITCH 2.1.2... - Page 8 XSD27ZIR-2 - Operating Manual XSD27ZS Operating Manual Comparison list of address dial switch: Address...
-
Page 9: Power Connection
XSD27ZS Operating Manual XSD27ZIR-2 - Operating Manual 2.1.3 POWER CONNECTION Scope of rated voltage Current Rated Voltage (V) Positive & Negative 10% >4A DC 12V 2.1.4 CONNECTION OF CONTROL LINE PTZ control: RS-485 control line is connected to the control keyboard or DVR. -
Page 10: Operation Instruction
XSD27ZS Operating Manual XSD27ZIR-2 - Operating Manual 3 . OPERATION INSTRUCTION 3.1 MAPPING TABLE FOR PRESET LOCATION Preset Location Function 95+CALL Entering the main menu XXX+PRESET Saving some presetting point XXX+CALL Calling some presetting point 40+CALL Operating the first group of preset location scanning... - Page 11 XSD27ZIR-2 - Operating Manual 58+CALL Saving the setting of the third group of pattern scanning 59+CALL Saving the setting of the third group of pattern scanning 60+CALL Saving the setting of the third group of pattern scanning 61+CALL Operating the first group of pattern scanning...
- Page 12 XSD27ZIR-2 - Operating Manual 82+CALL Closing the privacy shelter grid(for the machines with this function only) 83+CALL Starting backlight compensation (for the movement with this function only) 84+CALL Closing backlight compensation (for the movement with this function only) 85+CALL Starting image freezing function(for the movement with...
-
Page 13: Keyboard Operation
XSD27ZIR-2 - Operating Manual 103+CALL Switching linear scanning speed (fast, slow and medium) 105+CALL Starting digital zoom 106+CALL Closing digital zoom 107+CALL 、108+CALL Calling 107 followed by 108 and restarting the dome 109+CALL Starting communication fault indication 110+CALL Closing communication fault indication 3.2 KEYBOARD OPERATION... -
Page 14: Area Scanning
XSD27ZIR-2 - Operating Manual 3.2.2 AREA SCANNING Setting the area of scanning Setting of the left boundary: dome is controlled to ideal position and preset location 44 is called to set the left boundary of Region 1 Setting of the right boundary: dome is controlled to ideal position and preset location 45 is called to set the right boundary of Region 1 Setting of the scanning speed: see “Menu set->... -
Page 15: Menu Set
XSD27ZIR-2 - Operating Manual XSD27ZS Operating Manual 3.3 MENU SET 3.3.1 BASIC MENU OPERATION 1. Press control on the keyboard or use matrix to execute the command of ‘call 95th preset location’ to enter and set main menu 2. After the main menu page appears, press ‘up or down’ icon to move the cursor to the sub menu option to be set and press ‘right’... -
Page 16: Camera Setting 1
XSD27ZIR-2 - Operating Manual XSD27ZS Operating Manual 3.3.4 CAMERA SETTING 1 1. Zoom Speed: Fast, medium and slow 2. Digital Zoom: On and off 3. White Balance: Automatic, Indoor, outdoor, manual 4. R gain: 0-225 (white balance manually effective) 5. B gain: 0-225 (white balance manually effective) 6. -
Page 17: Infrared Setting
XSD27ZIR-2 - Operating Manual XSD27ZS Operating Manual 3.3.7 INFRARED SETTING 1. Infrared Flexibility: 0-999 2. Infrared Lamp Mode: Automatic, on and off 3. Synchronouse Colour-to-black: On and off 4. Wide Bright: 0-30 5. Enter Tele Bright: 0-100 3.3.8 AUXILIARY SETTING 1. -
Page 18: Title Set
XSD27ZIR-2 - Operating Manual XSD27ZS Operating Manual 3.3.10 TITLE SET 1. Region No.: 1-4 2. X Co-ordinates: X position of title on the screen (0-29) 3. Y Co-ordinates: Y position of title on the screen (0-14) 4. Title: The title content in the current region. Operate “left and right” to select the position and to insert characters. -
Page 19: Troubleshooting
XSD27ZIR-2 - Operating Manual XSD27ZS Operating Manual TROUBLESHOOTING 4.1 TROUBLE SHOOTING TABLE Phenomenon Possible Cause Countermeasures Power damage or insufficient Change it power No action or image after Error connection of power Correct it electrifying line Faults of engineering route...
