XVision XIR621 Instruction Manual

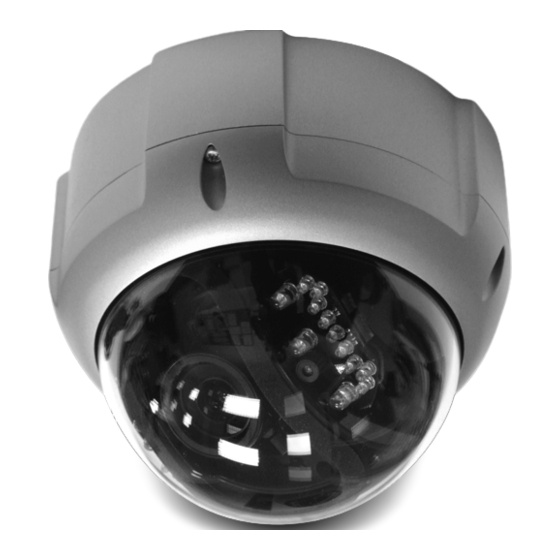

Colour vandal resistant dome camera with 25 meters nightvision
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
XIR621
Model:
Colour 25m Nightvision
Dome Camera

Before you begin

•
Please unpack the box carefully and identify that all the parts are present.
The camera is suitable for indoor or outdoor use. Please bear in mind the following points when
choosing a mounting position.
•
The camera must be positioned so that it will not point directly into the sun (sunrise and
sunset) or any bright light, as this may cause damage to the camera.
•
Avoid viewing areas where half the area is in bright sunlight and the other half is dark,
such as in the shadow of a building. All types of cameras have difficulty in 'seeing' with
such a large lux level variation.
•
Do not cut the camera cables, this will void the warranty.
•
Make sure you use only the recommended power supply. Damage caused to the camera by
incorrect voltage or wiring is not covered by the warranty.
Model:
XIR621
Colour Vandal Resistant Dome
Cameras with 25 metres Nightvision
CCTV

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XIR621 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for XVision XIR621

Summary of Contents for XVision XIR621

  • Page 1: Before You Begin

    CCTV XIR621 Model: Colour 25m Nightvision Dome Camera Before you begin • Please unpack the box carefully and identify that all the parts are present. The camera is suitable for indoor or outdoor use. Please bear in mind the following points when choosing a mounting position.

  • Page 2: Safety Precautions

    Thank you for purchasing this Xvision camera. Before operating this product, please read this instruction manual carefully. 1. Safety Precautions When in use please avoid direct contact with eyes and do not touch the camera body as it can get very hot.
  • Page 3 Smart DNR (Digital Noise Reduction) reduces the noise on the image when viewing in low lux environments (like at night), this reduces the size of the image when being recorded by a DVR, resulting in a saving of disk space. 4. Contents 4x Fixing Screws XIR621 Camera 4x Wall Plugs...

  • Page 4: Installation

    5. Installation 1. Select a suitable position on the wall or ceiling to install the camera. 2. Remove the dome housing from the camera housing by removing the four cross head retaining screws. 3. Secure the camera in the desired ceiling position with the four fixing screws (as shown in Figure 1).

  • Page 5: How To Operate

    6. How to Operate 1. Connect the video output to the monitor or other video device through a 75 Ohms type coaxial cable. 2. Connect the power source, insert the AC plug into the AC socket and the DC plug into the DC Jack (+12V DC in jack centre) (as shown in Figure 3).

  • Page 6: Camera Osd Control

    7. Camera OSD Control Press this Control Action Push DOWN UP, DOWN Select a new item to Setup LEFT, RIGHT Select a menu item menu SETUP (MENU) Access a sub menu 8. OSD Menu Structure SET UP MENU LENS MANUAL SHUTTER MANUAL WHITE BAL...

  • Page 7: Setup Menu Functions

    9. SETUP Menu Functions 1 LENS <Option : DC/MANUAL> Select lens type 2 SHUTTER <Option : OFF / FLK / MANUAL/ ESC> Adjusts shutter settings. Flickerless mode(FLK) reduces on-screen flickering. Electronic Shutter Control(AUTO) adjusts brightness level on screen. Manual mode allows you to adjust the shutter speed from 1/60~1/120,000 of a second(NTSC), or 1/50~1/100,000 (PAL).

  • Page 8: Motion Det

    9. SETUP Menu Functions (continued) INTERNAL = When line lock is not required. LINELOCK = Adjust the vertical phase(VPH) from 000 - 359 (factory default is 0). Line line is only available with 24VAC power. RETURN = Press MENU to return to the SETUP menu. 5 MOTION DET <Option: OFF/ON>...
  • Page 9 9. SETUP Menu Functions (continued) AREA SEL= Select a motion detection grid (top left, top right, bottom left, bottom right) to modify. AREA STATE= Activate or deactivate the selected grid. TOP/DOWN/LEFT/RIGHT= Press LEFT or RIGHT menu control left or right to alter the dimensions of the selected grid. 7 MIRROR <Option: OFF/ON>...

  • Page 10: Special Menu Functions

    10. SPECIAL Menu Functions On the SETUP menu, press the menu control UP or DOWN and then select SPECIAL. Press the SETUP(MENU) control to access the SPECIAL MENU. 1 CAMERA ID <Option: OFF/ON> Display a name and/or number on the monitor. To add a camera title: UP, DOWN, LEFT, RIGHT menu control= Select a character, then press (SETUP) MENU to accept it.

  • Page 11: Specifications

    Model: XIR621 Picture Type: Day/Night (B/W & Colour) Image Sensor: Sony 1/3” Ex View CCD DSP: Xvision X3 DSP Software & Samsung DSP Chip Resolution: 550 TVL Lens Viewing Angle: 26 to 92° Infra Red Nightvision: 25 metres Minimum Illumination: 0 Lux (IR On) / 0.002 Lux...

  • Page 12: Technical Support

    CCTV TECHNICAL SUPPORT: For Technical Support for any Xvision product please contact your local distributor. LIMITED WARRANTY: This product is supplied with a limited 3 Year warranty. The Warranty excludes products that have been misused, (including accidental damage) and damage caused by normal wear and tear. In the unlikely event that you encounter a problem with this product, it should be returned to the place of purchase.
