Summary of Contents for XVision XC960BA

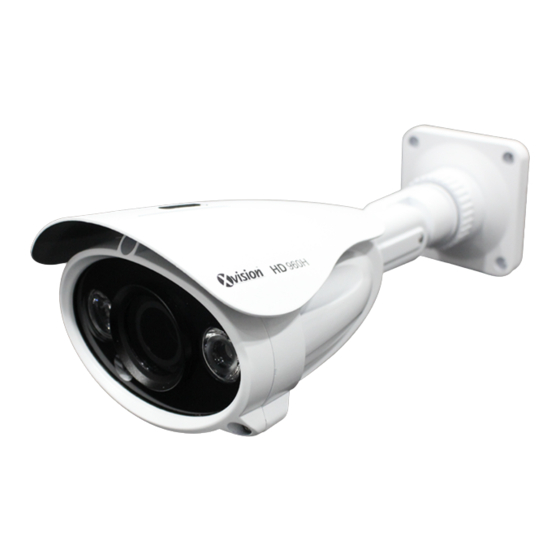

- Page 1 Professional HD 960H Bullet Camera with 60m IR Night Vision User Manual Thank you purchasing the XC960BA camera from Xvision. Please ensure that you read and understand this User Guide before operating the camera. Please store this User Guide in an easily accessible location.
-
Page 2: Table Of Contents
XC960BA 960H Contents 1. Product Overview .................. 1.2 Package Contents ................2. Installation .................... 3. How to Operate the Camera ..............4. Camera Menu ..................4.1 Lens ....................4.2 Exposure ..................4.3 White Balance ................4.4 Backlight ..................4.5 Day/Night .................. - Page 3 XC960BA 960H Safety Precautions 1. Do not install the equipment in an environment with too much moisture, dust or smoke dust as this may result in fire or electric shock. 2. In the unlikely event that the equipment should malfunction and emit an abnormal smell or smoke, please immediately stop it, shut off the power and contact your supplier.
-
Page 4: Product Overview
960H 1. Product Overview 1. Product Overview Thank you for purchasing the HD 960H XC960BA from Xvision. Please read through this manual carefully and make sure you understand before operating the camera. 1.1 Features • Up to 60m Smart IR Night Vision •... -
Page 5: Installation
1. Product Overview 2. Installation The XC960BA camera can be wall or ceiling mounted. To install the camera, please follow the steps below. 1. Firstly, if installing the camera outside, you will 2. Then, place the installation stencil on the... -
Page 6: How To Operate The Camera
XC960BA 960H 1. Product Overview How to Operate the Camera DC Socket for power BNC Socket for video To operate the camera, firstly you will need to connect the BNC and DC sockets to the BNC and DC sockets of a power supply and DVR or Monitor. If you wish to extend the cables, you can connect the DC and BNC Sockets to the BNC/DC of a PNP cable/RG59 cable. - Page 7 XC960BA 960H 4.1 Lens Option: DC / Manual Select the lens type from either DC or Manual. Use the joystick to navigate between the options and when on the desired option, press the joystick in to select. Both options have a sub-menu as follows: DC: Brightness - adjust the brightness of the image between 0-255.
- Page 8 XC960BA 960H 4.4 Backlight Option: Off / BLC / HLC This option allows you adjust the advance backlight settings, giving the following options; Backlight Compensation (BLC), Highlight Compensation (HLC), Day/Night, Black & White mode, EXT and Colour Mode. BLC: Select this option to allow objects in front of bright lights to be seen clearer, by making the background darker.
- Page 9 XC960BA 960H 4.6 DPC Option: Start / DPC View / LS Value / Diff / Area Start: Once selected, you will be asked to cover the lens and press the joystick in. Please note that this is for factory use only, if initiated power the camera down and then power the camera to back up.
- Page 10 XC960BA 960H 4.7 Special Continued... Park Line: Turn the park line function on or off. This feature all the user to set on-screen parking lines for vehicle use. If turned on, you will be presented with the following options to adjust the parking lines’...
- Page 11 XC960BA 960H Model XC960BA Picture Type Day/Night (B/W & Colour) Image 1/3” SONY Super HAD II CCD 960H Resolution 960H Minimum Illumination O Lux (IR On) Night Vision 50-60m IR Night Vision Lens 2.8 - 12mm Motion Detection Mirrored Image...
- Page 12 XC960BA 960H 1. Product Overview Notes www.xvision.com...
- Page 13 XC960BA 960H www.xvision.com...
- Page 14 (including accidental damage) and damage caused by normal wear and tear. In the unlikely event that you encounter a problem with this product, it should be returned to the place of purchase. Xvision UK, Unit 2 Valley Point, Beddington Farm Road, Croydon, Surrey CR0 4WP www.xvision.com...
