Marshall Electronics V-LCD8P-02 Manual

Marshall Electronics
7.9" LCD Panel with NTSC/PAL Auto Detect
MENU/SELECT
Part No.
Size
Active Area
Input Signal
Format
Pixel Config.
Dimensions
Color
Back Light
Controls
Supply Voltage

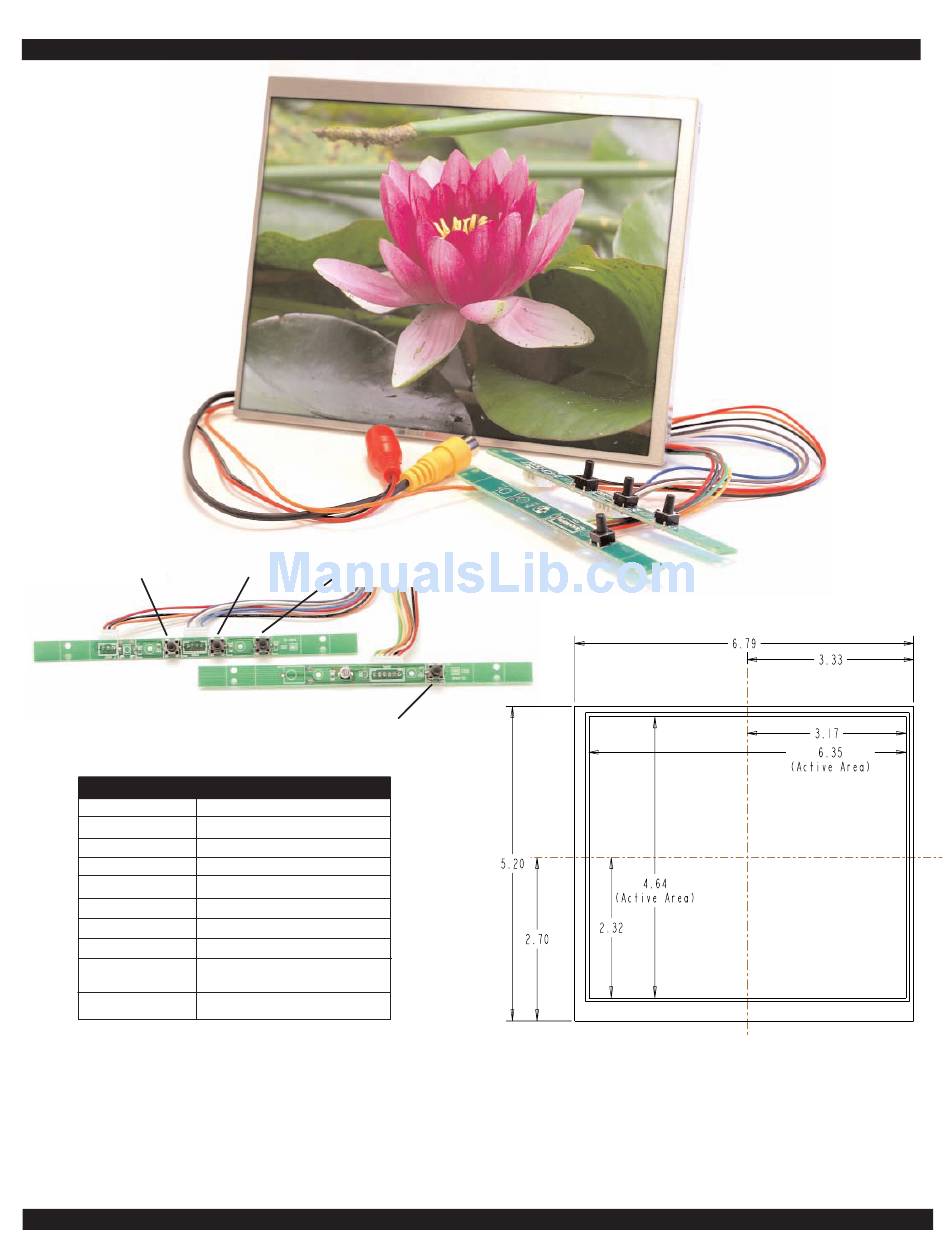

To operate unit, supply 12VDC @600mA of power (Marshall V-PS12-1000, not included) into the red coaxial power jack.
Supply an NTSC or PAL composite video signal to the yellow RCA connecter. The panel comes with two boards that
have buttons mounted on them. The board with the single button is the ON/OFF switch. The other button board has
three buttons, the first button is MENU/SELECT and the second and third buttons are UP and DOWN, respectively. The
panel automatically detects if the signal is NTSC or PAL. To adjust the picture, press the MENU/SELECT button and use
the on-screen display to access contrast, color, and tint. To adjust the brightness, press the UP and DOWN buttons with-
out being in the on-screen menu. For mounting dimensions see above.
UP DOWN
POWER
V-LCD8P-02
7.9" Diagonal
6.35"H x 4.64"V
NTSC/PAL Auto
1440 x 468 Pixels
Stripe
6.79"W x 5.20"H x 0.27"D
Full Color
Built-in
Color, Brightness,
Contrast, Tint via OSD
12VDC, 1.0A
