Page 1: Operating Instructions

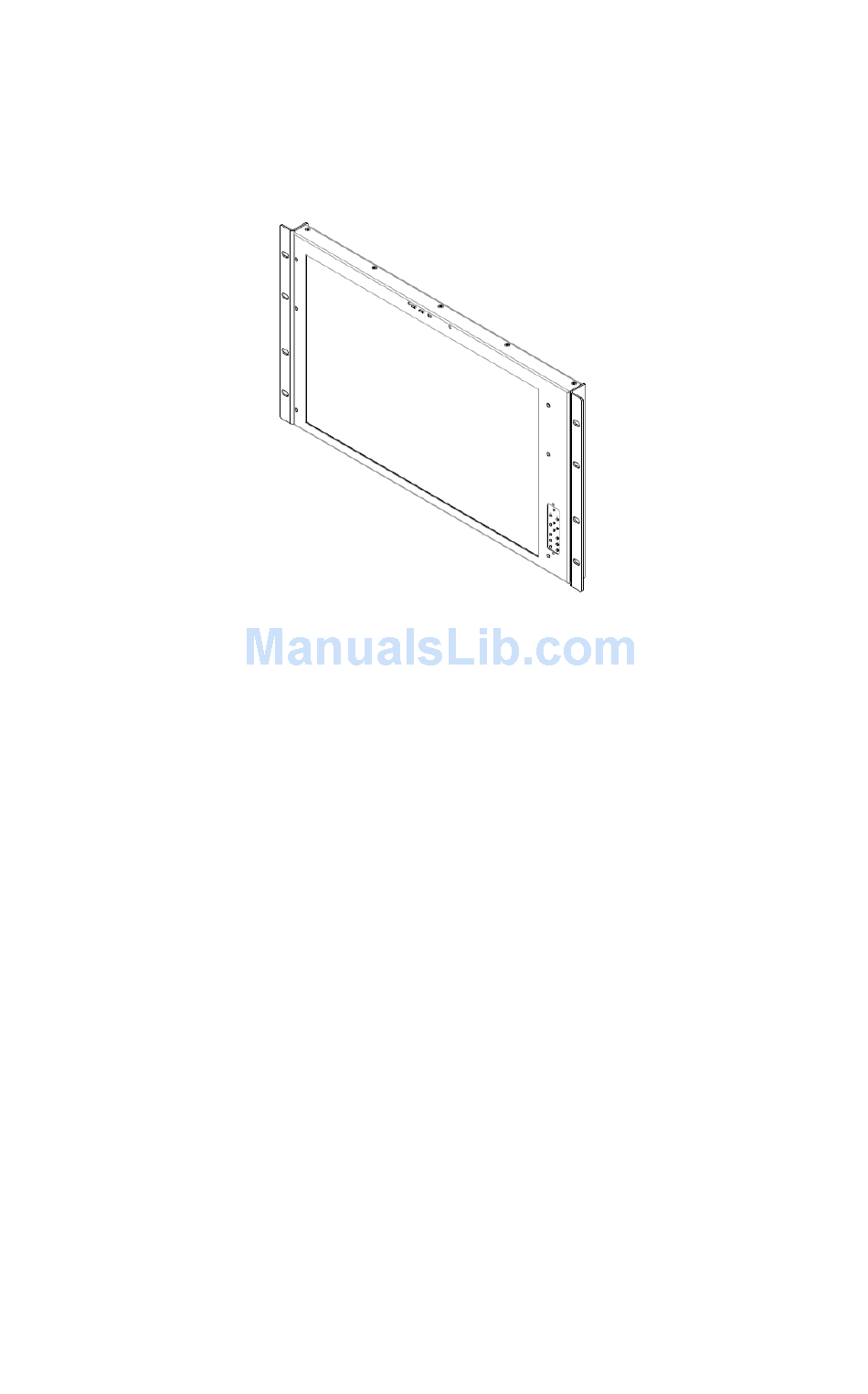

Marshall Electronics V-LCD17HR Model No. Rack Mountable High Definition LCD Monitor Operating Instructions Edition 2 Revision 1W... - Page 2 This page intentionally left blank...
-
Page 3: Table Of Contents
Table of Contents Installation and Initial Setup ------------------------------------------------------------------------------------------------------4 Top and Front Panel Features ----------------------------------------------------------------------------------------------------5 Rear Panel Features-----------------------------------------------------------------------------------------------------------------6 Compatible Input Formats---------------------------------------------------------------------------------------------------------6 MAIN MENU AND NAVIGATION--------------------------------------------------------------------------------------------------7 VIDEO CONFIGURATION SUBMENU..............................7 MARKER CONFIGURATION SUBMENU ..............................8 FILTER CONFIGURATION SUBMENU..............................11 SYSTEM CONFIGURATION SUBMENU ..............................12 FUNCTION PRESETS SUBMENU ................................12 IMD CONFIGURATION ..................................13 SYSTEM INFORMATION SUBMENU ..............................13 Specifications ----------------------------------------------------------------------------------------------------------------------- 15... -
Page 4: Installation And Initial Setup
■ The V-LCD17HR can be mounted in any standard EIA 19” equipment rack. The attached rack ears can be angled to provide the user control over the viewing angle. Adequate ventilation is required when installed to prevent possible damage to the monitor’s internal components. Please see the Dimensions section for more information. -
Page 5: Top And Front Panel Features
Top and Front Panel Features LED Tally Power Button Three LED tally lights (yellow, red, green) are available above the screen. Use the power button to toggle between ON and STANDBY modes. In both the STANDBY and the ON state, the LED on the button will illuminate bright green. This indicates that MAIN power is applied to the unit. -
Page 6: Rear Panel Features
A variety of external devices can be used to perform The PROG port is a Service / Upgrade port only. Please contact Marshall Electronics the contact closure. No additional power should be supplied to the HD-15 port. -
Page 7: Main Menu And Navigation
MAIN MENU AND NAVIGATION Access the main menu by pushing and holding the MENU button on the front panel of the monitor. •Step through menu items using the ▲ and ▼ buttons. •Choose a submenu or select a menu item by pressing SELECT. •Return to the previous menu by pressing MENU. -
Page 8: Marker Configuration Submenu
Alternately, the image adjustment buttons (Brightness, Color, Tint, Contrast) can be used to easily adjust the bias and gain settings as shown below. The buttons affect whichever row of controls (gain or bias) is currently selected. ■ Check Field Use the check field modes for monitor calibration or to analyze individual color components of an image. In Monochrome mode, all color is disabled and only a grayscale image is shown. -
Page 9: Marker Enable
Marker Configuration Submenu ■ Marker Enable Use this setting to enable or disable all on-screen markers. This setting affects the center marker, full screen markers, 16:9 markers and 4:3 markers. ■ Center Marker Use this setting to display a center marker on the screen. ■... - Page 10 ■ Marker Background Use this setting to choose how selected markers are displayed on the screen. : • 0% The marker is superimposed on the complete image. • 25% Image area beyond the marker is shown at 25% intensity. • 50% Image area beyond the marker is shown at 50% intensity.
-
Page 11: Filter Configuration Submenu
FILTER CONFIGURATION SUBMENU ■ False Colors This monitor has a false color filter to aid in the setting of camera exposure. As the camera Iris is adjusted, elements of the image will change color based on the luminance or brightness values. This enables proper exposure to be achieved without the use of costly, complicated external equipment. To best utilize this feature, you must understand the color chart below and have a basic understanding of camera exposure. -
Page 12: System Configuration Submenu
Use this option to change the curtain color on the monitor. This curtain color is what you see when there is no signal input to the monitor. ■ Splash Screen Use this option to enable or disable the Marshall Electronics Inc. splash screen seen when the monitor is first powered on. ■ Freeze Use the Freeze function to “freeze”... -
Page 13: Imd Configuration
IMD CONFIGURATION ■ Text Enable Use the Text Enable function to turn the MD Text feature ON. This will cause the Text String to appear on the lower portion of the screen. ■ Text String Use this field to enter your own 16 character string on the screen. ■... - Page 14 ■ Input (Slot 1) This shows your module type and the firmware version of your module. If no module is present, the word EMPTY will appear in parentheses.
-
Page 15: Specifications
Specifications PANEL Activation requires contact closure of pin to ground on the HD-15 ■ connector: Screen Size 17.3” Diagonal Pixels 1920 x RGB x 1080 Viewing Angle (LR x UD) 160° x 150° Brightness 300 cd/m2 Contrast Ratio 650:1 ELECTRICAL ■... - Page 18 This page intentionally left blank...
- Page 19 This page intentionally left blank...
-
Page 20: Maintenance
This warranty is extended to the first consumer only, and proof of purchase is necessary to honor the warranty. If there is no proof of purchase provided with a warranty claim, Marshall Electronics reserves the right not to honor the warranty set forth above.
