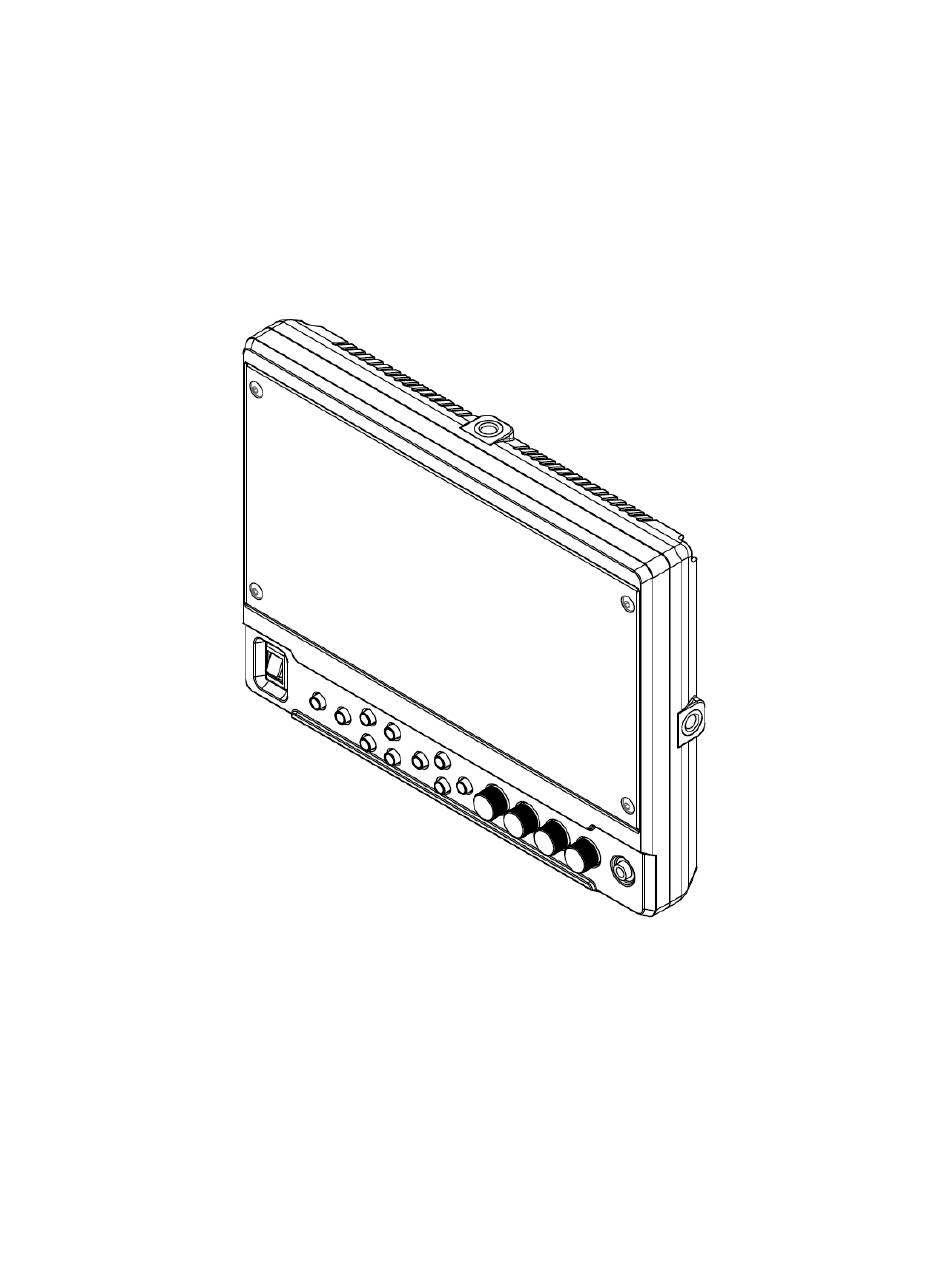

- Page 1 Marshall Electronics V-LCD70MD Model No. 7” Camera-Top Monitor with Modular Input/Output Operating Instructions Edition 3 Revision 7W...
- Page 2 This page intentionally left blank...
-
Page 3: Table Of Contents
Table of Contents Installation and Initial Setup ------------------------------------------------------------------------------------------------------5 Top and Front Panel Features ----------------------------------------------------------------------------------------------------6 Rear Panel Features-----------------------------------------------------------------------------------------------------------------7 Compatible Input Formats---------------------------------------------------------------------------------------------------------8 MAIN MENU AND NAVIGATION--------------------------------------------------------------------------------------------------9 Using the menu buttons..................................9 Using the RotoMenu (BRIGHT) knob..............................9 Scaling Submenu ....................................10 Color Submenu....................................13 Markers Submenu ....................................15 Filters Submenu....................................17 Audio Submenu ....................................22 Signal Analysis Submenu ..................................23... - Page 4 This page intentionally left blank...
-
Page 5: Installation And Initial Setup
Inspect the unit for any physical damage that may have occurred during shipping. Should there be any damage, immediately contact Marshall Electronics at (800) 800-6608. If you are not located within the continental United States, call +1 (310) 333- 0606. -
Page 6: Top And Front Panel Features
Top and Front Panel Features Power Button adjustment parameter is shown on the bottom left of the screen, with values ranging from 0 to 100. Pressing a knob Turn the display ON or OFF by pressing the power button. In once displays the current value. -
Page 7: Rear Panel Features
NOT pass through HDCP protected content. See Compatible Input Formats for details on accepted formats. Upgrade Port For upgrade / debugging purposes ONLY. Please contact Marshall Electronics before attempting to use this port. -
Page 8: Compatible Input Formats
Compatible Input Formats MD-3GE 525i/60, 625i/50 720p/25, 29.97, 30, 50, 59.94, 60 1080p/23.98, 23.98sF, 24, 24sF, 25, 29.97, 30 1035i/59.94, 60 1080i/ 50, 59.94, 60 3G – Level A YCbCr, RGB 1080p/ 60, 59.94, 50 MDO-3G (converted from HDMI to SDI) 720p/ 50, 59.94, 60 1080p/23.98, 24, 25, 29, 30 1080p/50, 59.94, 60... -
Page 9: Main Menu And Navigation
Using the RotoMenu (BRIGHT) knob The Marshall Electronics RotoMenu concept has been brought to our line of camera top monitors to make navigating the Main Menu easier than ever. To RotoMenu functionality has been integrated into the BRIGHT knob, so that whenever the Main Menu is up, •... -
Page 10: Scaling Submenu
Scaling Submenu Use the Scaling submenu to adjust various scaling options and to allow greater control of how your video signal is shown on the display. Scaling Submenu Input Crop ■ Enable the Input Crop function to select the area of active video that you would like shown on the image display. Select the desired Input by accessing the Adjust option below the main function: Adjust Use the BRIGHT knob to move the selection box LEFT and RIGHT. - Page 11 When you are satisfied with the position, press the SELECT button or press the BRIGHT knob to confirm your selection. The new cropped selection will be displayed on the screen. If your Aspect Ratio is set to AUTO, the monitor will select the closest aspect ratio to the dimensions of your customized Input.
- Page 12 Custom Aspect Ratio selection Pixel-to-Pixel ■ Use this setting to enable Pixel-to-Pixel mode. This mode bypasses the monitor’s internal scaling function and displays images in their native resolution and aspect ratio, with a one-to-one mapping of incoming image pixels to screen pixels: •...
-
Page 13: Color Submenu
The outer square represents the entire image and the inner grey box represents your current Pixel to Pixel selection. Use the COLOR knob to move your selection LEFT and RIGHT. Use the CONTRAST knob to move your selection UP or DOWN. Press the SELECT button or the ROTOMENU knob to lock in your selection. - Page 14 When selecting the RGB Bias and Gain submenu, bias adjustment indicators will appear at the top of the screen, and gain adjustment indicators will appear at the bottom of the screen: Use the ▲ and ▼ buttons to select each individual bias or gain control. Highlighting the BIAS or GAIN icons enables a group change of the Red, Green and Blue color components, respectively.
-
Page 15: Markers Submenu
Color Space ■ Use this setting to automatically detect (Auto) or select the color space (RGB or YCrCb) of incoming HDMI video. This should match the color space of the video output settings on your playback device. Markers Submenu Use the Markers submenu to select various types of markers and settings in 4:3, 16:9, or Full Screen mode. Markers Submenu Marker Enable ■... - Page 16 Marker Selection ■ Use this setting to adjust and view the settings of 1 of 2 available markers. Presets ■ Use this setting to superimpose one of 13 markers on the screen or 1 custom setting. This setting is disabled when the Pixel-to-Pixel mode is enabled.
-
Page 17: Filters Submenu
Line Color ■ Use this setting to select a custom color for the Screen Markers. You can choose between White (default), Yellow, Red, Green and Blue. Transparency ■ Use this setting to select the transparency of the marker background. Choose between 0% (black) , 25%, 50%, 75% and 100% (see through) transparency. - Page 18 Adjust the Contrast knob until an even grayscale appears along the top bars. Disable Monochrome mode. Enable Blue Check Field mode and adjust the Color knob so that the outermost bars (white and blue) appear to match in brightness. Disable Blue Check Field mode.
- Page 19 False Color ■ This monitor has a false color filter to aid in the setting of camera exposure. As the camera Iris is adjusted, elements of the image will change color based on the luminance or brightness values. This enables proper exposure to be achieved without the use of costly, complicated external equipment.
- Page 20 Peaking (Focus assist) ■ The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. You can turn the Peaking filter ON and adjust the Threshold and Color by accessing the Adjust function. Use the BRIGHT knob to adjust the Threshold.
- Page 21 In the image above, the Lower Threshold has been set to 20 IRE (Red). This means that any part of the image UNDER 20 IRE will be “colored” in RED. Also, the Upper Threshold has been set to 90 IRE (Yellow). This means that any part of the image OVER 90 IRE will be “colored”...
-
Page 22: Audio Submenu
Audio Submenu Use the Audio Submenu to enable and adjust the various Audio functions available. Volume ■ Use this function adjust the volume of the Headphone jack audio signal. Mute ■ Use this function to Mute (ON) or Unmute (OFF) the audio output from the Headphone jack. Channels ■... -
Page 23: Signal Analysis Submenu
Signal Analysis Submenu Use the Video Configuration submenu to select various video settings such as monochrome mode or blue-only mode. Signal Analysis Submenu Enable ■ Use this setting to enable the signal analysis instruments selected in the Layout mode. Layout ■... -
Page 24: User Settings Submenu
User Settings Submenu Use the User Settings submenu to customize User Settings and Function buttons on the monitor’s keypad for easy access to frequently used features. Save State ■ Use this setting to save the state of the monitor to 1 of 6 available slots. Load State ■... - Page 25 • Marker Width Toggle through On-Screen Marker widths • Marker Color Toggle through On-Screen Marker colors • Marker Transparency Toggle through Marker Background Transparency settings • Check Field Toggle through Check Field options • False Color Enable/disable False Color filter •...
-
Page 26: System Submenu
*Raising the backlight value will increase the amount of current used by the monitor, which will reduce battery time. Splash Screen ■ Use this setting to save the enable (ON) or disable (OFF) the “Marshall Electronics, Inc.” splash screen on monitor power up. Curtain Color ■... - Page 27 Menu Time-Out ■ Use this setting to set the Menu Time-Out length. Select between 10-30 seconds (5 second increments) or Off to disable automatic Menu Time-Out. Version ■ Use this function to view the current Firmware versions of all monitor components.
-
Page 28: Specifications
Specifications PANEL ELECTRICAL ■ ■ Screen Size 7” Diagonal Power Consumption 1.0A @ 12VDC (10 W) Display Area (h x v) 153.6 x 90 mm Voltage Requirement 12 VDC Pixels 1024 x RGB x 600 Viewing Angle(h x v) 170° x 170° Brightness 800 cd/m2 MECHANICAL... -
Page 29: Dimensions
Dimensions... -
Page 30: Maintenance
This warranty is extended to the first consumer only, and proof of purchase is necessary to honor the warranty. If there is no proof of purchase provided with a warranty claim, Marshall Electronics reserves the right not to honor the warranty set forth above. - Page 31 This page intentionally left blank...
- Page 32 Marshall Electronics, Inc. 1910 East Maple Ave. El Segundo, CA 90245 Tel: (800) 800-6608 / (310) 333-0606 • Fax: 310-333-0688 www.LCDRacks.com • sales@lcdracks.com...
