Marshall Electronics V-LCD8-PRO Instruction Sheet

M a a r r s s h h a a l l l l M
E E l l e e c c t t r r o o n n i i c c s s

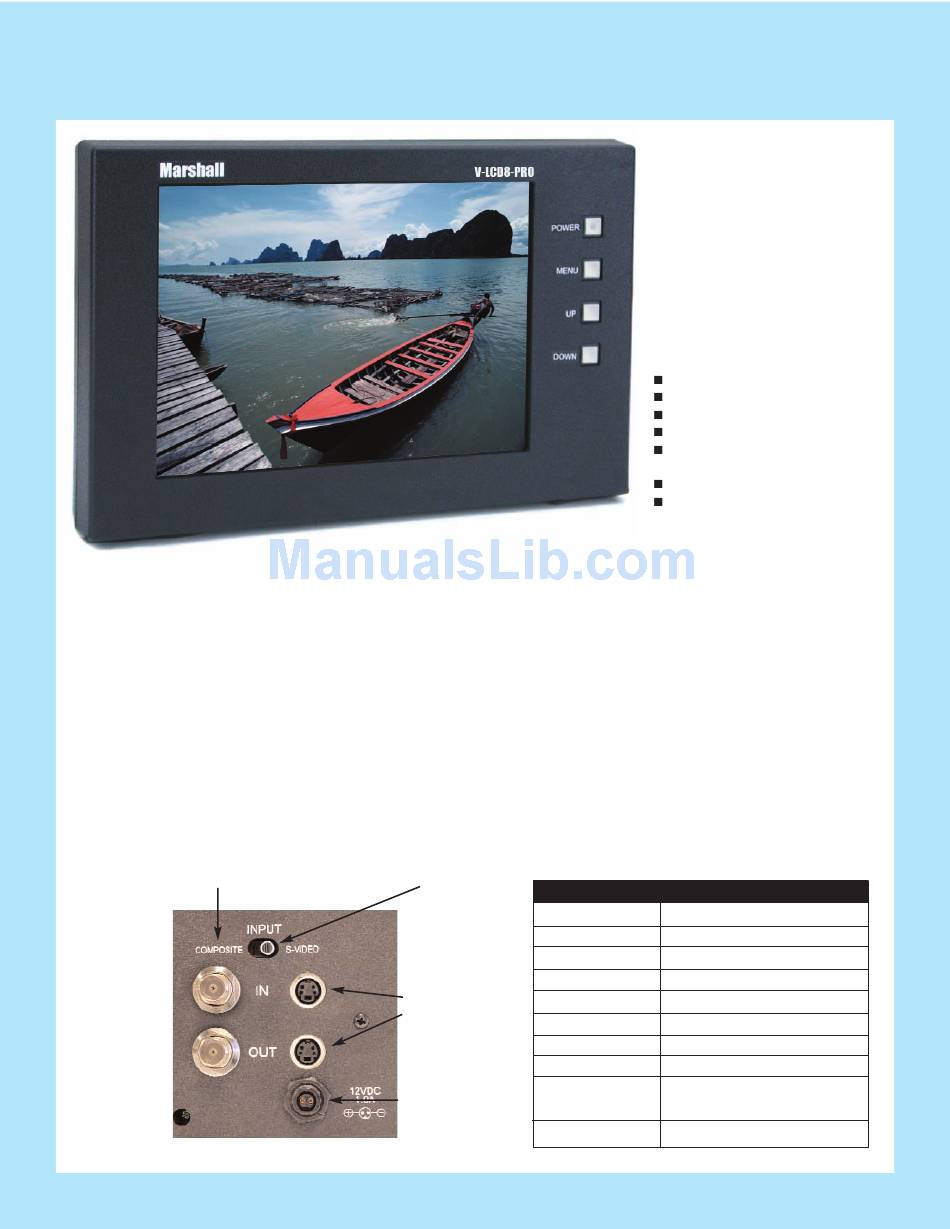

The V-LCD8-PRO is a stand-alone monitor with a large 7.9" active matrix LCD panel built into a rugged plastic enclosure. Its sleek
design makes it ideal for any indoor or outdoor mobile monitoring application. It has a 1/4-20 mount located on the bottom of the unit
for mounting purposes. The unit has 1 composite and 1 S-Video input, both with active loop through capability. This unit is also
equipped with our new bayonet locking 12VDC power supply, ensuring that the power to the unit will not come undone while being
handled. The unit is NTSC/PAL auto recognition and has an on-screen display to access color, tint, contrast and brightness controls.
Advanced features include reverse horizontal and/or vertical scan, to access these functions see the back of this page.
To operate the unit:
1) Each LCD Panel comes with a protective plastic film that must be removed by carefully lifting the film from the corner and
peeling it off. Be certain not to apply any pressure on the LCD panels, they are fragile and can break. Scratched, cracked or
broken LCD screens are not covered by our warranty.
2) Supply the unit with either a composite or S-Video source. Be certain that the selector switch is moved to the correct
position; composite or S-Video
3) Connect the power supply and press the POWER button on the front of the unit. If no signal is detected, the unit will display a
blue screen with the NO SIGNAL message in the middle of the screen.
Professional
BNC Connectors
Input Selector
Switch
Active Loop
through Outputs
New Bayonet
Locking Power
Input
http://www.LCD Racks.com / e-mail: sales@mars-cam.com
V-LCD8-PRO Instruction Sheet
Plastic cabinet with 1/4-20 mount
Bright and vivid color picture
Slim, portable design
Low power consumption
Accepts composite and S-Video
each with loop through
NTSC/PAL auto recognition
Weighs only 0.78kg
Part No.
Size 7.9" Diagonal
Active Area 6.35"H x 4.65"V
Input Signal NTSC / PAL auto rec.
Format 1400 x 468 Pixels
Pixel Config. Stripe
Dimensions 9.50"W x 6.37"H x 1.50"D
Color Full Color
Back Light Built-in
Controls Color, Brightness,Contrast
and Tint via OSD
Supply Voltage 12VDC, 1.0A
V-LCD8-PRO
