Marshall Electronics
V-LCD70XHB-HDA
Model No.
V-LCD70XHB-HDMIPT
Model No.
V-LCD70XHB-3GSDI
Model No.

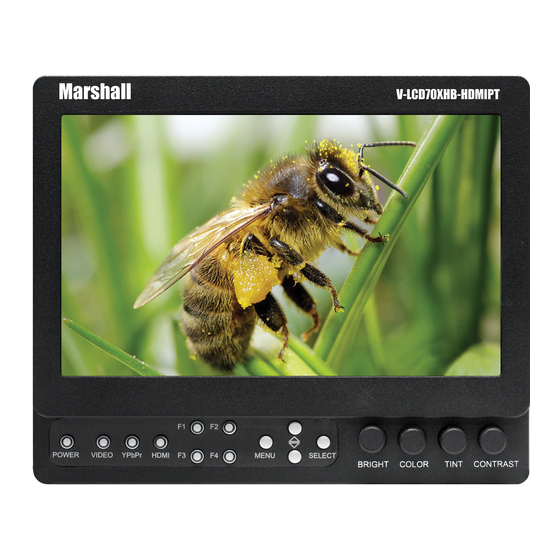

7" Portable Field / Camera-Top Monitor
Operating Instructions
Marshall Electronics, Inc.
1910 East Maple Ave.
El Segundo, CA 90245
Tel: (800) 800-6608 / (310) 333-0606 • Fax: 310-333-0688
www.LCDRacks.com
•
sales@lcdracks.com
511v2
28
1
Advertisement
Table of Contents
Related Manuals for Marshall Electronics V-LCD70XHB-HDA
Summary of Contents for Marshall Electronics V-LCD70XHB-HDA
-
Page 1: Operating Instructions
Model No. V-LCD70XHB-HDMIPT Model No. V-LCD70XHB-3GSDI Model No. 7” Portable Field / Camera-Top Monitor Operating Instructions Marshall Electronics, Inc. 1910 East Maple Ave. El Segundo, CA 90245 Tel: (800) 800-6608 / (310) 333-0606 • Fax: 310-333-0688 www.LCDRacks.com • sales@lcdracks.com 511v2... - Page 2 This warranty is extended to the first consumer only, and proof of purchase is necessary to honor the warranty. If there is no proof of purchase provided with a warranty claim, Marshall Electronics reserves the right not to honor the warranty set forth above.
-
Page 3: Table Of Contents
Contents Dimensions Installation and Initial Setup ..............................4 Front and Side Monitor Features............................6 Rear Monitor Features ................................7 Compatible Input Formats..............................8 Menu Overview ..................................9 Main Menu and Navigation..............................11 Video Configuration Submenu ............................11 Marker Configuration Submenu ............................ 16 Filter Configuration Submenu ............................ -
Page 4: Installation And Initial Setup
Inspect the unit for any physical damage that may have occurred during shipping. Should there be any damage, Brightness 800 cd/m immediately call Marshall Electronics Customer Service at (800) 800-6608. If you are not located within the continental Contrast Ratio 600:1 ■... - Page 5 System Information Submenu System Information System V3.xx Keypad vx.xx Module (3GSDI) vx.xx System Information Submenu ■ System This shows the System firmware version of your monitor. ■ Keypad This shows the Keypad firmware version of your monitor. ■ Module This shows your module version (HDMIPT or 3GSDI) and the firmware version of your module.
-
Page 6: Front And Side Monitor Features
Four user-definable function buttons can be used for Accessory / Service Connector • Underscan direct access to various settings. Functions are This connector is for Marshall Electronics’ line of V- • H/V Delay assigned using the on-screen menu. LCD accessories and for monitor service. Please •... -
Page 7: Rear Monitor Features
DC sources supplying at least 1 Amp at 12 Volts. Module Slot This area is intended for the Marshall Electronics’ V- IMPORTANT: If using a power source other than the LCD70XHB modules, which are factory installed. -
Page 8: Compatible Input Formats
Compatible Input Formats ■ Contrast / Backlight Use this feature to choose between controlling the Contrast of the image or the intensity of the panel’s Backlight with the CONTRAST knob on your monitor. Note: While the Contrast control moves up and down at intervals of 1, the The following standards are supported by the V-LCD70XHB monitors: Backlight control will move up and down at intervals of 2, from 0-100. -
Page 9: Menu Overview
Use this option to change the curtain color on the monitor. This curtain color is what you see when there is no signal input to the monitor. ■ Splash Screen Use this option to enable or disable the Marshall Electronics Inc. splash screen seen when the monitor is first powered... - Page 10 Filter Configuration Submenu Input Format On, Off, 5 sec ■ False Colors Blue, Green, Black Curtain Color The V-LCD70XHB has a false color filter to aid in the setting of camera exposure. As the camera Iris is adjusted, Splash Screen On, Off elements of the image will change color based on the luminance or brightness values.
-
Page 11: Main Menu And Navigation
Main Menu and Navigation 2. Use the BRIGHT, COLOR, TINT and CONTRAST knobs to move the LEFT, RIGHT, TOP and BOTTOM borders of the safe area to your desired position. When you have reached the desired location for the borders, press the MENU button. - Page 12 and the luminance of your monitor. The lowest gamma level available, 1.6, will cause the image to appear brighter. The highest gamma level available, 2.4, will cause the image to appear darker. The chart below shows this on a scale. ■...
-
Page 13: Marker Configuration Submenu
Use this setting to display a center marker on the screen. Use to switch between Full Screen, 4:3 and 16:9 aspect ratios. As the V-LCD70XHB-HDA monitor has a native resolution of 800 x 480 RGB pixels, incoming images are automatically ■ 16:9 Markers scaled to fit the screen: Use these settings to superimpose one of 12 markers on the screen when in 16:9 mode. - Page 14 This Pixel-to-Pixel mode bypasses the monitor’s internal scaling function and displays incoming images in their native resolution and aspect ratio, with a one-to-one mapping: • For incoming formats smaller than the native resolution of the LCD panel (800 x 480), the image will be displayed in the center of the screen using only the necessary LCD pixels.
