Page 1: Operating Instructions

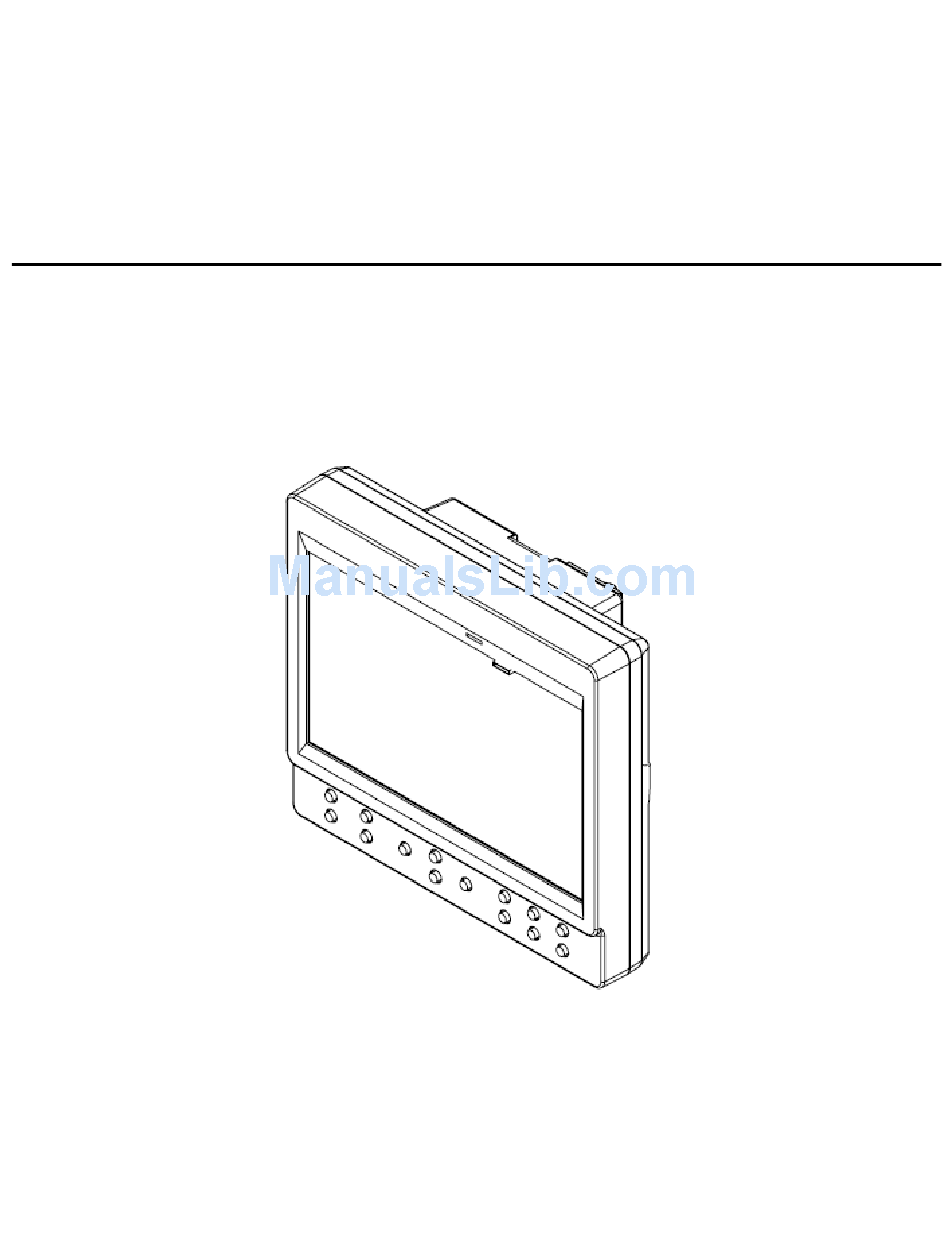

Marshall Electronics V-LCD50-HDMI Model No. 5” Portable Field / Camera-Top Monitor Operating Instructions... -
Page 3: Table Of Contents
Product Overview.................................. 4 Features ....................................4 Installation and Initial Setup ..............................5 Front Monitor Features................................. 6 Rear Monitor Features ................................7 Compatible Input Formats..............................8 On Screen Menu ..................................9 MAIN MENU AND NAVIGATION ............................10 VIDEO CONFIGURATION SUBMENU ..........................10 MARKER CONFIGURATION SUBMENU ........................ -
Page 4: Product Overview
The V-LCD50-HDMI offers standard features including a wide variety of formats and markers, 4 user-configurable front panel function buttons, RGB Check Field / Field Detect, RGB gain and bias control. -
Page 5: Installation And Initial Setup
Inspect the unit for any physical damage that may have occurred during shipping. Should there be any damage, immediately call Marshall Electronics Customer Service at (800) 800-6608. If you are not located within the continental United States, call +1 (310) 333-0606. -
Page 6: Front Monitor Features
Front Monitor Features User-Definable Function Buttons Four user-definable function buttons can be used for direct access to various settings. Functions are assigned using the on-screen menu. Menu Navigation Buttons Use the Menu, ▲, ▼, and Select buttons to display and navigate the on-screen menu. Image Adjustment Buttons Use the image adjustment buttons to adjust brightness, color saturation, and contrast of the... -
Page 7: Rear Monitor Features
The V-LCD50-HDMI has a single HDMI input. Battery Compartment Signal formats and frame rates are automatically The V-LCD50-HDMI can be powered with four (4) detected and displayed on the screen. AA rechargeable or alkaline batteries. The orientation of the batteries should be as shown in Power Switch the image above. -
Page 8: Compatible Input Formats
Compatible Input Formats The following standards are supported by the V-LCD50-HDMI monitors: HDMI Video– 720p (60 / 59.94 / 50 / 30 / 29.97 / 25) 1080i (60 / 59.94 / 50) 1080p (30 / 29.97/ 25 / 24 / 24sF/ 23.98 / 23.98sF) VESA –... -
Page 9: On Screen Menu
On Screen Menu Color Temperature D65, D55, Linear, User, D93 RGB Bias and Gain R, G, B Bias (0-100) / R, G, B Gain (0-100) Video Configuration Check Field Off, Mono, Blue, Green, Red Ratio Full Screen, 4:3, 16:9 Pixel-to-Pixel Off, On Marker Enable Off, On... -
Page 10: Main Menu And Navigation
MAIN MENU AND NAVIGATION Main Menu Access the main menu by pushing and holding the MENU button on the front panel of the monitor. •Step through menu items using the ▲ and ▼ buttons. •Choose a submenu or select a menu item by pressing SELECT. •Return to the previous menu by pressing MENU. -
Page 11: Rgb Bias And Gain
■ RGB Bias and Gain Select this submenu to fine-tune the monitor’s color balance (R, G, B). This should only be done by someone experienced with video engineering, as this will alter the overall color shading of the screen. The purpose is to allow color matching to other types of monitors and/or displays. - Page 12 Disable Blue Check Field mode. ■ Ratio Use to switch between Full Screen, 4:3 and 16:9 aspect ratios. As the V-LCD50-HDMI monitor has a native resolution of 800 x 480 RGB pixels, incoming images are automatically scaled to fit the screen: •...
-
Page 13: Marker Configuration Submenu
MARKER CONFIGURATION SUBMENU Marker Configuration Submenu ■ Markers Use this setting to enable or disable all on-screen markers. This setting affects the center marker, full screen markers, 16:9 markers and 4:3 markers. Center Marker Use this setting to display a center marker on the screen. ■... -
Page 14: Full Screen Markers
■ Full Screen Markers Use this setting to superimpose one of 7 markers on the screen when in Full Screen mode. This setting is disabled when the aspect ratio is set to 16:9 or 4:3. • 95% Safe Area • 93% Safe Area •... -
Page 15: Filter Configuration Submenu
■ False Colors The V-LCD50-HDMI has a false color filter to aid in the setting of camera exposure. As the camera Iris is adjusted, elements of the image will change color based on the luminance or brightness values. This enables proper exposure to be achieved without the use of costly, complicated external equipment. -
Page 16: System Configuration Submenu
■ Splash Screen Use this option to enable or disable the Marshall Electronics Inc. splash screen seen when the monitor is first powered ■ Contrast / Backlight Use this feature to choose between controlling the Contrast of the image or the intensity of the panel’s Backlight with the CONTRAST knob on your monitor. -
Page 17: Function Presets Submenu
■ Freeze Input Use the Freeze function to “freeze” the current image on the screen. Select this menu item again (Unfreeze) to return to the real-time video input. ■ Image Flip Use the Image Flip function to turn the monitor’s display 180° . Note: Both the image and all menus and On Screen Display text will be flipped. -
Page 18: System Information Submenu
SYSTEM INFORMATION SUBMENU System Information vx.xx System ■ System This shows the System firmware version of your monitor. -
Page 19: Specifications
Specifications ■ BATTERY COMPARTMENT ■ PANEL Uses Four AA Batteries (Alkaline Included) Screen Size 5.0” Diagonal *Use of Rechargeable batteries is highly recommended Display Area (h x v) 108.0 x 64.8 mm Native Aspect Ratio 15:9 Pixels 800 x 480 Viewing Angle (h x v) 85°... -
Page 20: Dimensions
Dimensions... -
Page 24: Maintenance
This warranty is extended to the first consumer only, and proof of purchase is necessary to honor the warranty. If there is no proof of purchase provided with a warranty claim, Marshall Electronics reserves the right not to honor the warranty set forth above. - Page 25 2010-1008r3 Marshall Electronics, Inc. 1910 East Maple Ave. El Segundo, CA 90245 Tel: (800) 800-6608 / (310) 333-0606 • Fax: 310-333-0688 www.LCDRacks.com • sales@lcdracks.com...
