Summary of Contents for Marshall Electronics V-LCD70P-HDA
-

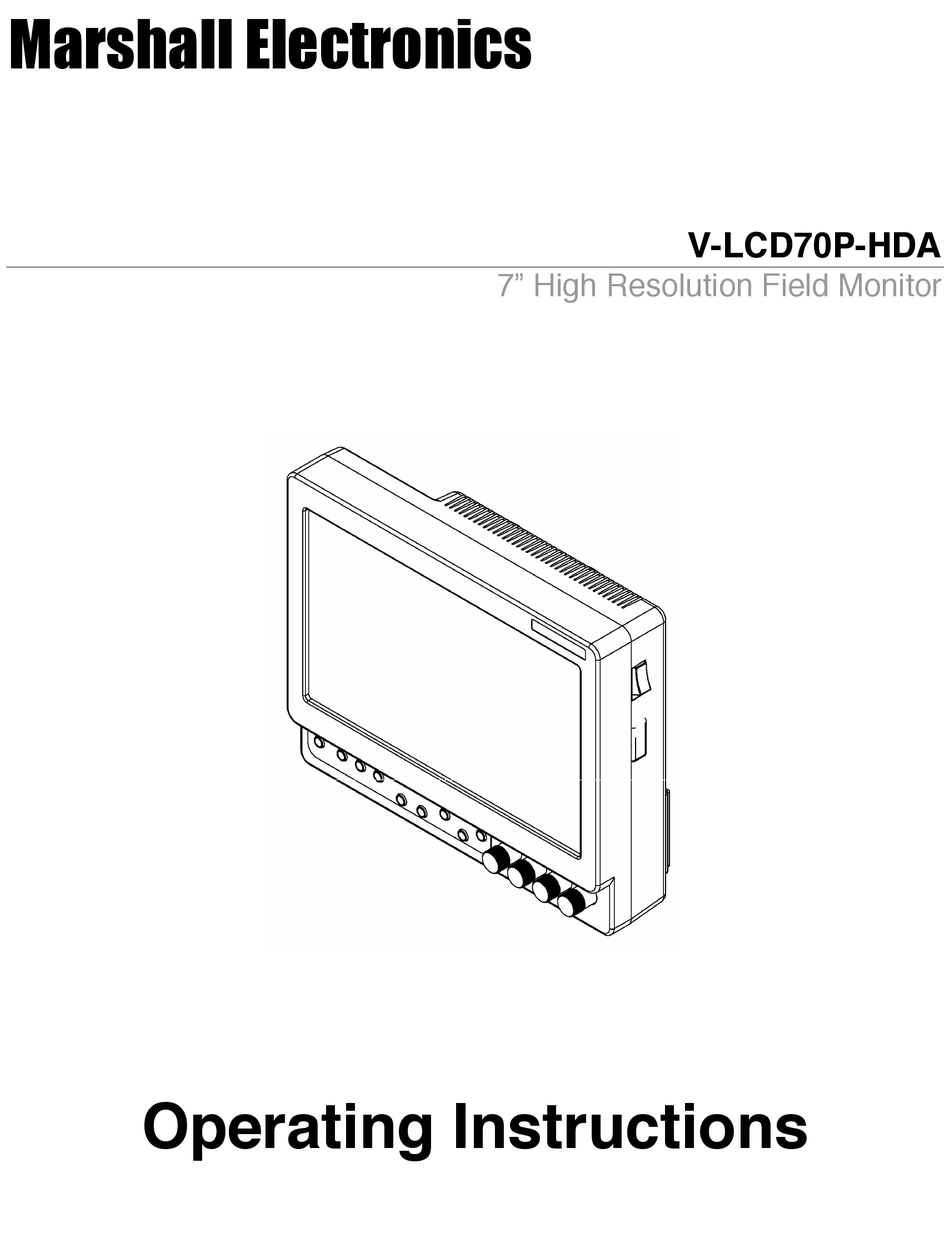

Page 1: Operating Instructions
V-LCD70P-HDA 7” High Resolution Field Monitor Operating Instructions... -
Page 3: Table Of Contents
Contents Product Overview ...4 Features...4 Installation and Initial Setup...5 Unpacking ... 5 Mounting ... 5 Changing the Battery Adapter ... 5 Connections and Power-On... 5 Front and Side Panel Features ...6 Power Button ... 6 Menu Navigation Buttons... 6 User-Definable Function Buttons... 6 Menu Navigation Buttons... -
Page 4: Product Overview
Focus-Assist, False Color filter, Aspect ratio settings, underscan mode, blue-only mode, monochrome mode, and H/V delay are a few of the advanced features which make the V-LCD70P-HDA at home in any broadcast environment. Pixel-to-Pixel mode also allows native display of any incoming image format. -
Page 5: Installation And Initial Setup
The monitor will draw no more than 1.0 Amps at 12 Volts in operation (12 Watts). Connect the required cables for video signal input and output. (Power must be applied to the V-LCD70P-HDA for the active loop-though outputs to be activated.) All BNC connectors are rated at 75. -

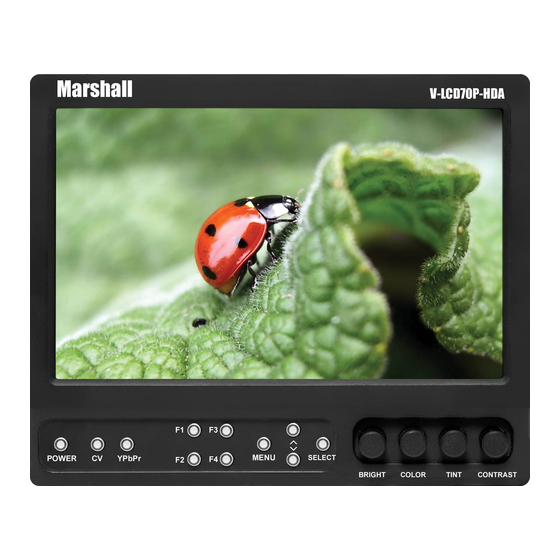

Page 6: Front And Side Panel Features
Front and Side Panel Features Power Button Use the power button to toggle between ON and STANDBY modes. In the STANDBY state, the LED on the button will illuminate bright green. In the ON state, the LED will dimly illuminate green. Input Select Buttons Use the VIDEO and YPbPr buttons to select the corresponding analog input. -
Page 7: Rear Panel Features
Pin 1: GND Pin 2: N/C Pin 3: N/C Pin 4: +12VDC Battery Adapter The V-LCD70P-HDA can be powered from a variety of batteries. Several user-interchangeable battery adapters are available. See page 18 for available adapters. ¼-20 Mounting Hole Use the ¼-20 mounting hole to attach the monitor to... -
Page 8: Compatible Input Formats
Compatible Input Formats Format Composite NTSC 480i 576i 480p / 59.94 576p / 50 720p / 60 720p / 59.94 720p / 50 720p / 30 720p / 29.97 720p / 25 720p / 24 720p / 23.98 1035i / 60 1035i / 59.94 1080i / 60... -
Page 9: On-Screen Menu
On-Screen Menu STRUCTURE OVERVIEW Video Configuration Marker Configuration Main Menu Filter Configuration System Configuration MAIN MENU AND NAVIGATION Access the main menu by pushing and holding the MENU button on the front panel of the monitor. Main Menu Color Temperature D93, D65, D55, User RGB Bias and Gain R, G, B Bias (0-100) / R, G, B Gain (0-100) -
Page 10: Video Configuration Submenu
VIDEO CONFIGURATION SUBMENU Color Temperature Use this setting to choose one of three color temperature presets: • D55 (5500K) • D65 (6500K) • D93 (9300K) • USER (Adjustable Color Bias and Gain) RGB Bias and Gain Select this submenu to adjust bias and gain of the monitor’s response to each color (R, G, B). The bias and gain controls can be used to alter the white balance of the image. -
Page 11: Check Field
Disable Blue Check Field mode. Aspect Ratio Settings Use to switch between Full Screen, 4:3 and 16:9 aspect ratios. As the V-LCD70P-HDA monitor has a native resolution of 800 x 480 RGB pixels, incoming images are automatically scaled to fit the screen: •... -
Page 12: Pixel-To-Pixel Mode
VIDEO CONFIGURATION SUBMENU (continued) Pixel-to-Pixel Mode Use this setting to enable Pixel-to-Pixel mode. This mode bypasses the monitor’s internal scaling function and displays incoming images in their native resolution and aspect ratio, with a one-to-one mapping: • For incoming formats smaller than the native resolution of the LCD panel (800 x 480), the image will be displayed in the center of the screen using only the necessary LCD pixels. -
Page 13: Marker Configuration Submenu
MARKER CONFIGURATION SUBMENU Markers Use this setting to enable or disable all on screen markers. This setting affects the center marker, full screen markers, 16:9 markers, and 4:3 markers. Center Marker Use this setting to display a center marker on the screen. ... -
Page 14: 4:3 Markers
MARKER SETUP SUBMENU (continued) 4:3 Markers Use this setting to superimpose one of 5 markers on the screen when in 4:3 mode. This setting is disabled when the aspect ratio is set to 16:9, or when Pixel-to-Pixel, Underscan, or H/V Delay is enabled. •... -
Page 15: Filter Configuration Submenu
False Colors The V-LCD70P-HDA has a false color filter to aid the in setting camera exposure. As the camera Iris is adjusted, elements of the image will change color based on the luminance or brightness values. This enables proper exposure to be achieved without the use of costly, complicated external equipment. -
Page 16: Peaking Filter (Focus Assist)
FILTER CONFIGURATION SUBMENU (continued) Peaking Filter (Focus assist) The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, all color will be removed from the display and a black-and-white image will remain. The internal processor will display RED color on the screen where sharp edges appear. -
Page 17: System Configuration Submenu
On-Screen Menu (continued) SYSTEM CONFIGURATION SUBMENU Input Format OSD Use this option to enable on-screen display of input/format status in the upper-left corner of the screen. User-Definable Function Buttons Use the Function on F1, F2, F3 and F4 menu items to define each function button on the front panel of the monitor. The following options are available for each button: Ratio •... -
Page 18: Specifications
Specifications PANEL Screen Size 7.0” Diagonal Display Area (h x v) 152.40 x 91.44 mm Aspect Ratio 15:9 (16:9 / 4:3 Selectable) Pixels 800 x 480 Color Depth 18-bit (262,144 Colors) Viewing Angle (h x v) 140° x 100° (CR >10) Brightness 250 cd/m Contrast Ratio... -
Page 19: Maintenance
Neutralize static electricity effects by using the recommended cleaning and polishing practice. Warranty Marshall Electronics warranties to the first consumer that this V-LCD70P-HDA LCD monitor will, under normal use, be free from defects in workmanship and materials, when received in its original container, for a period of one year from the purchase date. - Page 20 1910 East Maple Ave. El Segundo, CA 90245 Tel: (800) 800-6608 / (310) 333-0606 • Fax: 310-333-0688 V1.0 www.LCDRacks.com • sales@lcdracks.com...
