Summary of Contents for Marshall Electronics V-LCD70-AFHD
-

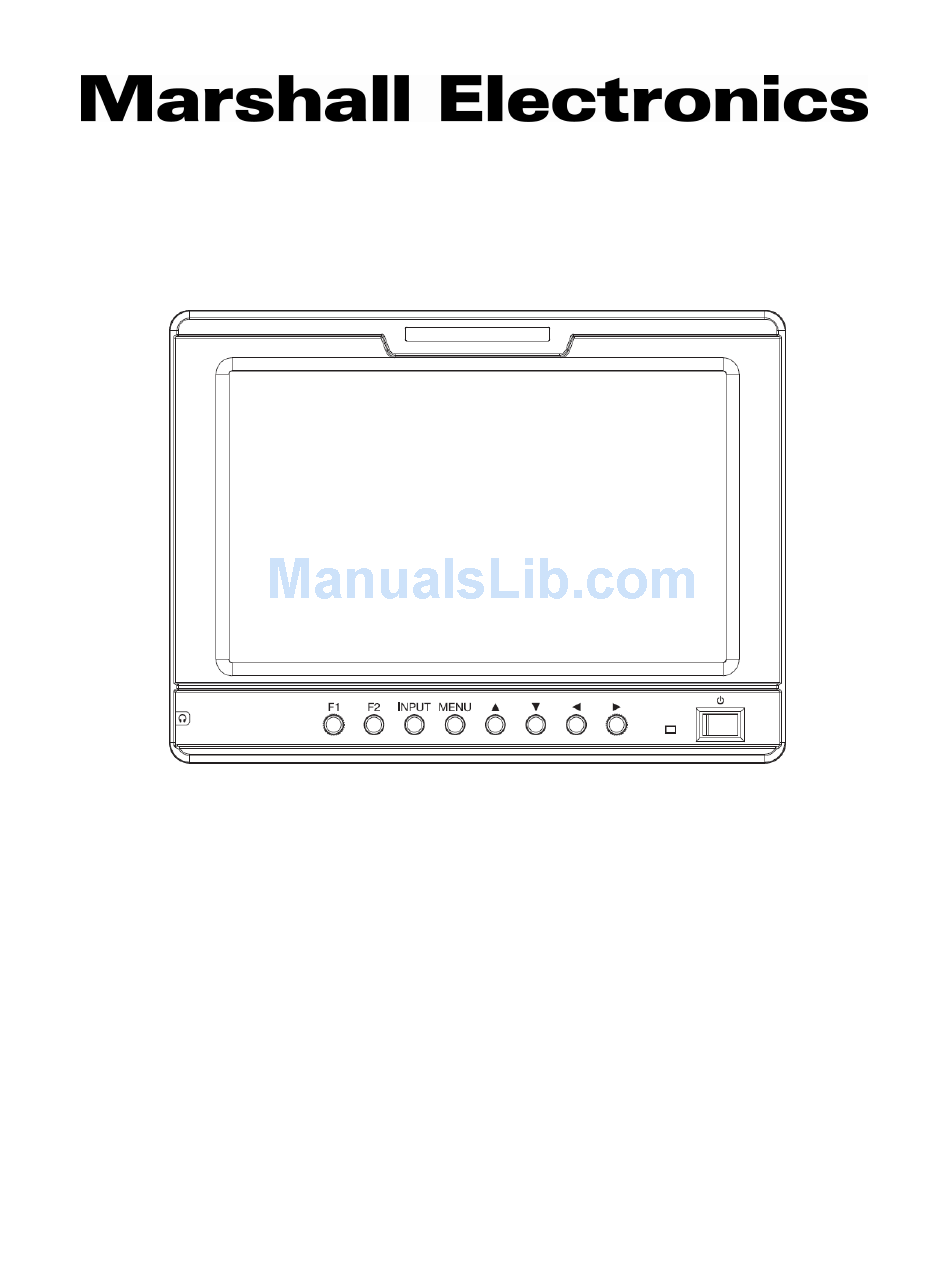

Page 1: Operating Instructions
V-LCD70-AFHD Model Operating Instructions... - Page 2 This page intentionally left blank...
-
Page 3: Table Of Contents
Table of Contents Top and Front Panel Features ..........................6 Rear Panel Features............................7 Compatible Input Formats..........................8 MAIN MENU AND NAVIGATION .........................9 Using the Menu buttons ..................................9 Picture Submenu ....................................9 Video & Audio Submenu ................................10 Setting Submenu ....................................11 OSD Submenu....................................12 Specifications..............................13 Maintenance..............................14 Warranty................................14... - Page 5 Plug the power supply into an AC power source (100-240 V @ 50/60 Hz). Attach the Power connector to the back of the monitor. Connect the required cables for video signal input and output. (Power must be applied to the V-LCD70-AFHD for the active loop- though output to be activated).
-

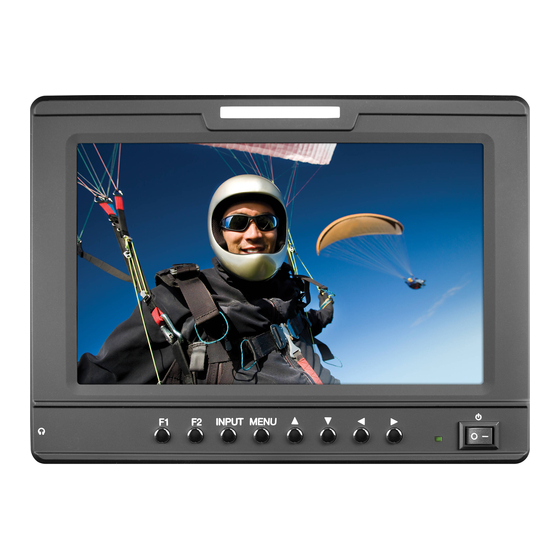

Page 6: Top And Front Panel Features
Top and Front Panel Features Power Switch Stereo Headphone Jack This power switch controls power to the monitor from the DC The 1/8” Headphone jack on monitor’s side takes two Power Connector or the custom Battery Adaptor. The monitor channels of embedded (or analog) audio and provides audio will always attempt to draw power from the DC connector first to connected headphones. -
Page 7: Rear Panel Features
SDI (3G/SDI) Input / Output protection from the cord being accidentally unplugged. If The V-LCD70-AFHD has one SDI input (up to 3G SDI formats) using a third party power supply, it should have a 5.5mm OD x and one loop through output. -
Page 8: Compatible Input Formats
Compatible Input Formats Composite (Video) NTSC Component (YPbPr) 720p/50, 59.94, 60 1080p/23.98, 24, 25, 29.97, 30 1080i/50,59.94,60 HDMI 720p/50,59.94,60 1080p/23.98, 24, 25, 29.97, 30 1080i/50,59.94,60 1080p/50,59.94,60 3G-SDI 480i, 576i 720p/50,59.94,60 1080p/23.98, 24, 25, 29.97, 30 1080i/50,59.94,60 1080p/50,59.94,60 (3G Level A) -
Page 9: Main Menu And Navigation
MAIN MENU AND NAVIGATION Access and navigate the main menu using the Menu button on the keypad: Using the Menu buttons • Press the MENU button to enter the main menu. Use the and buttons to scroll through the main menu or each submenu. •... -
Page 10: Video & Audio Submenu
Color TempG Color TempB Picture Mode Standard (Contrast, Brightness, Saturation and Tint = 50) Soft (Contrast = 40, Brightness, Saturation = 45) User (User Defined settings) Vivid (Contrast = 60, Brightness = 55, Saturation = 75) Aspect Ratio Full Screen (Image is scaled across the entire screen) 4:3 (Image is displayed in a 4:3 aspect ratio) 16:9 (Image is displayed in a 16:9 aspect ratio) 14:9 (Image is displayed in a 14:9 aspect ratio) -
Page 11: Setting Submenu
Standard (Normal image display) Overscan (Displays 95% of the image to avoid showing ancillary data “artifacts”) Underscan (Displays all available image data, including ancillary data “artifacts”) Volume (0 – 100 , 50 = Default) Balance (-10 - +10 , 0 = Default) Audio Meter (Displays an audio meter with the first two channels of available audio) Setting Submenu Image Flip (Flip image display) -
Page 12: Osd Submenu
OSD Submenu Horizontal Position (0-10, 5 = Default) Vertical Position (0-10, 5 = Default) Horizontal Size (0,3,5,7,10, 5 = Default) Vertical Size (0,3,5,7,10, 5 = Default) OSD Horizontal Position (0-100, 50 = Default) OSD Vertical Position (0-100, 50 = Default) Menu Transparency (0-10, 0 = Default) OSD Timeout (5 sec,10 sec,15 sec,60 sec, 5 sec = Default ) -
Page 13: Specifications
Specifications PANEL ■ Screen Size 7” Diagonal Display Area (h x v) 153.6 x 90 mm Pixels 1024 x RGB x 600 Brightness 500 cd/m2 Contrast Ratio 700:1 CONNECTORS ■ HDMI Video Input 1 x HDMI Female Receptacle Stereo Headphone Jack 1/8”... -
Page 14: Maintenance
Warranty Marshall Electronics warranties to the first consumer that this V-LCD70-AFHD LCD monitor will, under normal use, be free from defects in workmanship and materials, when received in its original container, for a period of one year from the purchase date. - Page 15 This page intentionally left blank...
- Page 16 1910 East Maple Ave. El Segundo, CA 90245 Tel: (800) 800-6608 / (310) 333-0606 • Fax: 310-333-0688 www.LCDRacks.com • sales@lcdracks.com...
