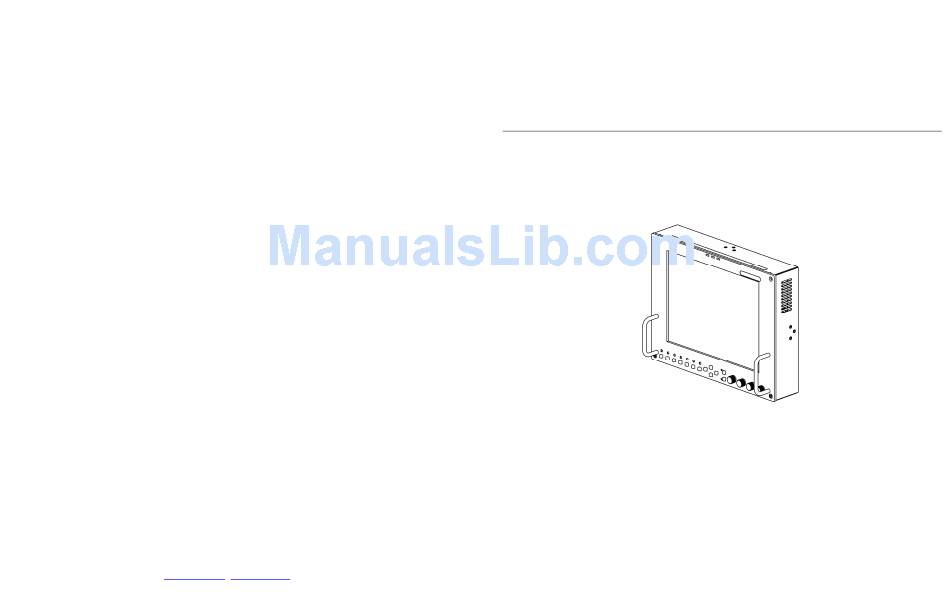

Page 1: Operating Instructions
Marshall Electronics V-LCD84SB-AFHD Portable High Definition LCD Monitor Operating Instructions Marshall Electronics, Inc. 1910 East Maple Ave. El Segundo, CA 90245 Tel: (800) 800-6608 / (310) 333-0606 • Fax: 310-333-0688 www.LCDRacks.com • sales@lcdracks.com... - Page 2 This warranty is extended to the first consumer only, and proof of purchase is necessary to honor the warranty. If there is no proof of purchase provided with a warranty claim, Marshall Electronics reserves the right not to honor the warranty set forth above.
-
Page 3: Table Of Contents
Optional Accessories Contents ■ Batteries Product Overview..............................4 Features ..................................4 • IDX-E7S 71Wh/4.8Ah Lithium Ion V-Mount Battery Pack • IDX-E7 71Wh/4.8Ah Lithium Ion V-Mount Battery Pack with PowerLink Installation and Initial Setup ........................... 5 • IDX-E10S 98Wh/6.6Ah Lithium Ion V-Mount Battery Pack Unpacking ................................ -
Page 4: Batteries Product Overview

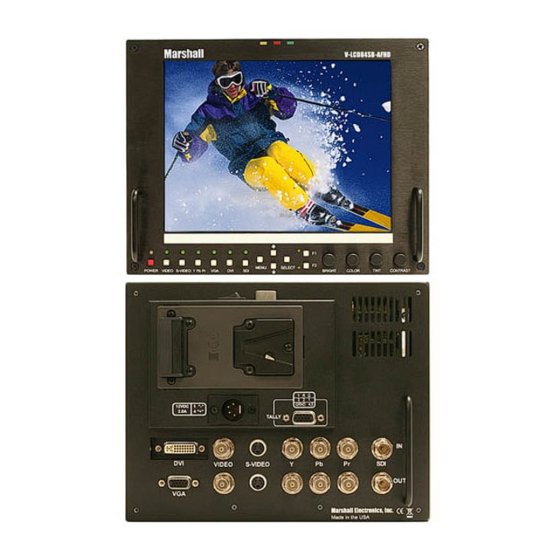

Specifications (continued) Product Overview The V-LCD84SB-AFHD is an 8.4” high definition LCD monitor with Marshall Electronics’ proprietary SunBright LCD panel, designed specifically for outdoor applications or high levels of ambient light. The V-LCD84SB-AFHD features our completely digital TFT-MegaPixel™ active matrix LCD system. Weighing only 2.8 lbs, this monitor is ideal as a light- weight high resolution viewfinder or focus-assist monitor. -
Page 5: 98Wh/6.6Ah Lithium Ion V-Mount Battery Pack Installation And Initial Setup
Video Input / Output Supports SMPTE 170M, NTSC/PAL The V-LCD84SB-AFHD monitor is shipped with a ¼”-20 mounting bracket on the bottom side, allowing the monitor to ■ ELECTRICAL be flexibly mounted to a camera or other device using a variety of mounts. This ¼”-20 mounting bracket can also be S-Video (Y/C) Input / Output attached to any side of the monitor. -
Page 6: Front Panel Features
On-Screen Menu (continued) Front Panel Features SYSTEM CONFIGURATION SUBMENU Top Front Panel Video Configuration Submenu ■ Internal SMPTE Color Bars Use to display internally generated SMPTE split-field color bars. Lower Front Panel ■ User-Definable Function Buttons Use the FUNCTION 1 and FUNCTION 2 menu items to define each function button on the front panel of the monitor. The following options are available for each button: •... -
Page 7: V-Aba-01 Anton Bauer To Idx Battery Adapter Plate Rear Panel Features
VIDEO CONFIGURATION SUBMENU (continued) ■ Aspect Ratio Settings Use to switch between 4:3 and 16:9 aspect ratios. As the V-LCD84SB-AFHD monitor has a native resolution of 800 x 600 RGB pixels, incoming images are automatically scaled to fit the screen: •... -
Page 8: Compatible Input Formats
On-Screen Menu (continued) Compatible Input Formats VIDEO CONFIGURATION SUBMENU (continued) Format Composite S-Video YPbPr DVI-D ■ Monochrome Mode ● ● NTSC Use this setting to enable monochrome mode. Only the luminance of the image will be displayed as a grayscale ●... -
Page 9: On-Screen Menu
On-Screen Menu (continued) On-Screen Menu VIDEO CONFIGURATION SUBMENU STRUCTURE OVERVIEW OFF, 13:9, 14:9, 4:3, 2.35:1, MARKER 16:9 1.85:1, 95%, 93%, 90%, 88%, 80% MARKER SETUP OFF, 95%, 93%, 90%, 88%, MARKER 4:3 MARKER BACKGROUND OFF, HALF, BLACK CENTER MARKER OFF, ON COLOR TEMP D55, D65, D93, USER RED (0-100) -
Page 10: Marker Setup Submenu
On-Screen Menu (continued) On-Screen Menu (continued) MARKER SETUP SUBMENU MARKER SETUP SUBMENU (continued) ■ 4:3 Markers Use this setting to superimpose one of 5 markers on the screen when in 4:3 mode. This setting is disabled when the aspect ratio is set to 16:9, or when Pixel-to-Pixel™, Underscan, or H/V Delay is enabled. •...
