Product Overview
1
The V-R151P is a rack-mounted monitor with a 15", 4:3 aspect ratio active matrix LCD/TFT module. Mounting can also be
achieved via a VESA 75 reinforced mount point on the rear of the unit or with the included rack ears. The display will produce a
high-resolution 1024W x 768H XGA image from a computer or display scaled video images. Television, Composite Video or Y/C
(S-video) images are displayed via a proprietary internal scaling LSI The unit is designed to fi t into an EIA standard 19" rack and
occupies 6RU of space. For ease of operation the V-R151P includes front mounted selector buttons for menu operations with On
Screen Menu Display (OSD) and "ON AIR" tally.
Features
2
• XGA Resolution 1024 × 768 pixels, 2.4 million total RGB pixels produce 16.7 million colors
• 250 candela per meter² luminance
• Compact design fits in EIA standard rack 6U high
• VESA 75 mount for wall, ceiling or desk top
• Automatic Gamma Correction
• 16:9 or 4:3 aspects
• 125 Channel Cable Ready NTSC TV Tuner
• Self-powered 3 color tally system
• NTSC/PAL operation
°
• 170
CRT style viewing angles
• 12 VDC 4-pin XLR power connector with external power supply
• V-Mount battery adapter
Specifications
3
Display (Viewing Area)
15" Diagonal (11.97" × 8.98") (304.1mm x 228.1mm)
Resolution (Pixels)
1024H x 768V
Screen Format
4 x 3
Screen Treatment
Anti-Glare and Anti-scratch Hard Coat
Dot Pitch
0.297 square pixel
Pixel Response
12ms Maximum - Black to White to Black (2.5ms rise, 9.5 ms decay)
Viewing Angle
85° (L/R), 50° (U), 60° (D) From Center
Brightness (in cd/m²)
250 cd/m²
Color Temp
D-65
Color Gamut
SMPTE/EBU
Backlight
CCFL 50,000 hour
Contrast Ratio
450:1
Video Inputs System
NTSC/PAL
TV Tuner System
NTSC
Inputs
1 S-Video (4 Pin Mini Din), 1 Composite (RCA), 1 XGA (15P HD-15),
Audio L/R (RCA),RF (F-Type), Power (4 Pin Male XLR), Tally (15 Pin HD-15)
Rack Mount Dimensions
19.12"W × 10.5"H × 2.5"D (48.5cm x 26.7cm x 6.35cm)
Desk Top Dimensions
16"W x 10.5"H x 2.5"D (40.6cm x 26.7cm x 6.35cm)
Approx. Weight
8 lbs (5.7kg)
Power Consumption
40Watt Max 12 VDC from included power supply (V-PS12-5V1(XLR))
Operating Temperature
0°C to 50° C (Storage -20°C to +60°C)
Setup
4
1. Unpack the V-R151P and accompanying power supply. Physically inspect for any damage that may have occurred during
shipping. Should there be any damage, immediately contact Marshall Electronics at 800-800-6608. If you are not located
within the continental United States call +1 310-333-0606.
2. Install in your desired location.
3. Connect required cables for signal input and output.
4. Attach battery (Optional) or power connection from power supply to the back of the unit.
5. Plug the power supply into the A.C. source
6. Turn on the V-R151P by depressing the power switch located on the front of the unit.
Refer to Page 3 picture for location of switch settings.
7. Perform input selections and screen adjustments as detailed in following sections of this document
2
V-R151P-Users Guide
V-R151P-Users Guide

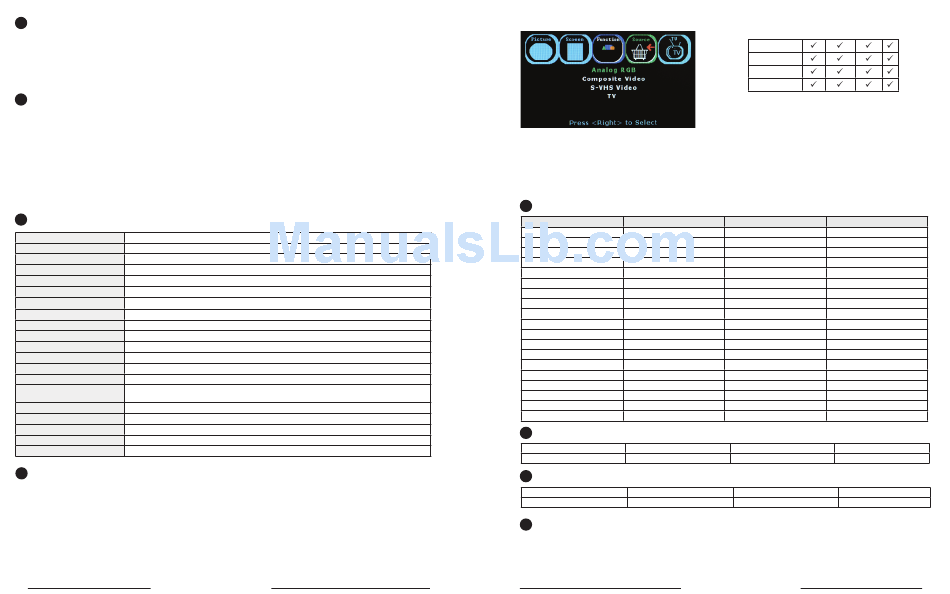

4. Source Menu
(Use UP/ DOWN/ RIGHT buttons to select function)
Analog RGB – Select the on screen source display to be from the HD-15 PC connector on the rear of the unit. Audio speak-
ers will be from the red and white RCA connectors.
Composite Video – Select the on screen source display to be from the White RCA (Video) connector on the rear of the unit.
Audio speakers will be from the red and white RCA connectors.
S-VHS Video – Select the on screen source display to be from the White RCA (Video) connector on the rear of the unit.
Audio speakers will be from the red and white RCA connectors.
TV – Select the on screen display and speakers source input to be from the internal TV Tuner
PC Formats supported from VGA and DVI connectors
8
Resolution
H Frequency ( kHz )
640x480
31.469
640x480
35.000
640x480
34.940
640x480
37.861
640x480
37.500
720x400
31.469
800x600
35.156
800x600
37.879
800x600
43.764
800x600
48.077
800x600
46.875
1024x768
48.780
1024x768
48.363
1024x768
56.476
1024x768
57.703
1024x768
60.030
1280x720
47.760
1280x768
47.700
1280x768
60.150
Video Formats Supported By Component and DVI Inputs
9
720x480 Interlaced
15.735
720x576 Interlace
15.735
Video Formats Supported By Composite and S-Video Inputs
10
720x480 Interlaced
15.735
720x576 Interlace
15.735
Standard Accessories
11
Accessories Supplied with the V-R151P
• Users manual
• "Brick" type 12vdc power supply with 4 Pin Female XLR connector
Marshall Electronics
TV
S-Video
Video
PC
Analog RBG (PC)
Composite Video
S-VHS Video
T V
V Frequency ( Hz )
Pixel Frequency ( MHz )
59.94
25.175
66.667
30.24
69.884
28.513
72.809
29.765
75.0
31.5
70.087
28.322
56.25
36.0
60.317
40.0
70.02
45.513
72.188
50.0
75.0
49.5
60.001
64.11
60.004
65.0
70.069
75.0
72.039
78.476
75.029
78.75
60.0
74.481
60.0
80.136
75.0
102.977
60/59.94
13.500
50.0
13.595
59.94
13.500
50.0
13.595
• "V" Mount battery adapter
• VESA 75 Mount
