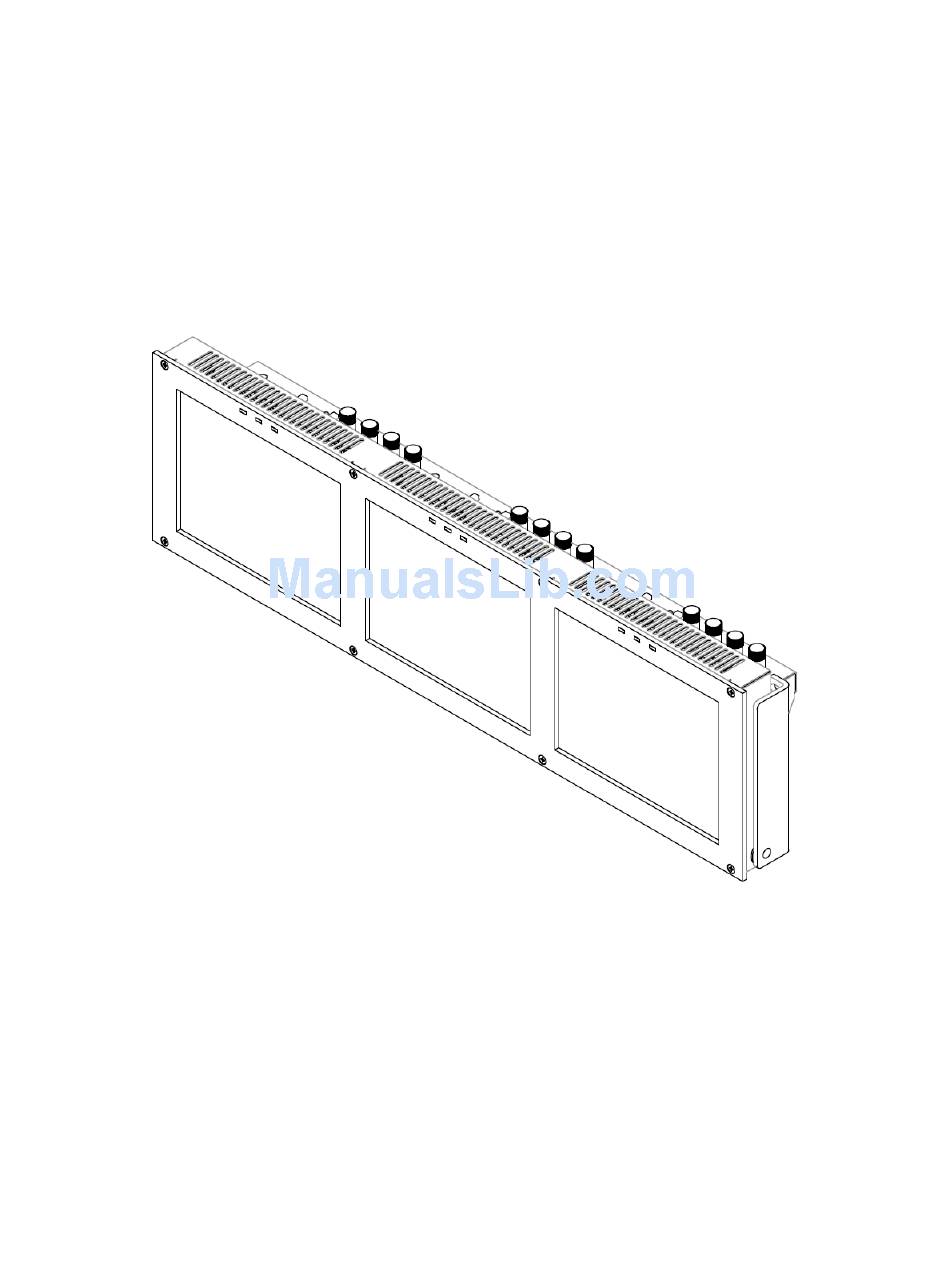

Marshall Electronics V-R653-IMD-3GTE Model No. High Definition LCD Monitor with In-Monitor Display Operating Instructions Edition 2 Revision 8W... - Page 2 This page intentionally left blank...
-
Page 3: Table Of Contents
Table of Contents Installation and Initial Setup ------------------------------------------------------------------------------------------------------5 Top and Front Panel Features ----------------------------------------------------------------------------------------------------6 Rear Panel Features-----------------------------------------------------------------------------------------------------------------7 Compatible Input Formats---------------------------------------------------------------------------------------------------------8 MAIN MENU AND NAVIGATION--------------------------------------------------------------------------------------------------9 Using the menu buttons..................................9 Using the RotoMenu knob ..................................9 MARKER SETUP SUBMENU..................................10 VIDEO CONFIGURATION SUBMENU..............................12 COLOR CONFIGURATION SUBMENU..............................15 SYSTEM CONFIGURATION SUBMENU ..............................16 DEINTERLACER SUBMENU...................................18 OSD CONFIGURATION SUBMENU ...............................19... -
Page 5: Installation And Initial Setup
■ The V-R653-IMD-3GTE can be mounted in any standard EIA 19” equipment rack. The attached rack ears can be angled to provide the user control over the viewing angle. Adequate ventilation is required when installed to prevent possible damage to the monitor’s internal components. -
Page 6: Top And Front Panel Features
Top and Front Panel Features Image Adjustment Knobs Power Button Use the image adjustment knobs to adjust color saturation, Turn the monitor panel off or on by pressing the power brightness and contrast of the image. The status of each image button. -
Page 7: Rear Panel Features
3G-SDI Input and Output monitors in the same bus. See IMD CONFIGURATION SUBMENU for further details. The V-R653-IMD-3GTE has one HD-SDI input and one active loop-through output. See Compatible Input Formats Tally / GPI Interface (HD-15) details on accepted formats. -
Page 8: Compatible Input Formats
Compatible Input Formats SDI/HDSDI Inputs 525i/ 59.94, 625i/ 50 720p/ 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 1080p/ 23.98, 23.98sF, 24, 24sF, 25, 29.97, 30 1035i/ 59.94, 60 1080i/ 50, 59.94, 60 3G-SDI Inputs 3G – Level A and Level B YCbCr, YCbCr+A, RGB, RGB+A 1080p/ 60, 59.94, 50 1080p/ 30, 29.97, 25, 24, 23.98, 30sF, 29.97sF, 25sF, 24sF, 23.98sF... -
Page 9: Main Menu And Navigation
MAIN MENU AND NAVIGATION Access and navigate the main menu using the 4 menu buttons or the RotoMenu™ knob: Main Menu Using the menu buttons • Press the MENU button to enter the main menu. Use the and buttons to scroll through the main menu or each submenu. •... -
Page 10: Marker Setup Submenu
MARKER SETUP SUBMENU Use the Marker Setup submenu to select various types of markers and settings in 4:3, 16:9, or Full Screen mode. Marker Setup Submenu Marker Enable ■ The Marker Enable setting turns 16:9 or 4:3 screen markers On or Off. By default, this setting is On. If you turn the setting OFF, the markers are automatically turned ON the next time you initiate a Screen Marker through a Function Button or through the Marker submenu. -
Page 11: Marker Background
4:3 Markers ■ Use this setting to superimpose one of 5 markers on the screen when in 4:3 mode. This setting is disabled when the aspect ratio is set to 16:9 or Full Screen, and when Pixel-to-Pixel mode is enabled. •... -
Page 12: Video Configuration Submenu
VIDEO CONFIGURATION SUBMENU Use the Video Configuration submenu to select various video settings such as monochrome mode or blue-only mode. Video Configuration Submenu Monochrome Mode ■ Use this setting to enable monochrome mode. Only the luminance of the image will be displayed as a grayscale picture. Blue-Only Mode ■... -
Page 13: Aspect Ratio Settings
Aspect Ratio Settings ■ Use this menu option to switch between several aspect ratio settings. As the V-R653-IMD-3GTE monitor has a native resolution of 1366x768 RGB pixels, incoming images are automatically scaled to fit the screen: • In 4:3 mode, images are scaled up or down to fill the maximum 4:3 portion of the screen. IMD text and time code are superimposed on the lower portion of the image. -
Page 14: Curtain Color
00:00:00:00 00:00:00:00 00:00:00:00 IMD Text IMD Text Scaled 4:3 00:00:00:00 00:00:00:00 IMD Text IMD Text Scaled 16:9 16:9 Curtain Color ■ Use this setting to choose the default color displayed on the screen when no video input is present. Available colors are blue, red, green, white, and black. -
Page 15: Color Configuration Submenu
COLOR CONFIGURATION SUBMENU Use the Color Configuration submenu to adjust the color temperature of the display. Color Configuration Submenu Ctemp/Gamma ■ Use this setting to choose one of three color temperature / gamma presets: • D55 (5500K) • D65 (6500K) •... -
Page 16: System Configuration Submenu
Delete Gamma ■ Use this setting to Delete any custom Gamma tables that have been loaded to the monitor’s memory. Note: Once a setting is Deleted, it cannot be recovered from the monitor. SYSTEM CONFIGURATION SUBMENU Use the System Configuration submenu to control various system parameters. System Configuration Submenu Gray Levels ■... - Page 17 • Pixel to Pixel Enable/disable Pixel-to-Pixel mode • Ctemp/Gamma Rotate amongst color temperature settings • Blue Only Enable/disable Blue Only mode • Monochrome Enable/disable Monochrome mode Save Defaults ■ Use this setting to save the current values of the Color, Brightness, and Contrast controls as the default values. The defaults can then be accessed by pushing the knob twice.
-
Page 18: Deinterlacer Submenu
DEINTERLACER SUBMENU Use the Deinterlacer submenu to control the type of deinterlacing performed on interlaced input signals. System Configuration Submenu Deinterlacer Mode ■ Use the Deinterlacer Mode option to set the type of deinterlacing algorithm used: • In Auto mode, the deinterlacer defaults to Motion Adaptive mode (see below), but uses Film Mode (see below) whenever a film cadence is detected. -
Page 19: Osd Configuration Submenu
Use the Film Mode setting to limit the film mode detection to a specific cadence. • Auto Deinterlacer automatically identifies the film cadence • 2:2 only Deinterlacer only recognizes content originating in 25fps, and uses 2:2 film mode. 24fps content is ignored. -
Page 20: Imd State
IMD State ■ Use this setting to turn the IMD text display on or off. This setting affects both fixed string IMD text and remote IMD text commands (see IMD Configuration Submenu for details). Status Display ■ Use this setting to enable or disable status display. When enabled, the current video input standard is displayed on the top left of the screen. - Page 21 OSD Tally ■ Use this setting to choose how tally is displayed on the screen. The available OSD Tally options depend on the Tally Source selected in the IMD Configuration submenu (see page 22). When the Tally Source is set to Standard (contact closure), OSD Tally can be set to Off, RGY, RG, or GR: •...
-
Page 22: Audio Monitor
When the Tally Source is set to TSL/MEI 422, OSD Tally can be set to Off or IMD: • On-screen tally is disabled • Red, yellow, and green tally is displayed according the protocol commands. Green, red, and yellow colors are shown individually on either the bottom left or right of the screen. LED Tally ■... -
Page 23: Cc Configuration Submenu
CC CONFIGURATION SUBMENU Use the CC Configuration submenu to select the type of captioning stream you would like to decode. IMD Configuration Submenu ■ CC Mode The IMD-3G monitor series provides support for two types of Closed Captioning Modes: 608 and 708 (608 Comp.). Use this section to choose which type of stream you would like to decode. -
Page 24: Audio Configuration Submenu
AUDIO CONFIGURATION SUBMENU Use the Audio Configuration submenu to ■ Audio Bars The IMD-3G monitor series provides audio level indicators for SDI streams with embedded audio. Support for up to 16 channels (labeled as Groups 1, 2, 3 and 4) is provided. Group 1 Group 2 Group 3 Group 4 Audio groups 1-4 shown on the screen... -
Page 25: Imd Configuration Submenu

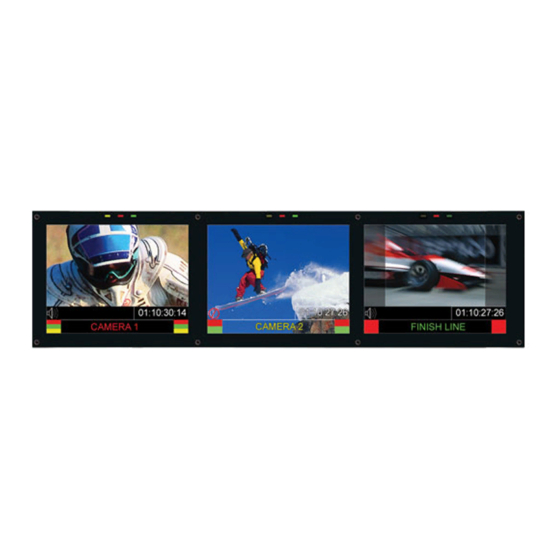

■ The V-R653-IMD-3GTE features an In-Monitor Display (IMD) with the ability to display on-screen text and tally in three colors. IMD text, color, and alignment can be assigned to each screen locally using menu options (see below). Alternately, IMD text and tally can be remotely controlled via the RS-422/485 serial interface using several industry-standard protocols, including TSL v4.0... -
Page 26: Imd Protocol
IMD Protocol ■ Use the IMD Protocol menu option to choose the protocol with which the V-R653-IMD-3GTE receives remote commands. Currently, four protocols are available. Contact Marshall Electronics for the latest protocol compatibility. Image Video Use the Image Video protocol setting when controlling the IMD from an Image Video tally controller (e.g. TSI-1000) or other controlling device which utilizes the Image Video protocol. -
Page 27: Imd Fixed Color
and buttons to scroll through character options. Press ENTER to choose a character. Tally Source ■ The V-R653-IMD-3GTE tally (OSD and LED) can be controlled in a variety of different ways. Use the Tally Source setting to choose how tally is controlled: Standard Use the Standard setting to control tally via contact closure on the HD-15 tally interface. -
Page 28: Service Submenu
The Service submenu displays the firmware versions of the monitor. Additionally, the status of the serial interface, for troubleshooting or debugging purposes, can be shown on the screen by highlighting and selecting the Show Statistics text in the Service Submenu. Contact Marshall Electronics for further information. IMD Configuration Submenu The following information is displayed: •... -
Page 29: Specifications
Specifications PANEL ■ TALLY/GPI HARDWARE INTERFACE (HD-15) Screen Size 6.5” Diagonal ■ Display Area (h x v) 132.096 x 99.072 mm Activation requires contact closure of pin to ground on the Pixels 1042 x RGB x 768 HD-15 connector: Viewing Angle(h x v) 160°... -
Page 30: Dimensions
Dimensions... -
Page 31: Maintenance
This warranty is extended to the first consumer only, and proof of purchase is necessary to honor the warranty. If there is no proof of purchase provided with a warranty claim, Marshall Electronics reserves the right not to honor the warranty set forth above. - Page 33 Marshall Electronics, Inc. 1910 East Maple Ave. El Segundo, CA 90245 Tel: (800) 800-6608 / (310) 333-0606 • Fax: 310-333-0688 www.LCDRacks.com • sales@lcdracks.com...
