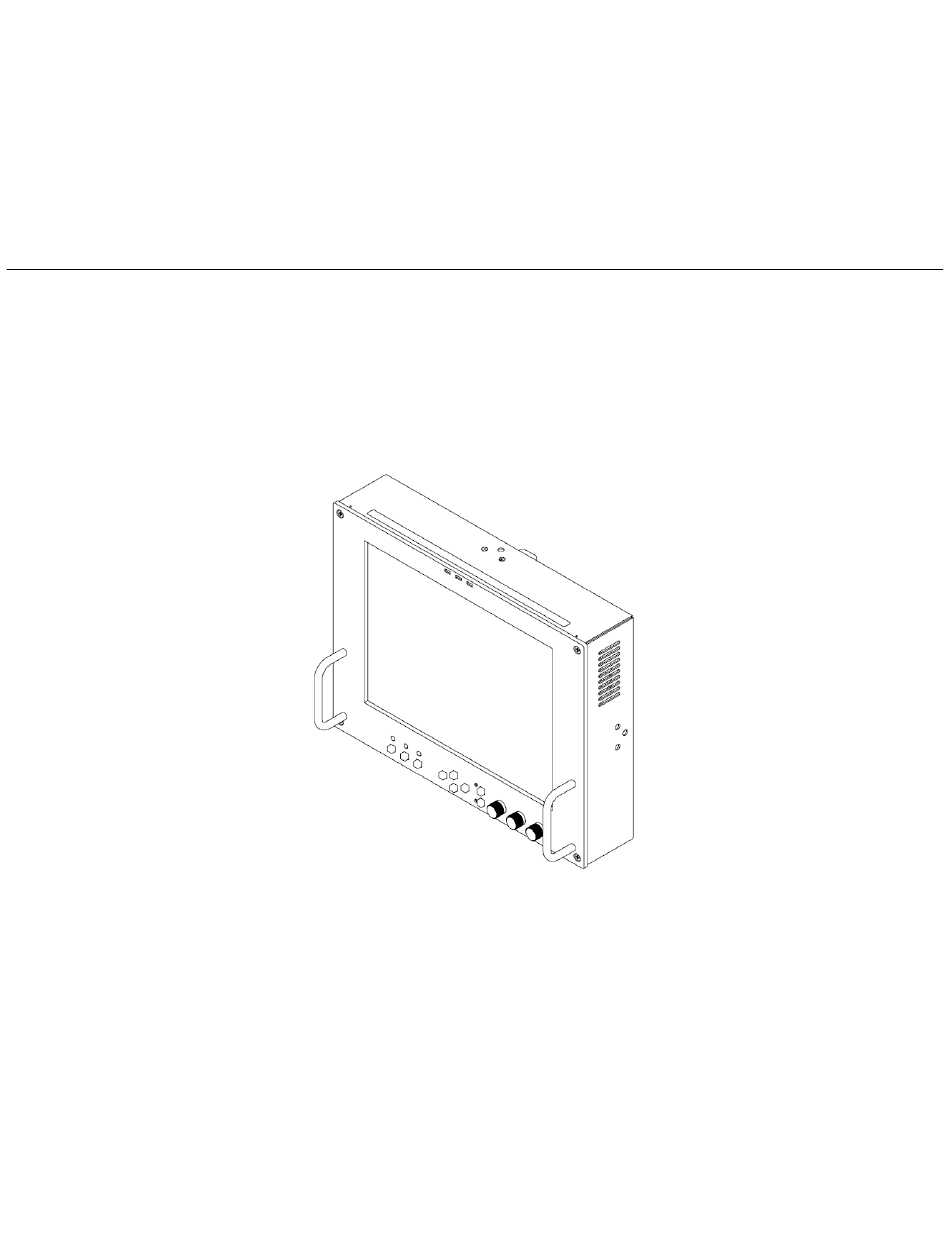

- Page 1 Marshall Electronics V-R1041DP-DVI Portable High Definition LCD Monitor Operating Instructions...
-
Page 3: Table Of Contents
Contents Product Overview..............................4 Features ..................................4 Installation and Initial Setup ........................... 5 Unpacking ................................5 Installation................................5 Connections and Power-On........................... 5 Front Panel Features ............................... 6 Power Button ................................ 6 Input Select Buttons............................... 6 On-Screen Menu Navigation Buttons ........................6 User-Definable Function Buttons........................... -
Page 4: Product Overview
LCD platform. Weighing only 2.85 lbs, this monitor is ideal as a light-weight high resolution viewfinder or focus-assist monitor. The V-R1041DP-DVI can also be rack-mounted with an optional 4RU adapter, or used in a desktop configuration with optional desktop stand . Emulation of SMPTE-C/EBU color and adjustable color temperature enable the most precise color representation possible. -
Page 5: Installation And Initial Setup
• Operating Instructions Inspect the unit for any physical damage that may have occurred during shipping. Should there be any damage, immediately contact Marshall Electronics at (800) 800-6608. If you are not located within the continental United States, call +1 (310) 333-0606. -
Page 6: Front Panel Features
Front Panel Features Top Front Panel Lower Front Panel Power Button User-Definable Function Buttons Turn the monitor on by pressing the power button. Two user-definable function buttons can be used for In the OFF state, the LED will shine red. The LED direct access to various settings. -
Page 7: Rear Panel Features
Rear Panel Features Rear Panel Power Input Tally Interface Connect the 12VDC input to the 4-Pin XLR power input Each tally light is activated via the HD-15 connector by connector. Power can be supplied from the included connecting the corresponding pin to ground. A variety of power supply, or from a variety of DC sources supplying external devices can be used to perform the contact at least 2 Amps at 12 Volts. -
Page 8: Compatible Input Formats
Compatible Input Formats Format Composite S-Video YPbPr DVI-D NTSC ● 525i ● 625i ● 486p / 59.94 ● 576p / 50 1035i / 60 1035i / 59.94 ● ● 1080i / 60 ● ● 1080i / 59.95 ● ● 1080i / 50 ●... -
Page 9: On-Screen Menu
On-Screen Menu STRUCTURE OVERVIEW OFF, 13:9, 14:9, 4:3, 2.35:1, MARKER 16:9 1.85:1, 95%, 93%, 90%, 88%, 80% MARKER SETUP OFF, 95%, 93%, 90%, 88%, MARKER 4:3 MARKER BACKGROUND OFF, HALF, BLACK CENTER MARKER OFF, ON COLOR TEMP D55, D65, D93, USER RED (0-100) ADJ COLOR BIAS GREEN (0-100) -
Page 10: Marker Setup Submenu
On-Screen Menu (continued) MARKER SETUP SUBMENU Marker Setup Submenu ■ 16:9 Markers Use this setting to superimpose one of 10 markers on the screen when in 16:9 mode. This setting is disabled when the aspect ratio is set to 4:3, or when Pixel-to-Pixel™, Underscan, or H/V Delay is enabled. •... -
Page 11: 4:3 Markers
On-Screen Menu (continued) MARKER SETUP SUBMENU (continued) ■ 4:3 Markers Use this setting to superimpose one of 5 markers on the screen when in 4:3 mode. This setting is disabled when the aspect ratio is set to 16:9, or when Pixel-to-Pixel™, Underscan, or H/V Delay is enabled. •... -
Page 12: Video Configuration Submenu
On-Screen Menu (continued) VIDEO CONFIGURATION SUBMENU Video Configuration Submenu ■ Color Temperature Presets Use this setting to choose one of three color temperature presets: • D55 (5500K) • D65 (6500K) • D93 (9300K) • USER (Adjustable Color Bias and Gain) ■... -
Page 13: Monochrome Mode
On-Screen Menu (continued) VIDEO CONFIGURATION SUBMENU (continued) ■ Monochrome Mode Use this setting to enable monochrome mode. Only the luminance of the image will be displayed as a grayscale picture. ■ Blue-Only Mode Use this setting to enable Blue-Only mode. This mode displays only the blue color component of the image, switching off the red and green components. -
Page 14: Aspect Ratio Setting
VIDEO CONFIGURATION SUBMENU (continued) ■ Aspect Ratio Settings Use to switch between 4:3 and 16:9 aspect ratios. As the V-R1041DP-DVI monitor has a native resolution of 1024 x 768 RGB pixels, incoming images are automatically scaled to fit the screen: •... -
Page 15: System Configuration Submenu
On-Screen Menu (continued) SYSTEM CONFIGURATION SUBMENU Video Configuration Submenu ■ Internal SMPTE Color Bars Use to display internally generated SMPTE split-field color bars. ■ User-Definable Function Buttons Use the FUNCTION 1 and FUNCTION 2 menu items to define each function button on the front panel of the monitor. The following options are available for each button: •... -
Page 16: Specifications
Specifications ■ PANEL ■ TALLY Screen Size 10.4” Diagonal 3 LEDs (Green, Red, Yellow). Activation requires contact Display Area (h x v) 210.432 x 157.824 mm closure of pin to ground on the HD-15 connector: Aspect Ratio 4:3 Native (4:3/16:9 Modes) Pin No. -
Page 17: Maintenance
Specifications (continued) Maintenance ■ Screen Cleaning Periodically clean the screen surface using ammonia-free cleaning wipes (Marshall Part No. V-HWP-K). A clean micro- fiber cloth can also be used using only non-abrasive and ammonia-free cleaning agents. Do not use paper towels. Paper towel fibers are coarse and may scratch the surface of the polycarbonate faceplate or leave streaks on the surface. -
Page 18: Optional Accessories
Optional Accessories ■ Batteries • IDX-E7S 71Wh/4.8Ah Lithium Ion V-Mount Battery Pack • IDX-E7 71Wh/4.8Ah Lithium Ion V-Mount Battery Pack with PowerLink • IDX-E10S 98Wh/6.6Ah Lithium Ion V-Mount Battery Pack • IDX-E10 98Wh/6.6Ah Lithium Ion V-Mount Battery Pack with PowerLink ■... -
Page 19: Warranty
This warranty is extended to the first consumer only, and proof of purchase is necessary to honor the warranty. If there is no proof of purchase provided with a warranty claim, Marshall Electronics reserves the right not to honor the warranty set forth above. - Page 20 Marshall Electronics, Inc. 1910 East Maple Ave. El Segundo, CA 90245 Tel: (800) 800-6608 / (310) 333-0606 • Fax: 310-333-0688 www.LCDRacks.com • sales@lcdracks.com 2010-0216...
