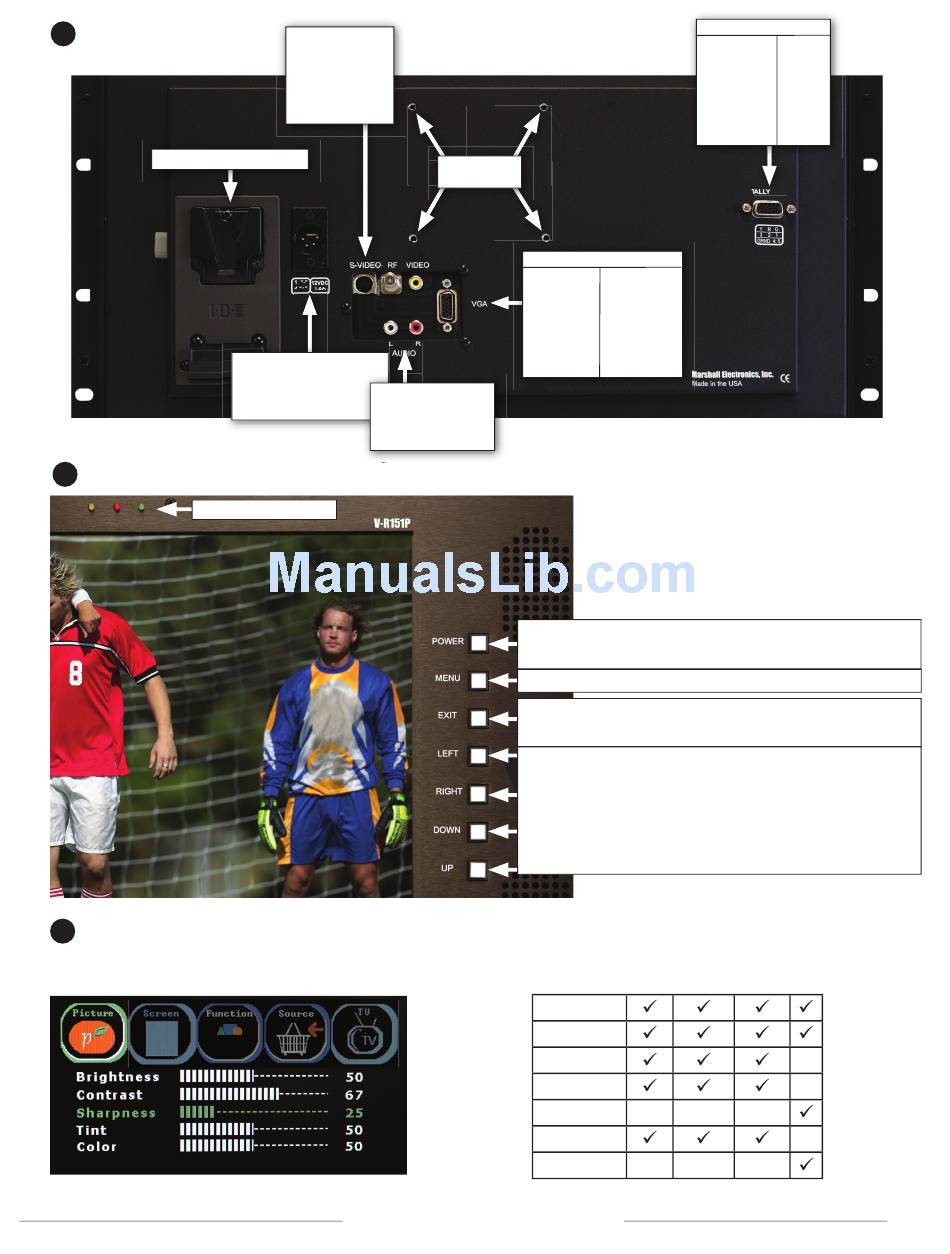

Connectors
5
V-Mount Battery Adapter
12 VDC from power supply
Front Panel Indicators and Controls
6
TALLY INDICATORS
Menu Functions
7
1. Picture Menu
(Use UP/DOWN/LEFT/RIGHT buttons to select function)
S-Video IN
4 Pin Din (Female)
Pin1 - GND
Pin2 - GND
Pin3 – Y in
Pin4 – C in
VESA 75mm
Attach Points
4 Pin Male XLR
Pin 4 - Pos
Composite
Pin 1- Neg
Video 75Ω
Audio L/R 8Ω
RF Tuner Input 50Ω
Note: MENU select will toggle through 5 menus, PICTURE, SCREEN, FUNCTION, SOURCE and TV
Marshall Electronics
Tally IN HD-15 Female
Pin1- Green
Pin2- Red
Pin3-Amber
Pin4 Gnd -
Pin5-
Pin6-
Pin7-
XGA IN HD-15 Female
Pin1-Red IN
Pin 9-
Pin2-Grn IN
Pin10-
Pin3-Blu IN
Pin11-
Pin4-
Pin12-
Pin5-
Pin13- HSync
Pin6-Gnd
Pin14- VSync
Pin7-Gnd
Pin15-
Pin8-Gnd
Power On/Off selection button
Illuminates dim red when power is applied.
Turns bright red when monitor is switched on
On Screen Display (OSD) MENU Activation Button
Dual Function EXIT button
1- Cycles Input selection (Selection Displayed lower right of screen)
2- Exits OSD Menu Mode
UP/DOWN/LEFT/RIGHT menu selections for OSD functions
When TV is selected use UP/DOWN for channel selection
Use LEFT/RIGHT for speaker volume adjustment
TV
S-Video
Brightness
Contrast
Sharpness
Tint
Phase
Color
Color temp
Pin8-
Pin 9-
Pin10-
Pin11-
Pin12-
Pin13-
Pin14-
Pin15-
Video
PC
3
