Page 1: Operating Instructions
Marshall Electronics V-R1042DP-DVI High Definition Dual Screen LCD Monitor Set Operating Instructions Marshall Electronics, Inc. 1910 East Maple Ave. El Segundo, CA 90245 Tel: (800) 800-6608 / (310) 333-0606 • Fax: 310-333-0688 www.LCDRacks.com • sales@lcdracks.com... -
Page 3: Table Of Contents
Warranty Marshall Electronics warranties to the first consumer that this V-R1042DP-DVI LCD monitor will, under normal use, be free from defects in workmanship and materials, when received in its original container, for a period of one year from the purchase date. This warranty is extended to the first consumer only, and proof of purchase is necessary to honor the warranty. -
Page 4: Maintenance

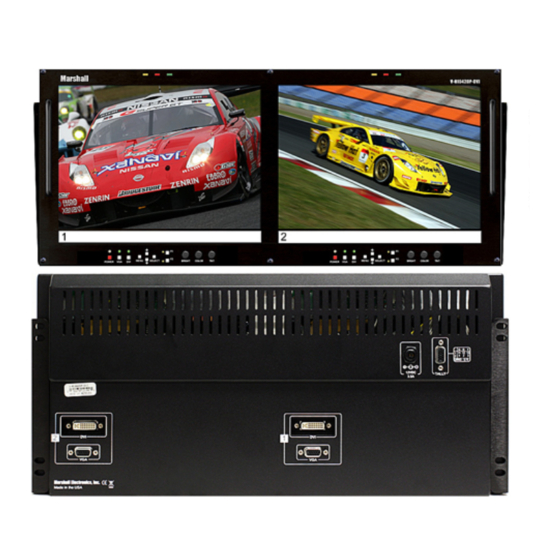

Product Overview The V-R1042DP-DVI is a dual screen high definition LCD monitor set featuring our completely digital TFT-MegaPixel™ active matrix LCD platform. Utilizing 10.4-inch panels with 2.4 million pixels each, the V-R1042DP-DVI provides the highest pixel density available while occupying only 4RU. Our proprietary digital signal processing features 10-bit A/D conversion of all analog signals, with 4X over-sampling and 5-line super-adaptive 2D comb filtering of composite signals. -
Page 5: Specifications
Operating Temperature 32°F to 120°F (0°C to 50°C) Storage Temperature Compliance RoHs Installation and Initial Setup ■ Unpacking Carefully unpack the V-R1042DP-DVI monitor and verify that the following items are included: Signal M1 Green M1 Red M1 Yellow Ground Ground Inspect the unit for any physical damage that may have occurred during shipping. -
Page 6: Front Panel Features
Front Panel Features Power Button User-Definable Function Buttons Turn the monitor on by pressing the power button. Two user-definable function buttons can be used for In the OFF state, the LED will shine red. The LED direct access to various settings. Functions are will shine green when the monitor is turned on. -
Page 7: Scanning Modes
VIDEO CONFIGURATION SUBMENU (continued) ■ Aspect Ratio Settings Use to switch between 4:3 and 16:9 aspect ratios. As the V-R1042DP-DVI monitor has a native resolution of 1024 x 768 RGB pixels, incoming images are automatically scaled to fit the screen: •... -
Page 8: Compatible Input Formats
Compatible Input Formats Format Composite S-Video YPbPr NTSC 525i 625i 486p / 59.94 576p / 50 1035i / 60 1035i / 59.94 1080i / 60 1080i / 59.95 1080i / 50 1080psF / 24 1080psF / 23.98 1080p / 30 1080p / 29.97 1080p / 25 720p / 60... -
Page 9: Video Configuration Submenu
VIDEO CONFIGURATION SUBMENU Video Configuration Submenu ■ Color Temperature Presets Use this setting to choose one of three color temperature presets: • D55 (5500K) • D65 (6500K) • D93 (9300K) • USER (Adjustable Color Bias and Gain) ■ Adjusting Color Bias Color Bias Menu Use this submenu to adjust bias of the color response. -
Page 10: Marker Setup Submenu
MARKER SETUP SUBMENU Marker Setup Submenu ■ 16:9 Markers Use this setting to superimpose one of 10 markers on the screen when in 16:9 mode. This setting is disabled when the aspect ratio is set to 4:3, or when Pixel-to-Pixel, Underscan, or H/V Delay is enabled. •...
