Summary of Contents for Marshall Electronics V-R1042DP-AFHD
-
Page 1: Operating Instructions

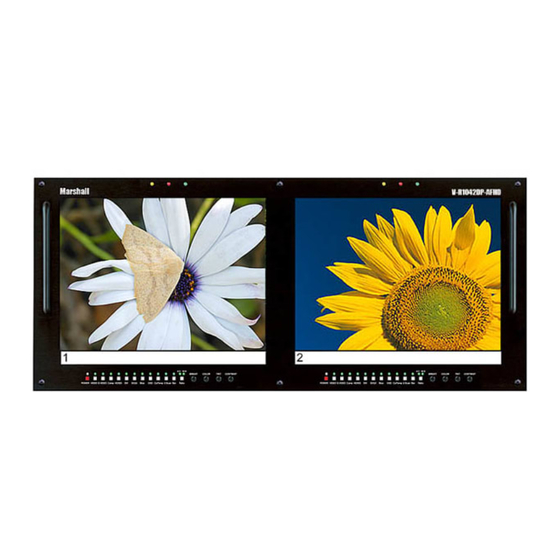

Marshall Electronics V-R1042DP-AFHD High Definition Dual Screen LCD Monitor Set Operating Instructions Marshall Electronics, Inc. 1910 East Maple Ave. El Segundo, CA 90245 Tel: (800) 800-6608 / (310) 333-0606 • Fax: 310-333-0688 www.LCDRacks.com • sales@lcdracks.com... -
Page 3: Table Of Contents
Warranty Marshall Electronics warranties to the first consumer that this V-R1042DP-AFHD LCD monitor will, under normal use, be free from defects in workmanship and materials, when received in its original container, for a period of one year from the purchase date. This warranty is extended to the first consumer only, and proof of purchase is necessary to honor the warranty. -
Page 4: Maintenance
■ Multi-Format Compatibility With a variety of analog and digital inputs, the V-R1042DP-AFHD accommodates virtually all video formats. Input types include Composite Video, S-Video, YPbPr, SDI, VGA, and DVI with HDCP. Accepted formats include NTSC/PAL, 480i/p, 576i/p, 720p, 1035i, and 1080i/p standards, as well as VESA PC formats through SXGA (1280 x 1024). -
Page 5: Specifications
The monitor will draw approximately 3.5 Amps at 12 Volts in operation. Connect the required cables for video signal input and output. (Power must be applied to the V-R1042DP-AFHD for the active loop-though outputs to be activated.) All BNC connectors are rated at 75Ω. -
Page 6: Other Person Is Authorized To Make Any Warranties Other Than Those Described Above, Or To Extend The Duration Of Any Front Panel Features
Front Panel Features Power Button User-Definable Function Buttons Turn the monitor on by pressing the power button. Two user-definable function buttons can be used for In the OFF state, the LED will shine red. The LED direct access to various settings. Functions are will shine green when the monitor is turned on. -
Page 7: Rear Panel Features
VIDEO CONFIGURATION SUBMENU (continued) ■ Aspect Ratio Settings Use to switch between 4:3 and 16:9 aspect ratios. As the V-R1042DP-AFHD monitor has a native resolution of 1024 x 768 RGB pixels, incoming images are automatically scaled to fit the screen: •... -
Page 8: Compatible Input Formats
Compatible Input Formats Format Composite S-Video YPbPr ● ● NTSC ● ● 525i 625i 486p / 59.94 576p / 50 1035i / 60 1035i / 59.94 1080i / 60 1080i / 59.95 1080i / 50 1080psF / 24 1080psF / 23.98 1080p / 30 1080p / 29.97 1080p / 25... -
Page 9: Video Configuration Submenu
VIDEO CONFIGURATION SUBMENU Video Configuration Submenu ■ Color Temperature Presets Use this setting to choose one of three color temperature presets: • D55 (5500K) • D65 (6500K) • D93 (9300K) • USER (Adjustable Color Bias and Gain) ■ Adjusting Color Bias Color Bias Menu Use this submenu to adjust bias of the color response. -
Page 10: Marker Setup Submenu
MARKER SETUP SUBMENU Marker Setup Submenu ■ 16:9 Markers Use this setting to superimpose one of 10 markers on the screen when in 16:9 mode. This setting is disabled when the aspect ratio is set to 4:3, or when Pixel-to-Pixel, Underscan, or H/V Delay is enabled. •...
