Maintenance
■ Screen Cleaning
Periodically clean the screen surface using ammonia-free cleaning wipes (Marshall Part No. V-HWP-K). A clean micro-
fiber cloth can also be used using only non-abrasive and ammonia-free cleaning agents. Do not use paper towels.
Paper towel fibers are coarse and may scratch the surface of the polycarbonate faceplate or leave streaks on the
surface. Antistatic and fingerprint resistant cleaning agents are recommended. Do not apply excessive pressure to the
screen to avoid damaging the LCD.
■ Faceplate Dusting
Dust the unit with a soft, damp cloth or chamois. Dry or abrasive cloths may cause electrostatic charge on the surface,
attracting dust particles. Neutralize static electricity effects by using the recommended cleaning and polishing practice.
Warranty
Marshall Electronics warranties to the first consumer that this V-R201P-AFHD LCD monitor will, under normal use, be free
from defects in workmanship and materials, when received in its original container, for a period of one year from the
purchase date. This warranty is extended to the first consumer only, and proof of purchase is necessary to honor the
warranty. If there is no proof of purchase provided with a warranty claim, Marshall Electronics reserves the right not to
honor the warranty set forth above. Therefore, labor and parts may be charged to the consumer. This warranty does not
apply to the product exterior or cosmetics. Misuse, abnormal handling, alterations or modifications in design or
construction void this warranty. It is considered normal for a minimal amount of pixels, not to exceed three, to fail on the
periphery of the display active viewing area. Marshall Electronics reserves the option to refuse service for display pixel
failure if deemed unobtrusive to effective use of the monitor by our technicians. No sales personnel of the seller or any
other person is authorized to make any warranties other than those described above, or to extend the duration of any
warranties on behalf of Marshall Electronics, beyond the time period described above. Due to constant effort to improve
products and product features, specifications may change without notice.
Marshall Electronics, Inc.
Tel: (800) 800-6608 / (310) 333-0606 • Fax: 310-333-0688
www.LCDRacks.com
Specifications (continued)
1910 East Maple Ave.
El Segundo, CA 90245
•
sales@lcdracks.com
Marshall Electronics
Operating Instructions
16

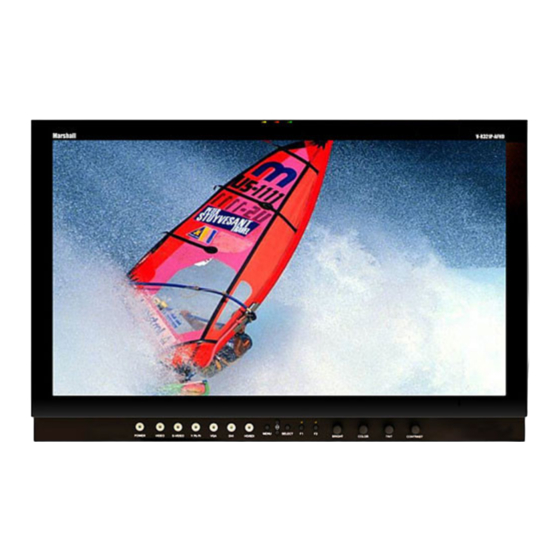

V-R201P-AFHD
SD/HD Widescreen LCD Monitor
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Marshall Electronics SD/HD Widescreen LCD Monitor V-R201P-AFHD
Summary of Contents for Marshall Electronics SD/HD Widescreen LCD Monitor V-R201P-AFHD
- Page 1 Maintenance ■ Screen Cleaning Periodically clean the screen surface using ammonia-free cleaning wipes (Marshall Part No. V-HWP-K). A clean micro- fiber cloth can also be used using only non-abrasive and ammonia-free cleaning agents. Do not use paper towels. Paper towel fibers are coarse and may scratch the surface of the polycarbonate faceplate or leave streaks on the surface.
-
Page 2: Table Of Contents
Contents Product Overview... 3 Features ... 3 Installation and Initial Setup ... 4 Unpacking ... 4 Installation... 4 Connections and Power-On... 4 Front Panel Features ... 5 Power Button ... 5 Input Select Buttons... 5 On-Screen Menu Navigation Buttons ... 5 User-Definable Function Buttons... -
Page 3: System Configuration Submenu
SYSTEM CONFIGURATION SUBMENU Video Configuration Submenu ■ Internal SMPTE Color Bars Use to display internally generated SMPTE split-field color bars. ■ User-Definable Function Buttons Use the FUNCTION 1 and FUNCTION 2 menu items to define each function button on the front panel of the monitor. The following options are available for each button: •... -
Page 4: Video Input
Installation and Initial Setup ■ Unpacking Carefully unpack the V-R201P-AFHD monitor and verify that the following items are included: • V-R201P-AFHD Monitor • Rack Adapter Bracket (Or Desktop Stand if ordered as V-201P-AFHD-DT) • V-LCD23-P-01 Power Supply with 4-Pin XLR Connector •... -
Page 5: Front Panel Features
VIDEO CONFIGURATION SUBMENU (continued) ■ Monochrome Mode Use this setting to enable monochrome mode. Only the luminance of the image will be displayed as a grayscale picture. ■ Blue-Only Mode Use this setting to enable Blue-Only mode. This mode displays only the blue color component of the image, switching off the red and green components. -
Page 6: Rear Panel Features
Rear Panel Features Power Input Tally Connect the 24VDC input to the 4-Pin XLR power input Each tally light is activated via the HD-15 connector by connector. Power can be supplied from the included connecting the corresponding pin to ground. A variety of power supply, or from a variety of DC sources supplying external devices can be used to perform the contact at least 3 Amps at 24 Volts. -
Page 7: Compatible Input Formats
MARKER SETUP SUBMENU (continued) ■ 4:3 Markers Use this setting to superimpose one of 5 markers on the screen when in 4:3 mode. This setting is disabled when the aspect ratio is set to 16:9, or when Pixel-to-Pixel, Underscan, or H/V Delay is enabled. •... -
Page 8: On-Screen Menu
On-Screen Menu STRUCTURE OVERVIEW MARKER 16:9 MARKER SETUP MARKER 4:3 MARKER BACKGROUND CENTER MARKER COLOR TEMP ADJ COLOR BIAS ADJ COLOR GAIN VIDEO CONFIG MONO BLUE ONLY MAIN PIXEL TO PIXEL ASPECT RATIO SCAN DELAY SMPTE BAR FUNCTION 1 FUNCTION 2 SYSTEM CONFIG STATUS DISPLAY LOAD CONFIG...
