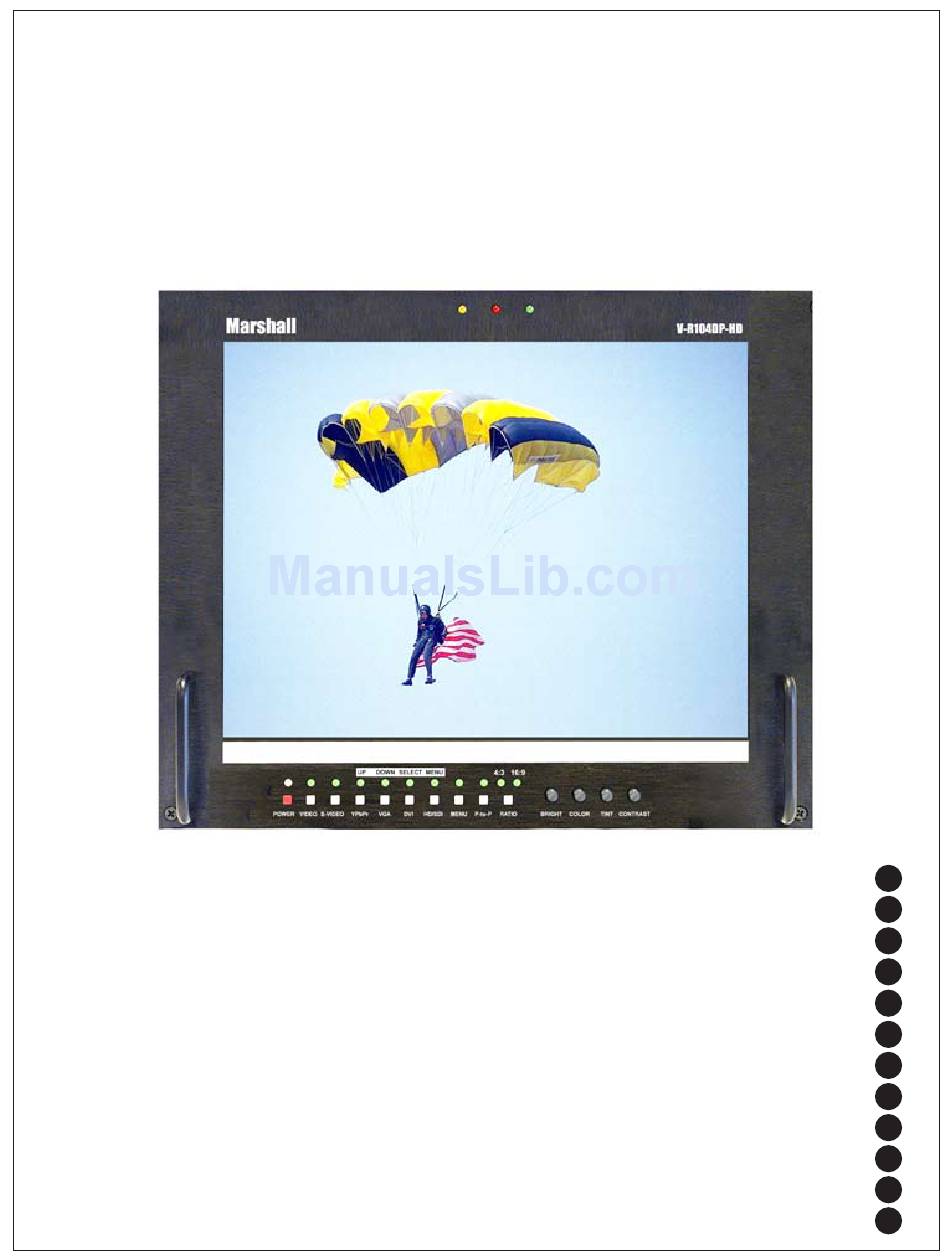

Page 1: Table Of Contents
Marshall Electronics 1910 East Maple Ave. El Segundo, CA 90245 Tel.: 800-800-6608 • 310-333-0606 Fax: 310-333-0688 www.LCDRacks.com Email: sales@lcdracks.com V-R104DP-HD Users Guide Product Overview Features Video - Screen Formats and Frame Rates Electrical Specifications Mechanical Specifications Operational Setup Connectors Faceplate Cleaning... -
Page 2: Product Overview
Product Overview The V-R104DP-HD features our Completely Digital TFT-Megapixel™ high definition TFT/LCD system with 1.44 million pixels. Analog signals are digitized using an advanced 10 bit process with 4x over sampling and adaptive 5 line comb filter plus exacting color space conversion. Video is scaled to fit on screen in the highest resolution using a state of the art LSI that incorporates 6x6 pixel adaptive motion interpolation with precision Gamma correction. -
Page 3: Mechanical Specifications
Mechanical Specifications Dimensions 19.12” w x 8.67” h x 1.5” d (485.7mm x 220.22mm x 38.1mm) V-R104DP-HD Weight 5.5 lbs (2.4 kg) V-PS12-5V-XLR Power Supply Weight 1 lbs (0.45kg) Operational Setup 1. Unpack the V-R104DP-HD and accompanying V-PS12-5V-XLR power supply. Physically inspect for any damage that may have occurred during shipping. Should there be any damage, immediately contact Marshall Electronics at 800-800-6608. If you are not located within the continental United States call +1 310-333-0606. 2. After inspection, install in your desired location of a standard EIA 19-inch equipment rack. Adequate ventilation is required when installed to prevent possible damage to the V-R104DP-HD internal components. 3. Connect required cables for signal input and output. Please note that power must be applied to the V-R104DP-HD for all outputs to be a ctivated. All BNC connectors should be rated for 75Ω. 4. Plug the V-PS12-5V-XLR power supply into the A.C. source 5. Attach twist lock power connection from V-PS12-5V-XLR power supply to the back of the unit. 6. Turn on each of the V-R104DP-HD screens by depressing the power switch located on the front of the unit for each screen. Connectors * HDSDI/SDI Inputs comply to SMPTE - 259M, 292M, SDI - 270Mbs, HDSDI - 1.485Gb/s * Component Inputs comply to SMPTE274M, 294M,295M,296M * Composite Video Inputs comply to SMPTE-170M DVI-I Connector * Tally lamps active when connected to ground Pin#... - Page 4 Table 2 / Video Signals Displayed via DVI and YPrPb connections (x=not available) (HDMI requires adapter to DVI) Y Pr Pb Input Signal Type 16x9 16x9 and aspect 720 x 486 60i 720 x 576 50i 1280 x 720 60P 1280 x 720 50P 1280 x 720 30P 1280 x720 29.97P 1280 x720 25P 1280 x 720 24P 1280 x 720 23.98P 1920 x 1080 60i 1920x1080 59.94i 1920 x 1080 50i 1920 x 1080 30P 1920x1080 29.97P 1920 x 1080 25P 1920 x 1080 24P 1920 x 1080 24Psf V-R104DP-HD Users Guide...
- Page 5 PAL (720 x 576i 50Hz) 1280x720p 60Hz 1280x720p 59.94Hz 1280x720p 50Hz 1280x720p 30Hz 1280x720p 29.97Hz 1280x720p 25Hz 1920x1080p 30Hz 1920x1080p 29.97Hz 1920x1080p 25Hz 1920x1080p 24Hz 1920x1080p 23.98Hz 1920x1080sf 24Hz 1920x1080sf 23.98Hz 1920x1080i 60Hz 1920x1080i 59.94Hz 1920x1080i 50Hz 1920x1035i 60Hz 1920x1035i 59.94Hz Marshall Electronics...
-
Page 6: Faceplate Cleaning
Millersburg, OR 97231 2257 North Penn Road 12800 Highway 13 South, Suite Albuquerque, NM 87199 541-926-2900 / Fax: 541-967-8441 Hatfield, PA 19440-1998 (505) 338-0005 www.discoveryplastics.com 800-203-3419 / 215-822- Savage, MN 55378 2171 800-548-6872 ext.451 Fax: 215-822-3795 Fax: 952-946-0435 www.simco.biz V-R104DP-HD Users Guide... -
Page 7: Optional Accessories
82 W Lithium Battery IDX-E10S V-Mount battery pack with 3 LED power Indicator V-Mount Battery Pack with PowerLink includes 82 W Lithium Battery IDX-E10 accurate Power Status Display and supports with Power Link Digi-View Digital to Analog BC-0909-DA Converts HDSDI to analog Composite Converter Fits all single screen 7.0", 8.4", 10.4" and V-R65P-HD Set of 3 Tripod Mount monitors. Mounting plate can be installed to any side V-LCD70TMB-02 Brackets with screws of monitor enclosure. Compatible with most 1/4-20 threaded mounting devices. Package of 10 non-toxic, antistatic, alcohol and Cleaning Wipes V-HWP-K ammonia free cleaning wipes. Marshall Electronics... -
Page 8: Switch Settings, Adjustments And Indicators
Switch Settings, Adjustments and Indicators Tally Lamps Dry Erase Label Screen aspect ratio switch 4:3 or 16:9 selector and indicators Image Adjustment Controls Note: Tint only functions when NTSC Video or S-Video are selected 4:3 Aspect 16:9 Aspect V-R104DP-HD Users Guide V-R82DP-HD Users Guide... -
Page 9: Menu Functions
3. Pixel to Pixel Function As the native LCD displays of the V-R104DP-HD are 800 pixels wide by 600 dots (RGB pixels) high, it is necessary to change the size of the image to fill the whole screen. Pixel to Pixel mode bypasses the enlargement/shrink of this scaling function and displays the native incoming format. -
Page 10: Warranty
No sales personnel of the seller, nor any other person is authorized to make any war- ranties other than those described above, or to extend the duration of any warranties on behalf of Marshall Electronics, beyond the time period described above.
