9

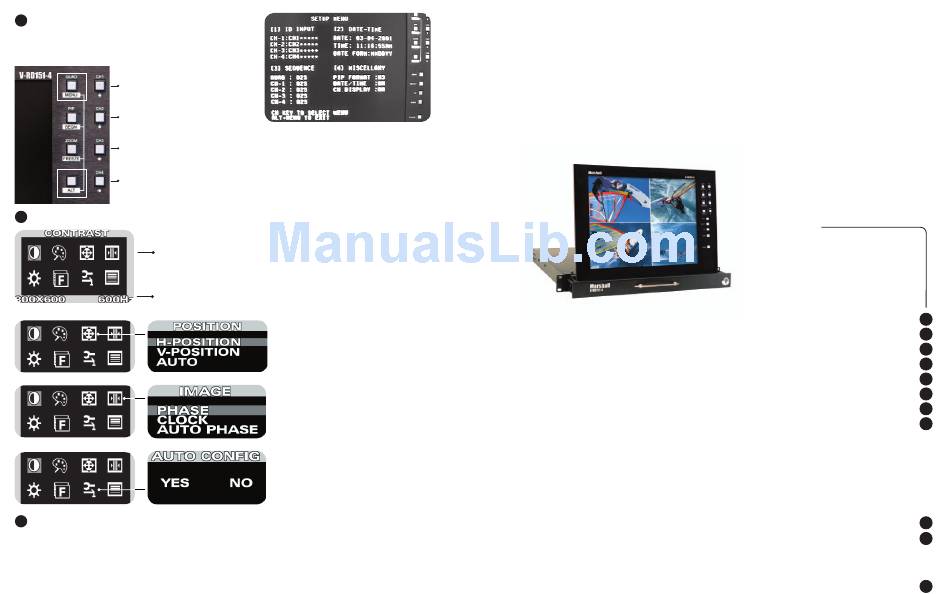

Alternate Menu Functions
Menu is shown by holding down ALT and then pressing the
MENU button. (ALT+MENU). Function selection and cursor
movement is performed with the source selection buttons.
CH1 -
ID Input 5 character
label for each source
CH2 -
Date/Time Setup
CH3 -
Sequence (Off to30 Second) Changes displayed image at programmed
intervals when SEQN function is selected
CH4 - Miscellany.
PIP FORMAT
DATE/TIME-CH DISPLAY
* NOTE: Date/Time and Channel Display overlay is not available in PC ANALOG or S-VIDEO modes
10
Analog PC Menu Functions
System Menu in Analog PC Mode
Menu Selected
* Note: When in PC Analog mode to change the source press the SELECT
button with no OSD is displayed on screen
System Display in Pixels and Frequency
Warranty
11
Marshall Electronics warranties to the first consumer, that this V-RD151-4 rackmount monitor will, under normal use, be free from defects in workmanship
and materials, when received in its original container, for a period of one year from the purchase date.
This warranty is extended to the first consumer only and proof of purchase is necessary to honor the warranty. If there is no proof of purchase provided with
a warranty claim, Marshall Electronics reserves the right, not to honor the warranty set forth above. Therefore, labor and parts may be charged to you.
This warranty does not apply to product exterior and cosmetics. Misuse, abnormal service or handling, improper alterations or modifications in design or con-
struction, voids this warranty. No sales personnel of the seller, nor any other person is authorized to make any warranties other than those described above,
or to extend the duration of any warranties on behalf of Marshall Electronics, beyond the time period described above.
Due to constant effort to improve products and product features, specifications may change without notice.
-
position and number of PIP windows.
-
Characters are displayed on the screen over video images.
PC Display Position Adjust
(Not available in Composite or S-Video mode)
PC Image Phase and Clock Adjust
(Not available in Composite or S-Video mode)
PC Input Automatic Configuration
(Auto config requires signal to be present
on VGA connector)
Marshall Electronics
1910 East Maple Ave.
El Segundo, CA 90245
Tel.: 800-800-6608 • Fax: 310-333-0688
www.LCDRacks.com
Email: sales@lcdracks.com

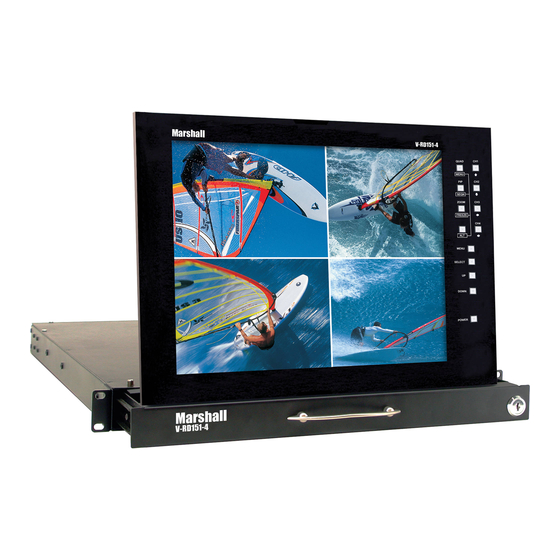

V-RD151-4 4
V-RD151-
Users Guide
Users Guide
Volume adjustment does not function •
Displayed source selection •
MODE adjustment does not function •
System Functions •
Contrast, Color, Brightness Adjust •
Alternate Menu Functions
Analog PC Menu Functions
System Menu in Analog PC Mode •
PC Display Position Adjust (Not available in Composite or S-Video mode) •
PC Input Automatic Configuration •
1
2
3
4
5
6
7
8
System Reset •
OSD Timeout •
OSD Position •
System Info •
9
10
Warranty
11
Advertisement
Table of Contents
Related Manuals for Marshall Electronics V-RD151-4
Summary of Contents for Marshall Electronics V-RD151-4
- Page 1 Warranty Marshall Electronics warranties to the first consumer, that this V-RD151-4 rackmount monitor will, under normal use, be free from defects in workmanship and materials, when received in its original container, for a period of one year from the purchase date.
- Page 2 3. 2 Adjustable Rear Support Brackets 4. 4 Rear Bracket Thumb Screws 2. 2. Unpack the V-RD151-4, mounting hardware and accompanying V-PS12-5V1 power supply. Physically inspect for any damage that may have occurred during shipping. Should there be any dam- age, immediately contact Marshall Electronics at 800-800-6608.
-
Page 3: Input Connectors
6. Attach the twist lock Conxal power connection from V-PS12-5V1 power supply to the back of the drawer. 7. Completely Slide the V-RD151-4 out from the drawer and tilt to your desired viewing angle. 8. Turn on the V-RD151-4 by depressing the power switch located on the front of the unit. Input Connectors... - Page 4 PC Analog - Selects input from the HD15 VGA IN connector. Image is full screen. No DPC functions Composite - Selects input of composite video 1 to 4 plus DPC functions V-RD151-4 USERS GUIDE Volume adjustment does not function S-VHS - Selects input from the S-VIDEO IN connector.
