Page 1: Table Of Contents
Marshall Electronics 1910 East Maple Ave. El Segundo, CA 90245 Tel.: 800-800-6608 • 310-333-0606 Fax: 310-333-0688 www.LCDRacks.com Email: sales@lcdracks.com V-R70P-HDA Users Guide Users Guide Product Overview Standard Accessories Optional Accessories Electrical Specifications Mechanical Specification Faceplate Cleaning Operational Setup Input Connectors... -
Page 2: Product Overview

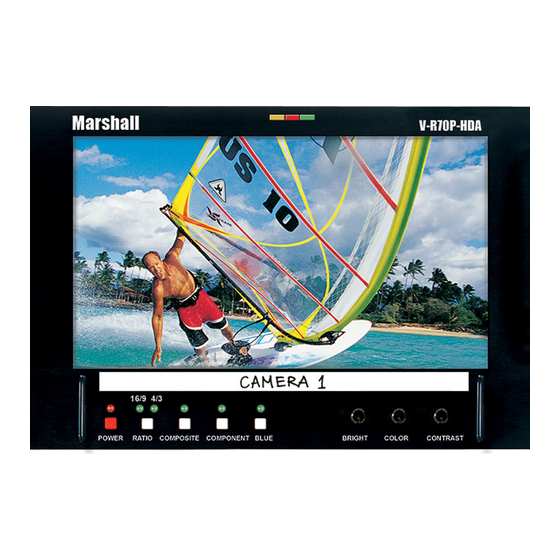

A V-Mount battery adapt- er is also included and the monitor can be powered for over 5 hours with a 50WH battery. The 1.2-million pixel TFT screen has 130 degree viewing angles and incorporates completely digital signal processing to provide image reproduction that exceeds all CRT displays available in a similar form factor. - Page 3 Converts analog Composite, YC, or component to HDSDI/SDI Converts SDI/HDSDI to analog Composite, YC, or Component video Attaches to any side for mount to ¼-20 threaded component Package of 10 non-toxic, antistatic, alcohol and ammonia free cleaning wipes. Marshall Electronics...
-
Page 4: Electrical Specifications
Pixel Response Screen Refresh Rate Backlight Type / Life Brightness System Inputs Active Outputs Available when power is applied to monitor Mechanical Specifi cation Dimensions Approx. Weight Power Consumption Operating Temperature Storage Temperature 7” (6.14”H × 3.27”V) (156.0mm x 83.28mm) 130°H x 120°V... -
Page 5: Faceplate Cleaning
Operational Setup 1. Unpack the V-R70P-HDA and accompanying power supply. Physically inspect for any damage that may have oc- curred during shipping. Should there be any damage, immediately contact Marshall Electronics at 800-800-6608. If you are not located within the continental united states call +1 310-333-0606. -
Page 6: Switch Settings, Functions And Indicators
This warranty is extended to the first consumer only and proof of purchase is necessary to honor the warranty. If there is no proof of purchase pro- vided with a warranty claim, Marshall Electronics reserves the right, not to honor the warranty set forth above. Therefore, labor and parts may be charged to you.
