Maintenance
Screen Cleaning
■
Periodically clean the screen surface using ammonia-free cleaning wipes (Marshall Part No. V-HWP-K). A clean micro-fiber cloth
can also be used using only non-abrasive and ammonia-free cleaning agents. Do not use paper towels. Paper towel fibers are
coarse and may scratch the surface of the polycarbonate faceplate or leave streaks on the surface. Antistatic and fingerprint
resistant cleaning agents are recommended. Do not apply excessive pressure to the screen to avoid damaging the LCD.
Faceplate Dusting
■
Dust the unit with a soft, damp cloth or chamois. Dry or abrasive cloths may cause electrostatic charge on the surface, attracting
dust particles. Neutralize static electricity effects by using the recommended cleaning and polishing practice.
Warranty
Marshall Electronics warranties to the first consumer that this V-R241-IMD-3G LCD monitor will, under normal use, be free from
defects in workmanship and materials, when received in its original container, for a period of one year from the purchase date.
This warranty is extended to the first consumer only, and proof of purchase is necessary to honor the warranty. If there is no
proof of purchase provided with a warranty claim, Marshall Electronics reserves the right not to honor the warranty set forth
above. Therefore, labor and parts may be charged to the consumer. This warranty does not apply to the product exterior or
cosmetics. Misuse, abnormal handling, alterations or modifications in design or construction void this warranty. It is considered
normal for a minimal amount of pixels, not to exceed three, to fail on the periphery of the display active viewing area. Marshall
Electronics reserves the option to refuse service for display pixel failure if deemed unobtrusive to effective use of the monitor by
our technicians. No sales personnel of the seller or any other person is authorized to make any warranties other than those
described above, or to extend the duration of any warranties on behalf of Marshall Electronics, beyond the time period
described above. Due to constant effort to improve products and product features, specifications may change without notice.
Tel: (800) 800-6608 / (310) 333-0606 • Fax: 310-333-0688
www.LCDRacks.com
32
Marshall Electronics, Inc.
1910 East Maple Ave.
El Segundo, CA 90245
•
sales@lcdracks.com

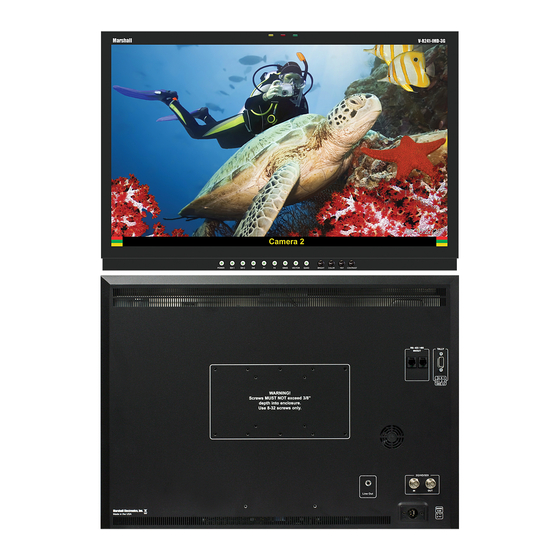

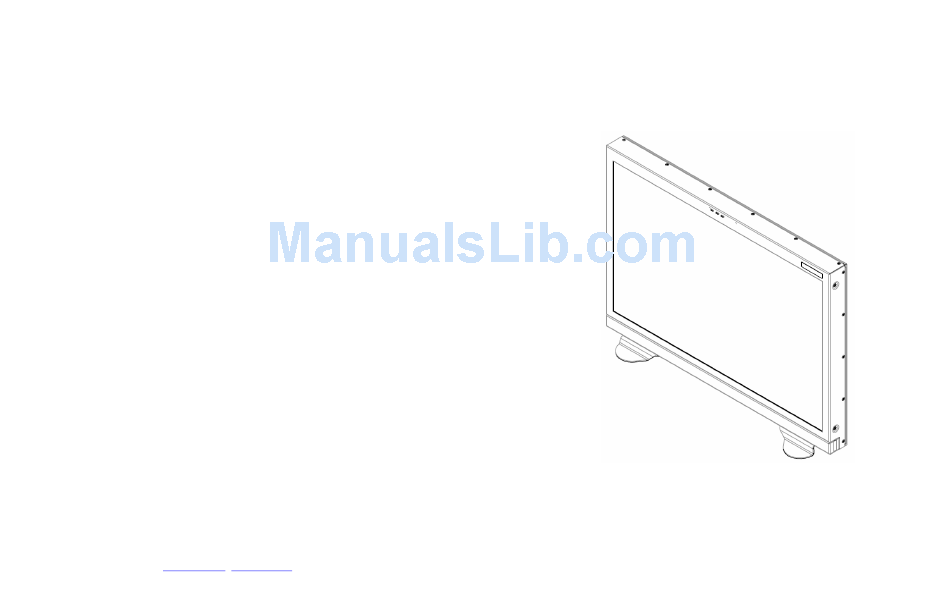

Marshall Electronics
V-R241-IMD-3G
Model No.
High Definition LCD Monitor with In-Monitor Display
Operating Instructions
Edition 3 Revision 2P
1
Advertisement
Table of Contents
Related Manuals for Marshall Electronics V-R241-IMD-3G
Summary of Contents for Marshall Electronics V-R241-IMD-3G
-
Page 1: Operating Instructions
Warranty Marshall Electronics warranties to the first consumer that this V-R241-IMD-3G LCD monitor will, under normal use, be free from defects in workmanship and materials, when received in its original container, for a period of one year from the purchase date. - Page 2 This page intentionally left blank...
-
Page 3: Table Of Contents
Table of Contents Dimensions Installation and Initial Setup ------------------------------------------------------------------------------------------------------5 Top and Front Panel Features ----------------------------------------------------------------------------------------------------6 Rear Panel Features-----------------------------------------------------------------------------------------------------------------7 Compatible Input Formats---------------------------------------------------------------------------------------------------------8 MAIN MENU AND NAVIGATION--------------------------------------------------------------------------------------------------9 Using the menu buttons..................................9 Using the RotoMenu knob ..................................9 MARKER SETUP SUBMENU..................................10 VIDEO CONFIGURATION SUBMENU..............................12 COLOR CONFIGURATION SUBMENU..............................15 SYSTEM CONFIGURATION SUBMENU ..............................16 DEINTERLACER SUBMENU...................................18... - Page 4 Specifications PANEL ■ TALLY/GPI HARDWARE INTERFACE (HD-15) Screen Size 24.1” Diagonal ■ Display Area (h x v) 518.4 x 324.0 mm Activation requires contact closure of pin to ground on the This page intentionally left blank Pixels 1920 x RGB x 1200 HD-15 connector: Viewing Angle(h x v) 178°...
-
Page 5: Installation And Initial Setup
Plug the DC Power Supply into an AC power source (100-240 V @ 50/60 Hz). Attach the Power connector to the back of the monitor. Connect the required cables for video signal input and output. (Power must be applied to the V-R241-IMD-3G for the active loop-though output to be activated.) The monitor defaults to ‘ON’... -
Page 6: Top And Front Panel Features
and buttons to scroll through character options. Press ENTER to choose a character. Tally Source ■ The V-R241-IMD-3G tally (OSD and LED) can be controlled in a variety of different ways. Use the Tally Source setting to choose how tally is controlled: Standard Use the Standard setting to control tally via contact closure on the HD-15 tally interface. -
Page 7: Rear Panel Features
IMD Protocol ■ Rear Panel Features Use the IMD Protocol menu option to choose the protocol with which the V-R241-IMD-3G receives remote commands. Currently, four protocols are available. Contact Marshall Electronics for the latest protocol compatibility. Image Video Use the Image Video protocol setting when controlling the IMD from an Image Video tally controller (e.g. TSI-1000) or other controlling device which utilizes the Image Video protocol. -
Page 8: Compatible Input Formats
■ The V-R241-IMD-3G features an In-Monitor Display (IMD) with the ability to display on-screen text and tally in three colors. IMD text, color, and alignment can be assigned to each screen locally using menu options (see below). Alternately, IMD text and tally can be remotely controlled via the RS-422/485 serial interface using several industry-standard protocols, including TSL v4.0 and... -
Page 9: Main Menu And Navigation
AUDIO CONFIGURATION SUBMENU MAIN MENU AND NAVIGATION Use the Audio Configuration submenu to Access and navigate the main menu using the 4 menu buttons or the RotoMenu™ knob: ■ Audio Bars The IMD-3G monitor series provides audio level indicators for SDI streams with embedded audio. Support for up to 16 channels (labeled as Groups 1, 2, 3 and 4) is provided. -
Page 10: Marker Setup Submenu
CC CONFIGURATION SUBMENU MARKER SETUP SUBMENU Use the CC Configuration submenu to select the type of captioning stream you would like to decode. Use the Marker Setup submenu to select various types of markers and settings in 4:3, 16:9, or Full Screen mode. IMD Configuration Submenu Marker Setup Submenu Marker Enable... - Page 11 When the Tally Source is set to TSL/MEI 422, OSD Tally can be set to Off or IMD: • On-screen tally is disabled 4:3 Markers ■ • Red, yellow, and green tally is displayed according the protocol commands. Green, red, and yellow colors are shown individually on either the bottom left or right of the screen.
-
Page 12: Video Configuration Submenu
OSD Tally ■ Use this setting to choose how tally is displayed on the screen. The available OSD Tally options depend on the Tally Source VIDEO CONFIGURATION SUBMENU selected in the IMD Configuration submenu (see page 22). Use the Video Configuration submenu to select various video settings such as monochrome mode or blue-only mode. When the Tally Source is set to Standard (contact closure), OSD Tally can be set to Off, RGY, RG, or GR: •... - Page 13 Aspect Ratio Settings ■ Use this menu option to switch between several aspect ratio settings. As the V-R241-IMD-3G monitor has a native resolution of 1366x768 RGB pixels, incoming images are automatically scaled to fit the screen: • In 4:3 mode, images are scaled up or down to fill the maximum 4:3 portion of the screen. IMD text and time code are superimposed on the lower portion of the image.
- Page 14 Use the Film Mode setting to limit the film mode detection to a specific cadence. • Auto Deinterlacer automatically identifies the film cadence • 2:2 only Deinterlacer only recognizes content originating in 25fps, and uses 2:2 film mode. 24fps content is ignored.
-
Page 15: Color Configuration Submenu
DEINTERLACER SUBMENU COLOR CONFIGURATION SUBMENU Use the Deinterlacer submenu to control the type of deinterlacing performed on interlaced input signals. Use the Color Configuration submenu to adjust the color temperature of the display. System Configuration Submenu Color Configuration Submenu Ctemp/Gamma ■... -
Page 16: System Configuration Submenu
Delete Gamma • Pixel to Pixel Enable/disable Pixel-to-Pixel mode ■ • Ctemp/Gamma Rotate amongst color temperature settings • Blue Only Enable/disable Blue Only mode Use this setting to Delete any custom Gamma tables that have been loaded to the monitor’s memory. Note: Once a setting is •...
