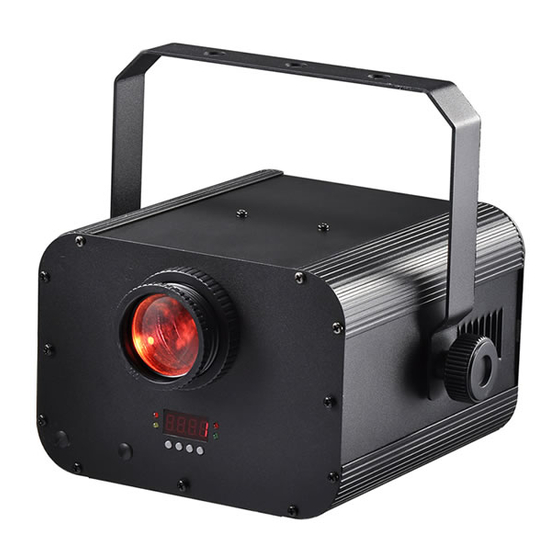

ACME ColorTec 250 LED-CC60 User Manual
  1. Manuals
  2. Brands
  3. ACME Manuals
  4. Lighting Equipment
  5. ColorTec 250 LED-CC60
  6. User manual

ACME ColorTec 250 LED-CC60 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Guide
Please read the instruction carefully before using

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ColorTec 250 LED-CC60 and is the answer not in the manual?

Questions and answers

Related Manuals for ACME ColorTec 250 LED-CC60

Summary of Contents for ACME ColorTec 250 LED-CC60

  • Page 1 User Guide Please read the instruction carefully before using...

  • Page 2: Table Of Contents

    Contents 1. Safety Instructions..........................2 2. Features ............................3 3. Technical Specifications........................3 4. How To Set The Unit ........................4 4.1 Control Panel..........................4 4.2 Main Function ..........................5 5. How To Set The Unit ........................10 5.1 Master/Slave Built In Preprogrammed Function ..............10 5.2 Easy Controller ........................11 5.3 DMX Controller........................

  • Page 3: Safety Instructions

    1. Safety Instructions Please read the instructions carefully which includes important information about the installation, operation and maintenance. Please keep this User Guide for future consultation. If you sell the fixture to another user, be sure that they also receive this instruction booklet. Cautions: All fixtures are intact from the manufacturer, please operate follow up the user manual, artificial fault are not under guarantee repair.

  • Page 4: Features

    The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly damaged. Do not open the fixture as there are no user serviceable parts inside. Never try to repair the fixture by yourself. Repairs carried out by unskilled people can lead to damage or malfunction. Please contact the nearest authorized technical assistance center.

  • Page 5: How To Set The Unit

    4. How To Set The Unit 4.1 Control Panel 1. Display Show the various menus and the selected functions. Button 2.MENU To select the programming functions To go backward in the selected functions 3.DOWN 4.UP To go forward in the selected functions 5.ENTER To confirm the selected functions DMX input present...

  • Page 6: Main Function

    4.2 Main Function To select any of the given functions, press the MENU button up to when the required one is showing on the display. Select the function by the ENTER button and the display will blink. Use the DOWN and UP button to change the mode. Once the required mode has been selected, press the ENTER button to setup or it will automatically return to the main functions without any change after idling 8 seconds.
  • Page 8 DMX 512 Address Setting Select the , press the ENTER button and the display will blink. Use the DOWN and UP button to change the DMX512 address. Once the address has been selected, press the ENTER button to setup or automatically return to the main functions without any change after 8 seconds. To go back to the functions without any change press the MENU button again.
  • Page 9 Dimmer Calibrate Select the , press the ENTER button and the display will blink. Use the DOWN and UP button to calibrate the dimmer for a maximum output from (limited to 70% of the really max. output) to (maximum output is not limited). Once the mode has been selected, press the ENTER button to setup, to go back to the functions without any change press the MENU button again.
  • Page 10 LED Display Select the , press the ENTER button and the display will blink. Use the DOWN and UP button to select the (LED on) or (LED off). Once the mode has been selected, press the ENTER button to setup or automatically return to the main functions without any change after 8 seconds.

  • Page 11: How To Set The Unit

    PRO Defaults Select the , press the ENTER button and the display will blink. Use the DOWN and UP button to select the (run built-in program to set the fixture to factory settings) or Press the ENTER button to setup, to go back to the functions without any change press the MENU button again.

  • Page 12: Easy Controller

    5.2 Easy Controller The easy remote control is used only in master/slave mode. By connecting to the 1/4” microphone jack of the first unit, you will find that the remote control on the first unit will control all the other units functions press the MENU button again.

  • Page 13: Dmx 512 Configuration

    5.4 DMX 512 Configuration 3/8 Channels Mode:...

  • Page 14: Dmx512 Connection

    5.5 DMX512 Connection The DMX 512 is widely used in intelligent lighting control, with a maximum of 512 channels. 1. If you using a controller with 5 pins DMX output, you need to use a 5 to 3 pin adapter-cable. 2.

  • Page 15: Troubleshooting

    3 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+) 5 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+) 6. Troubleshooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A.

  • Page 16: Cleaning And Maintenance

    E. One of the channels is not working well 1. The stepper motor might be damaged or the cable connected to the PCB is broken. 2. The motor’s drive IC on the PCB might be out of condition 7. Cleaning And Maintenance The cleaning must be carried out periodically to optimize light output.

  • Page 19: Declaration Of Conformity

    Declaration of Conformity We declare that our products (lighting equipments) comply with the following specification and bears CE mark in accordance with the provision of the Electromagnetic Compatibility (EMC) Directive 2004/108/EC. EN55103-1: 2009 ; EN55103-2: 2009; EN61000-3-2: 2006 + A1:2009 + A2:2009; EN61000-3-3: 2008. &...
  • Page 20 Innovation, Quality, Performance...
