Summary of Contents for ACME Colortec 250

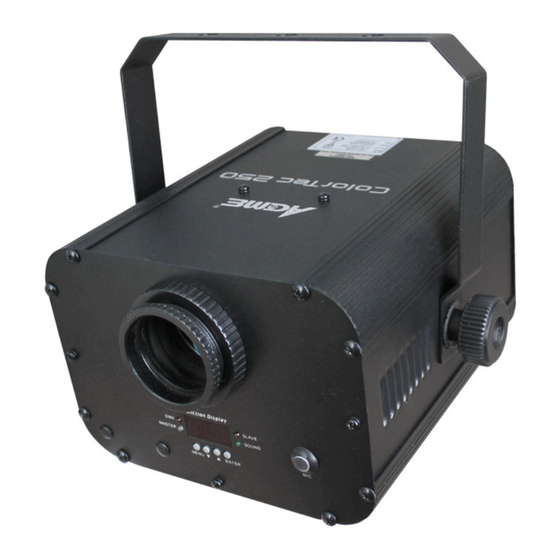

- Page 1 Colortec 250 Colour Changer Order code: COLO01 User Guide Please read the instruction carefully before using...
-
Page 2: Table Of Contents
Contents 1. Safety Instructions..........................2 2. Features ............................3 3. Technical Specifications ........................3 4. How To Set The Unit ........................4 4.1 Control Panel..........................4 4.2 Main Function ..........................5 5. How To Set The Unit ........................9 5.1 Master/Slave Built In Preprogrammed Function ..............10 5.2 Easy Controller ........................10 5.3 DMX Controller........................10 5.4 DMX 512 Configuration......................11 5.5 DMX512 Connection.......................12... -
Page 3: Safety Instructions
1. Safety Instructions Please read the instructions carefully which includes important information about the installation, operation and maintenance. Please keep this User Guide for future consultation. If you sell the fixture to another user, be sure that they also receive this instruction booklet. Cautions: ... -
Page 4: Features
Do not open the fixture as there are no user serviceable parts inside. Never try to repair the fixture by yourself. Repairs carried out by unskilled people can lead to damage or malfunction. Please contact the nearest authorized technical assistance center. ... -
Page 5: How To Set The Unit
4. How To Set The Unit 4.1 Control Panel 1. Display Show the various menus and the selected functions. Button 2.MENU To select the programming functions 3.DOWN To go backward in the selected functions 4.UP To go forward in the selected functions 5.ENTER To confirm the selected functions 6.DMX... -
Page 6: Main Function
4.2 Main Function To select any of the given functions, press the MENU button up to when the required one is showing on the display. Select the function by the ENTER button and the display will blink. Use the DOWN and UP button to change the mode. Once the required mode has been selected, press the ENTER button to setup or it will automatically return to the main functions without any change after idling 8 seconds. - Page 7 DMX 512 Address Setting Select the , press the ENTER button and the display will blink. Use the DOWN and UP button to change the DMX512 address. Once the address has been selected, press the ENTER button to setup or automatically return to the main functions without any change after 8 seconds. To go back to the functions without any change press the MENU button again.
- Page 8 Split Colour Mode Select the , press the ENTER button and the display will blink. Use the DOWN and UP button to select the (Split colour mode) or (normal). Once the mode has been selected, press the ENTER button to setup, to go back to the functions without any change press the MENU button again.
- Page 9 Blackout Mode Select the , press the ENTER button and the display will blink. Use the DOWN and UP button to select the (yes blackout) or (no blackout) mode. Once selected, press the ENTER button to setup or automatically return to the main functions without any change after 8 seconds.
-
Page 10: How To Set The Unit
Fixture Hours Select the , press the ENTER button and the display will show the number of working hours of the unit. To go back to the functions press the MENU button again. Software version Select the , press the ENTER button and the display will show the version of software of the unit. -
Page 11: Master/Slave Built In Preprogrammed Function
5.1 Master/Slave Built In Preprogrammed Function By linking the units in master/slave connection, the first unit will control the other units to give an automatic, sound activated, synchronized light show. This function is good when you want an instant show. 2-light show (slave mode), means the unit works normally and... -
Page 12: Dmx 512 Configuration
5.4 DMX 512 Configuration 3/8 Channels Mode:... -
Page 13: Dmx512 Connection
5.5 DMX512 Connection The DMX 512 is widely used in intelligent lighting control, with a maximum of 512 channels. 1. If you using a controller with 5 pins DMX output, you need to use a 5 to 3 pin adapter-cable. 2. -
Page 14: Troubleshooting
6. Troubleshooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A. The unit does not work, no light and the fan does not work 1. Check the connection of power and main fuse. 2. -
Page 15: Cleaning And Maintenance
7. Cleaning And Maintenance The cleaning must be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates: moist, smoky or particularly dirty surrounding can cause greater accumulation of dirt on the fixture. Clean with lint-free cloth using normal glass cleaning liquid. - Page 16 Declaration of Conformity We declare that our products (lighting equipments) comply with the following specification and bears CE mark in accordance with the provision of the Electromagnetic Compatibility (EMC) Directive 2004/108/EC. EN55103-1: 2009 ; EN55103-2: 2009; EN61000-3-2: 2006 + A1:2009 + A2:2009; EN61000-3-3: 2008. &...
- Page 17 Innovation, Quality, Performance...
