Loop amplifier with AutoScart and loop pad/sofa loop
Univox
Loop pad
Part No Description
203340
Univox DLS-33TV, Loop amplifier with AutoScart, TV Sync and loop pad
203340S Univox DLS-33TV, Loop amplifier with AutoScart, TV Sync and sofa loop
203341P Univox DLS-33TV UK, Loop amplifier with AutoScart, TV Sync and loop pad
203341S Univox DLS-33TV UK, Loop amplifier with AutoScart, TV Sync and sofa loop
203342
Univox DLS-33TV, Loop amplifier with AutoScart, TV Sync, loop pad and RCA cable
Univox DLS-33TV

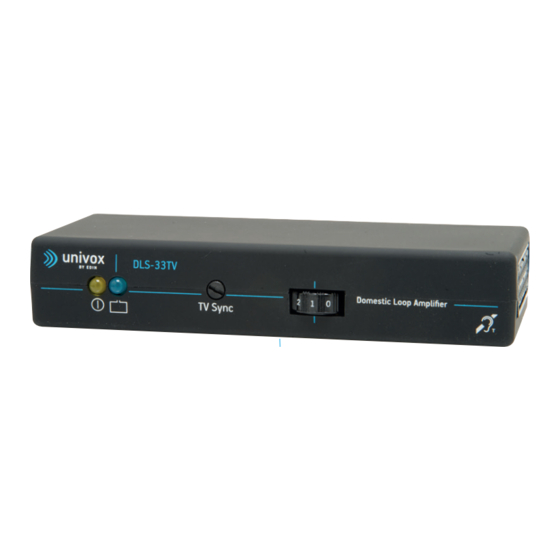

DLS-33TV Loop amplifier
®
User Guide
Sofa loop
1
Advertisement
Table of Contents
Related Manuals for Univox DLS-33TV
Summary of Contents for Univox DLS-33TV
-
Page 1: User Guide
Univox DLS-33TV, Loop amplifier with AutoScart, TV Sync and loop pad 203340S Univox DLS-33TV, Loop amplifier with AutoScart, TV Sync and sofa loop 203341P Univox DLS-33TV UK, Loop amplifier with AutoScart, TV Sync and loop pad 203341S Univox DLS-33TV UK, Loop amplifier with AutoScart, TV Sync and sofa loop... -
Page 2: Table Of Contents
Environment ....................7 Accessories ....................8 Introduction Thank you for having chosen a Univox® product. We hope that you will be satisfied! Univox® DLS-33TV is a complete loop amplifier package for TV and other audio equipment for users of T-coil equipped hearing aids. -
Page 3: About Univox® Dls-33Tv
(Euroconnector), as well as two extra ports that can be connected to external microphones or other audio sources, such as radio or MP3 player. The DLS-33TV model can compensate for the audio time delay that ‘flat’ televisions often have. The DLS-33TVpackage contains the following components: • Loop amplifier with automatic Scart connection... -
Page 4: Connecting The Loop Pad/Sofa Loop To The Amplifier
IN inputs (4) in the DLS-33(SC)/DLS-33TV(SC). 3. A third way of transmitting the sound from the TV to the DLS-33TV is to connect the electret microphone 13A to any of the IN inputs (4). The microphone can then be attached to the TV loudspeaker. -
Page 5: Connecting Other Signal Sources
If required, you can adjust the volume with the control (7) on the front of the amplifier. This usually only needs to be done once, as the DLS-33TV is equipped with an automatic volume control. Advertising spots can sometimes sound louder, which is normal. -
Page 6: Trouble-Shooting
3. Do not forget to select the T or MT setting on the hearing aid. If the indicator lamps are on as they should be, there may be a problem with the hearing aid. Series connection TV / DLS-33TV / Satellite / Digital box / Video Remove the TV Scart cable and... -
Page 7: Technical Information
Technical information Univox® DLS-33TV fulfils the norms and requirements stipulated in the international standard IEC 60118-4. For further information, please refer to our product data sheet/brochure and CE certificate which can be downloaded at www.univox.eu, Downloads. If required, spare part lists and other technical information can be ordered at support@edin.se. -
Page 8: Accessories
581050 Tie clip microphone, 3.5mm male, cable=1.1m Univox by edin, the world’s leading expert and producer of high quality hearing loop systems, created the very first true loop amplifier 1969. Ever since our mission is to serve the hearing community with the highest degree of service and performance with strong focus on Research and Development for new technical solutions.
