How to connect a 1-turn / 2-turn loop
Strap settings for Inputs 1 & 2
Disconnect the mains power before removing the cover!
IN1
Phantom power on (Default): S1 & S2 closed. Phantom power off: S1 & S2 open.
Microphone sensitivity (Default): S3 open. Line sensitivity: S3 closed.
IN2
Phantom power on: S5 & S6 closed. Phantom power off (Default): S5 & S6 open.
Microphone sensitivity: S4 open. Line sensitivity (Default): S4 closed.
Page 4
How to connect unbalanced / balanced input
1-turn loop
2-turn loop
Bo EDIN AB
Telephone
Stockby Hantverksby 3
+46 8 7671818
SE-181 75 LIDINGÖ
Telefax
Sweden
+46 8 7671820
Unbalanced
Balanced
Shield
Signal to pin 2 or 3
WARNING!
Live terminals enclosed!
E-mail
info@edin.se
Website
www.edin.se

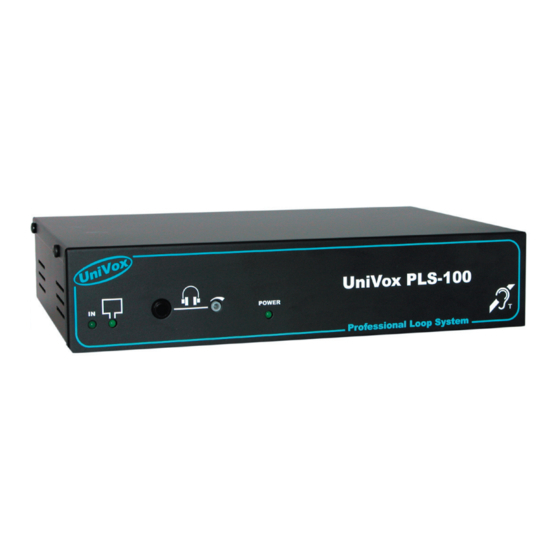

UniVox PLS-100
UniVox
UniVox
Coverage area 170m² (free fi eld)
according to IEC 60118-4:2006
PLS-100
®
®
®
®
Loop amplifi er 170m
2
Installation Guide
2008-06-27
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Univox PLS-100
Summary of Contents for Univox PLS-100
- Page 1 UniVox UniVox UniVox PLS-100 PLS-100 ® ® ® ® Loop amplifi er 170m Installation Guide How to connect a 1-turn / 2-turn loop How to connect unbalanced / balanced input Unbalanced Balanced 1-turn loop 2-turn loop Shield Signal to pin 2 or 3 Coverage area 170m²...
- Page 2 ® PLS-100 has 2 line outputs; I. = LINE OUT 0dBm without the input AGC activated (linear), and J. SLS 0dBm with PLS-100 has 2 line outputs; I. = LINE OUT 0dBm without the input AGC activated (linear), and J. SLS 0dBm with the AGC-function activated.
