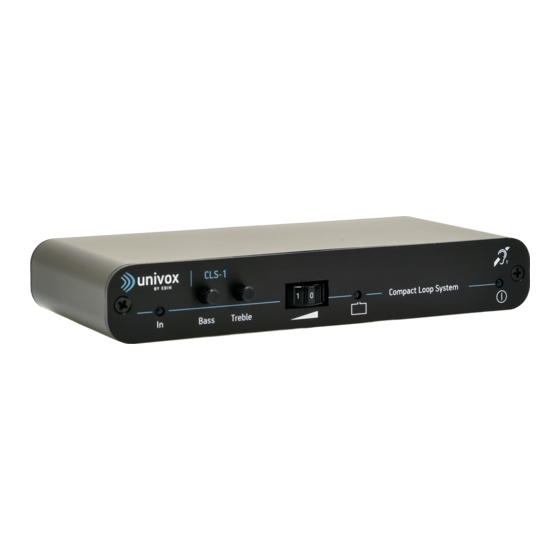

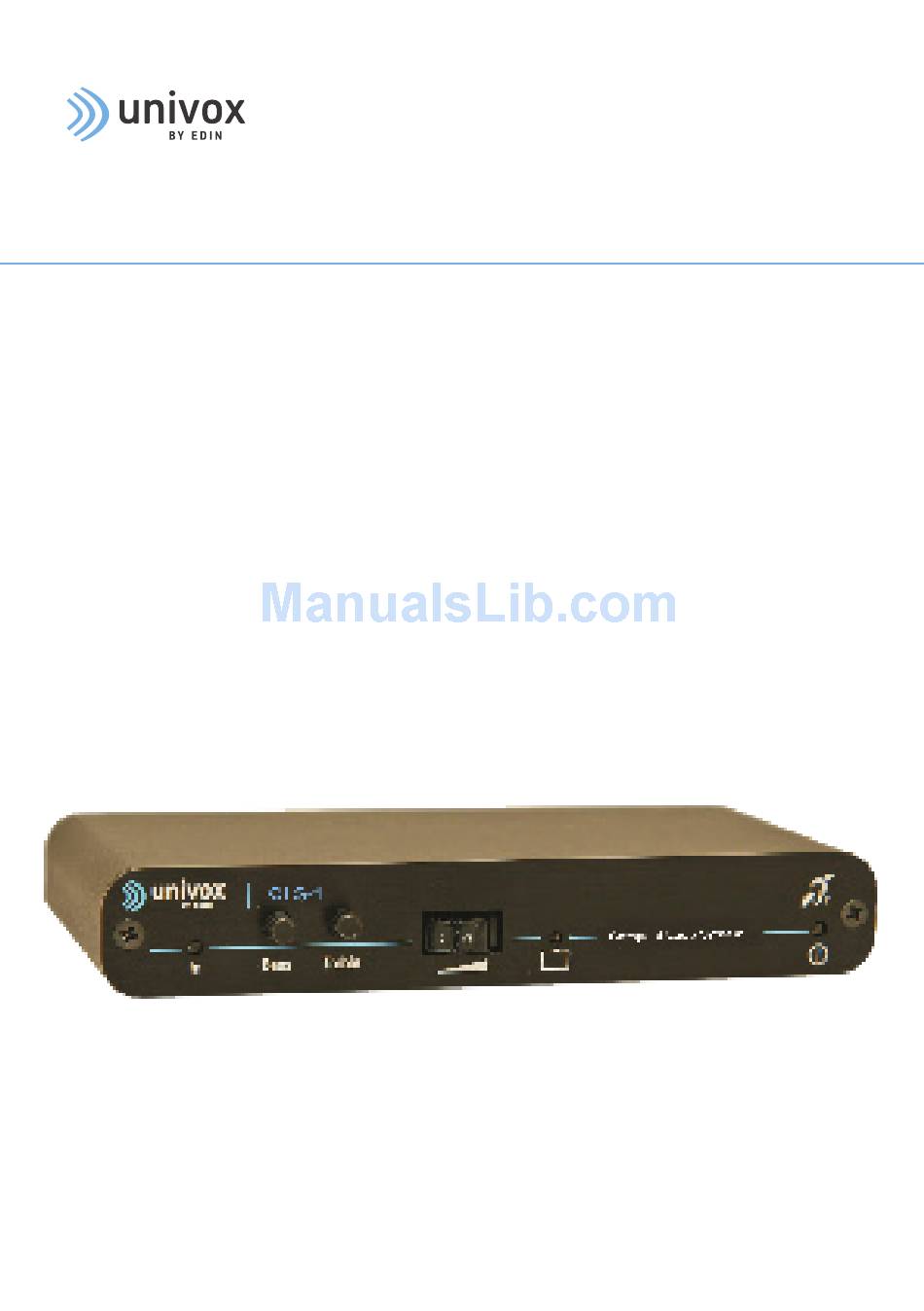

- Page 1 Univox® CLS-1 Compact and powerful induction loop amplifier for TV/music/microphone User Guide Art.nr. 202052...
-
Page 2: Table Of Contents
Installation ........................4 Place the amplifier and connect the chosen loop solution ......4 Connect Univox® CLS-1 to your TV and/or other sound source ....5 Adjusting sound level, tone and microphone sensitivity ........ 6 Listen to music with headphones ................7 Indication lights and controls .................. -
Page 3: Introduction
Then complete the installation by connecting your choice of loop pad, sofa loop cable, room loop cable and/or headphones. The Univox® CLS-1 box contains a hearing loop driver and switched power supply as well as the chosen loop solution. -
Page 4: Installation
Installation Switched Head- Room loop Microphone power phones Loop pad/ Stereo/ Microphone TV/Stereo supply Micro- sensitivity sofa loop phone Place the hearing loop driver and connect the chosen loop solution Place the loop driver in a suitable place near the TV/stereo. If needed, use the velcro pads included to fasten the loop driver to the side or back of the TV. -
Page 5: Connect Univox® Cls-1 To Your Tv And/Or Other Sound Source
Connect Univox® CLS-1 to your TV and/or other sound source Univox® CLS-1 has two inputs (3.5mm) that can be used to connect your TV, stereo or other sound source and a special microphone input (3.5mm), which makes it possible to pick up the sound from the speaker of the TV. -
Page 6: Adjusting Sound Level, Tone And Microphone Sensitivity
Microphone If a microphone will be used, for example to make it possible for someone else to talk to you while using the loop, it should be connected to the special microphone input (Mic). The microphone shall be an electret type microphone (13T, see section Accessories). It’s also possible to pick up TV or stereo sound by attaching a special microphone on the speaker grid (13A, see section Accessories). -
Page 7: Listen To Music With Headphones
(counter clockwise) to avoid poor sound intelligibility. Listen to music with headphones Univox® CLS-1 with its built-in automatic gain control (AGC) is developed for superior speech intelligibility when used as a loop driver. However, while listening to music with your hearing aid/s in T position, the sound might be unsatisfactory. -
Page 8: Indication Lights And Controls
Indication lights and controls There are three blue LED’s on the front panel to indicate that all functions of the hearing loop driver work in a proper way. Indication Bass Treble Volume Indication Indication microphone control control mains control loop current sensitivity power Mains power... -
Page 9: Security/Warranty
Only use the power adapter supplied with the unit. If the power adapter or cable is damaged, replace with a genuine Univox part. Power adapter must be connected to a mains outlet close to the amplifier and easily accessible. -
Page 10: Service
Please follow existing disposal regulations in your country. If you respect these instructions you ensure human health and environmental protection. Technical data Correctly installed Univox® CLS-1 fulfils the demands of the international standard IEC 60118-4:2006. For additional information, please refer to product data sheet/brochure and CE certificate which can be downloaded from www.Univox.eu. -
Page 11: Accessories
283240 Room loop cable roll, 0,75mm , incl cable clips, light grey, cable=30m 289002 Adaptor cable for car cigarette lighter for Univox CLS-1 281015 Audio cable, 3.5mm male to two RCA male, cable=1.5m 281041 HDA-2M D/A Converter incl. optical cable 282007 Ramification cable, 2 pin DIN male to two 2 pin DIN female, cable=0.2m... - Page 12 Distributor Univox by edin, the world’s leading expert and producer of high quality hearing loop systems, created the very first true loop amplifier 1969. Ever since our mission is to serve the hearing community with the highest degree of service and performance with strong focus on Research and Development for new technical solutions.
