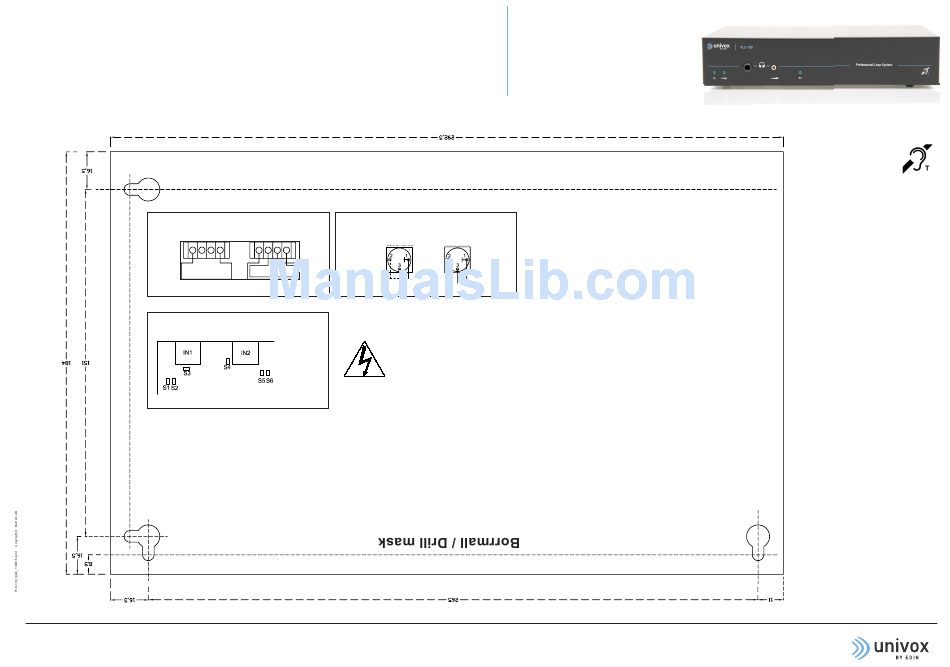

How to connect a 1-turn / 2-turn loop
1-turn loop
Strap settings for Inputs 1 & 2
Disconnect the mains power before removing the cover!
IN1
Phantom power on (Default): S1 & S2 closed. Phantom power off: S1 & S2 open.
Microphone sensitivity (Default): S3 open. Line sensitivity: S3 closed.
IN2
Phantom power on: S5 & S6 closed. Phantom power off (Default): S5 & S6 open.
Microphone sensitivity: S4 open. Line sensitivity (Default): S4 closed.
Bo Edin AB
Stockby Hantverksby 3, SE-18175 Lidingö, Sweden
Visit
Förrådsvägen 2 B, SE-18141 Lidingö, Sweden
How to connect unbalanced / balanced input
Unbalanced
2-turn loop
Signal to pin 2 or 3
WARNING!
Live terminals enclosed!
Phone
+46 8 767 18 18
E-mail
info@edin.se
Fax
+46 8 767 18 20
Internet
edin.se • univox.eu

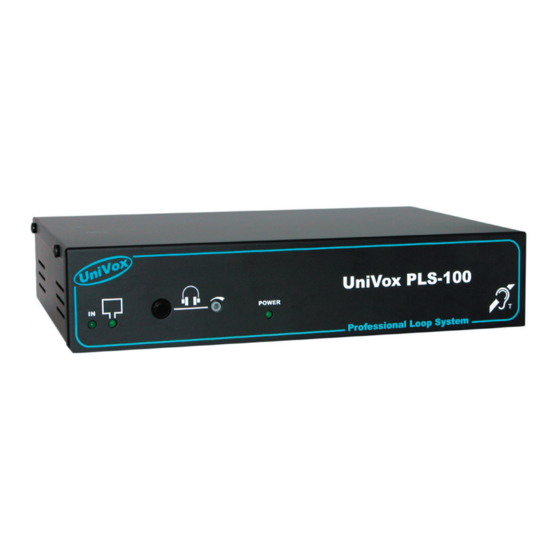

PLS-100
Univox Loop Amlifier
Installation Guide
Maximum area coverage in free field conditions:
•
With 4 parallel multi-loops up to 450m²
Balanced
•
With a perimeter loop 1:1 room ratio up to 300m²
•
With a perimeter loop 1:3 room ratio up to 420m²
Shield
Shield
Note that metallic interference will impact on the coverage by
Signal to pin 2 and 3
30% to total dampening depending on loop wire placement.
Hearing excellence since 1965
Advertisement
Table of Contents
Related Manuals for Univox PLS-100
Summary of Contents for Univox PLS-100
-
Page 1: Installation Guide
PLS-100 Univox Loop Amlifier Installation Guide How to connect a 1-turn / 2-turn loop How to connect unbalanced / balanced input Maximum area coverage in free field conditions: • With 4 parallel multi-loops up to 450m² Unbalanced Balanced • With a perimeter loop 1:1 room ratio up to 300m²... - Page 2 IN2 otherwise than default, remove the cover and set the switches S1-6 according to the instruction at page 4. Connect line outputs Univox ® PLS-100 has 2 line outputs; I. = LINE OUT 0dBm without the input AGC activated (linear), and J. SLS 0dBm with the AGC-function activated. Connect mains power Univox FSM 2.0...
