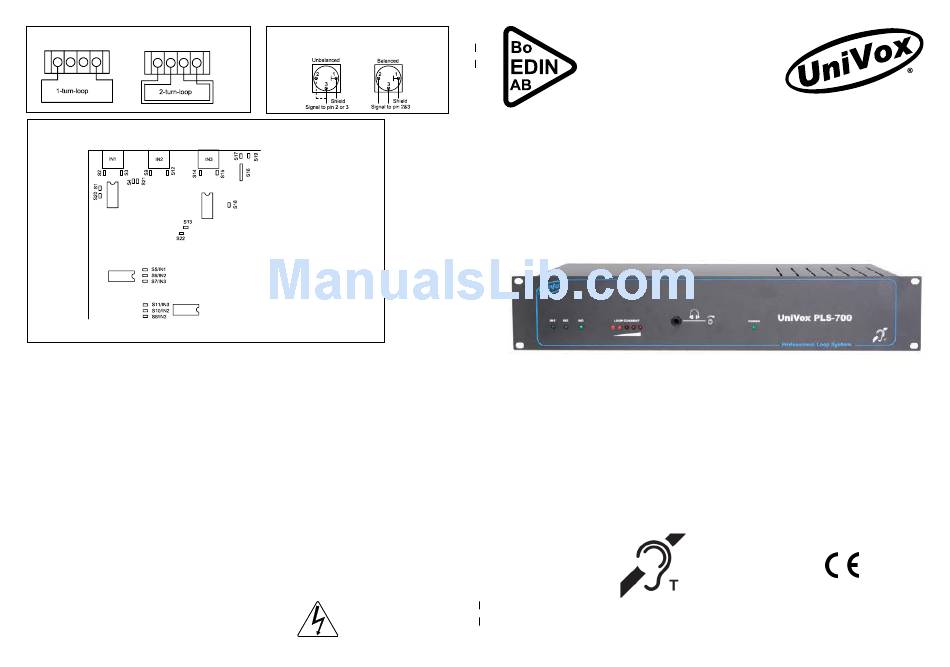

Univox PLS-700 Installation Manual

How to connect a 1-turn / 2-turn loop
Strap settings for Inputs 1-3 and for the AGC-function
Disconnect the mains power before removing the cover.
IN1:
S2&S3: open/closed = Phantom voltage pin 2&3 off/on. (Default=on)
S1&S20: open/closed = Microphone level/Line level. (Default=Microphone)
IN2:
S9&S12: open/closed = Phantom voltage pin 2&3 off/on. (Default=off)
S4&S21: open/closed = Microphone level/Line level. (Default=Line)
IN3:
S14&S15: open/closed = Phantom voltage pin 2&3 off/on. (Default=off)
S13&S22: open/closed = Microphone level/Line level. (Default=Line)
AGC:
S18: open/closed = AGC off/AGC on. (Default=AGC on)
Priority:
S8(IN1), S10(IN2) & S11(IN3): closed = The input overrides the other inputs. (Default S8=closed, S10&S11=open)
S5(IN1), S6(IN2) & S7(IN3): closed = The input will be overrided by the other inputs. (If the strap is open the input will
not be overrided independent of the settings of S8,S10&S11). (Default S7=closed, S5&S&=open)
IMPORTANT! Do NOT change the settings of S16, S17 & S19!
2004-09-08. Z:\Products Public\Loop Amplifiers - Systems\PLS-700\English\Service\PLS-700_IgGbV1.pmd
Page 4
How to connect unbalanced /
balanced input
WARNING!
Live terminals enclosed!
Loop amplifier
UniVox PLS-700
®
Bo EDIN AB
www.edin.se

Installation Guide

Cover area 650 m² (free field, square loop) according to IEC 60118-4.
2004-09-08
Page 1
