Univox SLS-100 XF Installation Manual

UniVox Super Loop System
®
Note! Please study the complete installation guide before planning, connecting and adjusting the loop system!
UniVox SLS – Super Loop System
®
professional installations in venues where high sound quality
for the hearing aid user, very high reproducibility together
with extremely low overspill in all directions are important
requirements. Through correct calculations, installation and
adjustment you will get 3-D controlled overspill, smooth field
strength even at high frequencies, little interference problem
with reinforcement and other metallic structures as well as
increased efficiency compared to traditional loop systems.
Loop wire layout and other preparations
● Each UniVox SLS system has to be planned carefully to work correctly. A complete system always consists of two
®
separate loop configurations - Master and Slave. The Master and Slave loop work as one single system and has to be
planned together. For further information or assistance, please contact us through www.edin.se or contact your local
distributor.
● We highly recommend the special designed copper foil (25 x 0.1 mm) giving an increased high frequency response of
approximately 5 dB compared to a conventional round wire. The copper foil can be used with any loop size and will fit
easily under plastic or textile carpets, wooden floor or tiles. Always check with the material experts/suppliers for detailed
advice.
● When using round standard wire we recommend 4 mm² for most applications. For smaller loops a thinner wire can be
used. Please contact us or your local distributor by any uncertainties.
● Field strength and high frequency response can be limited due to reinforcement and metal constructions in walls, ceiling
and floor. Therefore it is important NOT to place the wire near/parallel to or on metal constructions or reinforcement
(crossings are allowed). If there is strong metallic influence it might be necessary to choose a more powerful amplifier,
even if the listening area normally should be covered by the amplifier you have chosen.
● Use general installation technique for audio/video installations. Pay extra attention to avoid interference problems with
sensitive analogue signals from microphones, mixers, video projectors etc. Avoid parallel wires close to the loop wire.
● Plan other electronic controlled equipment avoiding or creating any disturbing magnetic fields.
Bo EDIN AB • Stockby Hantverksby 3 • SE-181 75 Lidingö • SWEDEN
Phone +46 8 7671818 • Fax +46 8 7671820 • www.edin.se • info@edin.se

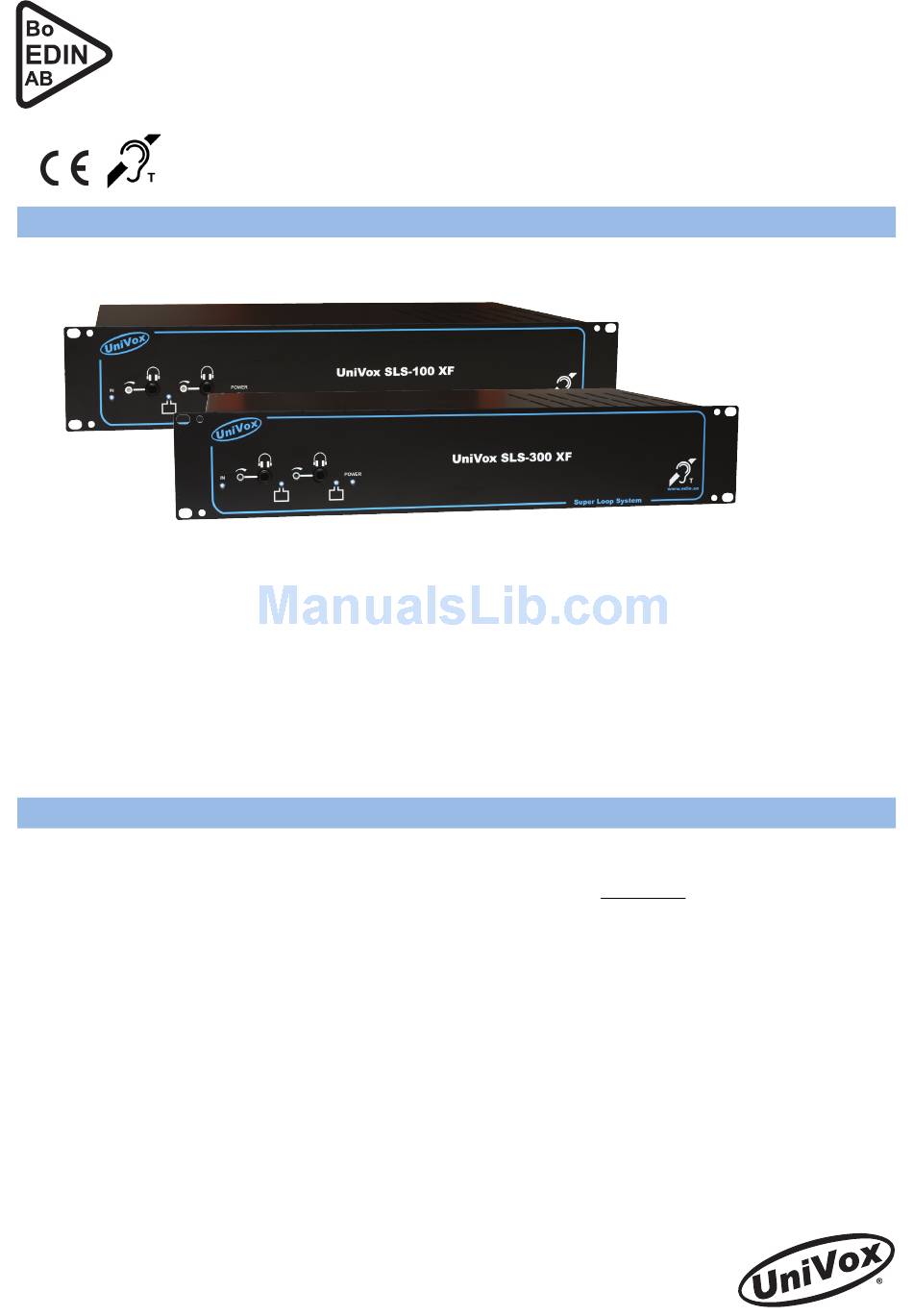

– SLS-100 XF (Part No 215100) / SLS-300 XF (Part No 215300)
®
Free field coverage area up to 170m²/300m² according to IEC 60118-4:2006
is target designed for
®
UniVox Super Loop System
®
SLS-100 XF / SLS-300 XF
Loop amplifier for balanced loop configurations
The result for all hearing aid users is a loop of HiFi quality!
For areas up to 650m² use UniVox
units).
UniVox SLS fulfils IEC 60118-4:2006 when installed and
®
adjusted correctly.

Installation Guide

SLS-700 (two separate
®
®
