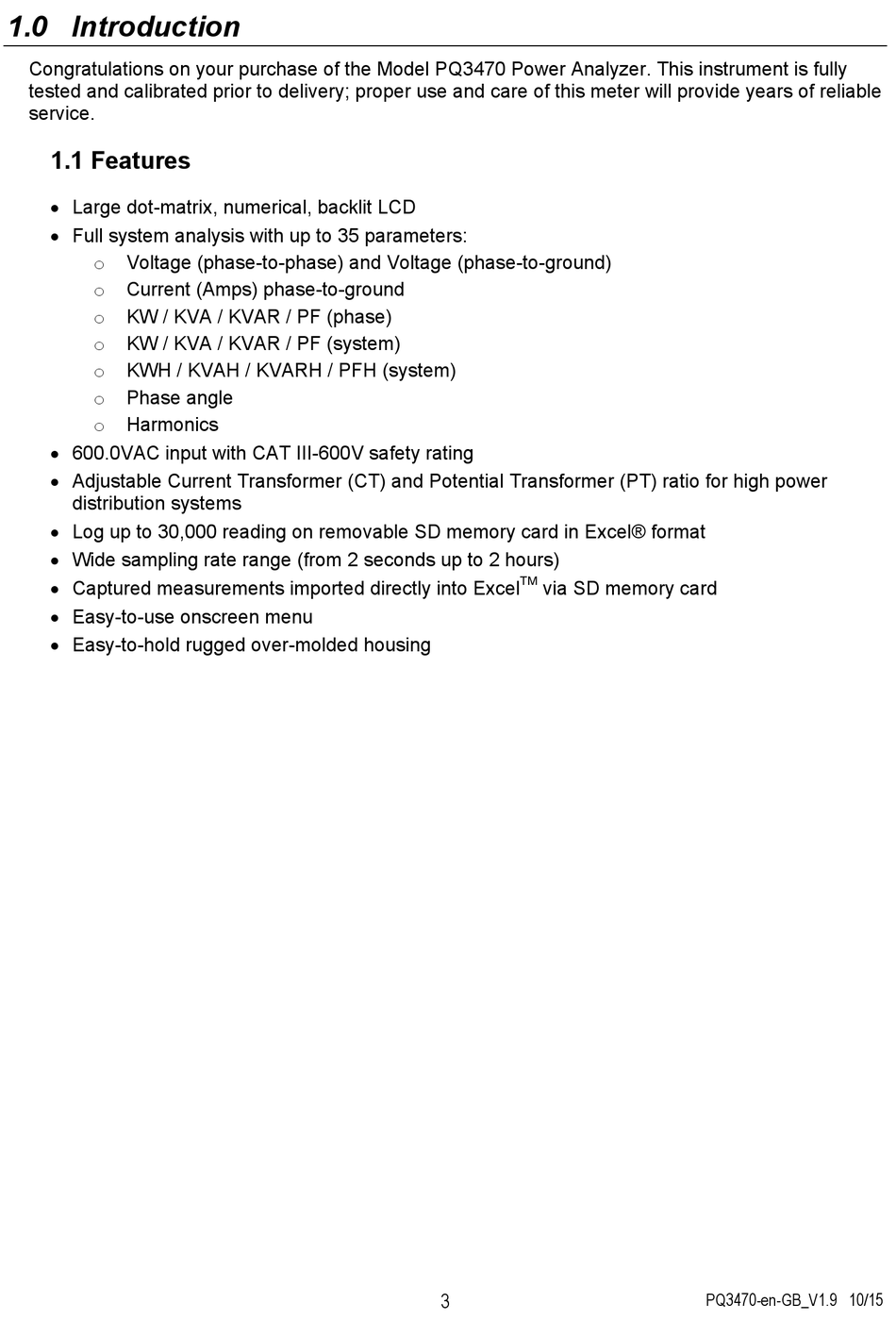

1.0 Introduction

Congratulations on your purchase of the Model PQ3470 Power Analyzer. This instrument is fully
tested and calibrated prior to delivery; proper use and care of this meter will provide years of reliable
service.

1.1 Features

 Large dot-matrix, numerical, backlit LCD
 Full system analysis with up to 35 parameters:
Voltage (phase-to-phase) and Voltage (phase-to-ground)
o
Current (Amps) phase-to-ground
o
KW / KVA / KVAR / PF (phase)
o
KW / KVA / KVAR / PF (system)
o
KWH / KVAH / KVARH / PFH (system)
o
Phase angle
o
Harmonics
o
 600.0VAC input with CAT III-600V safety rating
 Adjustable Current Transformer (CT) and Potential Transformer (PT) ratio for high power
distribution systems
 Log up to 30,000 reading on removable SD memory card in Excel® format
 Wide sampling rate range (from 2 seconds up to 2 hours)
 Captured measurements imported directly into Excel
 Easy-to-use onscreen menu
 Easy-to-hold rugged over-molded housing
TM
via SD memory card
