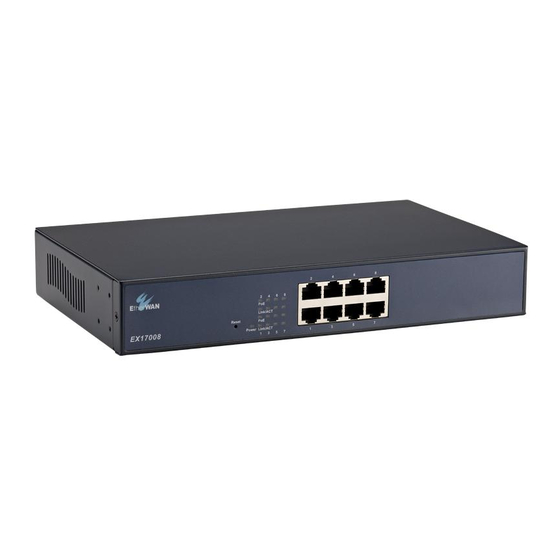

EtherWAN EX17008 Quick Start Manual

This quick start guide describes how to install and use the 8-port 10/100Base Fast Ethernet Web-Smart
PoE Ethernet Switch. This is designed to provide power to PoE driven devices.

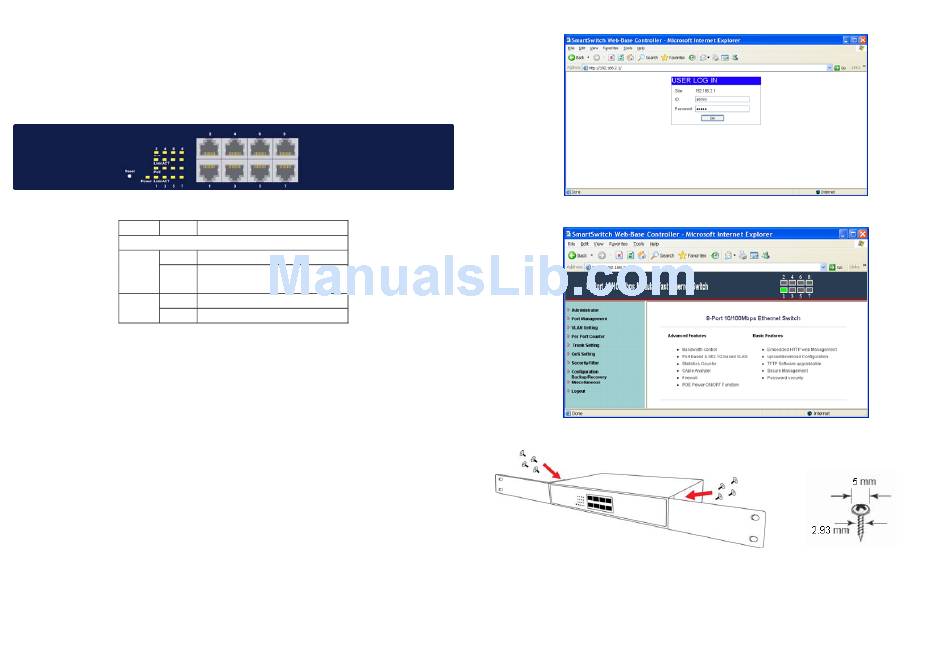

Physical Description

The Port Status LEDs and Power Inputs
LED State
10/100Base-TX
Steady
Link/ACT
Flashing
Steady
PoE
Off

Functional Description

•
Supports IEEE802.3af Power over Ethernet (PoE) Power Sourcing Equipment (PSE).
•
Full PoE Power supplies up to 15.4W per port.
•
1024 MAC addresses. 512K bits buffer memory.
•
PoE (Power status, Link status) through the Web browser interface.
•
Administrator, Port Management, VLAN Setting, Per Port Counter, Trunk Setting, QoS Setting,
Security Filter, Configuration Backup/Recovery, and Miscellaneous through the Web browser
Interface.
•
10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX.
•
Full wire-speed forwarding rate.
•
100~240VAC, 50~60Hz Internal Universal PSU.
•
℃ ℃ 32℉ to 113℉) operating temperature range.
0 to 45 (
•
Metal case. Supports Desktop and Rack Mounting installation.
•
The ITE is to be connected only to PoE networks without routing to the outside plant.

Web Configuration

•
Login the switch:
Specify the default IP address (192.168.2.1) of the switch in the web browser. A login window will be
shown as below:
8/16-port 10/100Base Fast Ethernet Web-Smart PoE Ethernet Switch
Indication
A valid network connection established.
Transmitting or receiving data.
ACT stands for ACTIVITY.
Power Device (PD) is connected.
Power Device (PD) is disconnected.
•
Enter the factory default login ID: admin. Enter the factory default password: admin. Then click on the
"OK" button to log on to the switch.

Rack-mount Kits

•
Install the rack-mount kits with eight screws.
•
Use four screws to install the unit in a 19" cabinet. We suggest using two screws per ear to install in
a 19" cabinet.
•
The heads of the screws should be less than 5 mm in diameter, and the shafts should be less than
2.93 mm in diameter, as show in the figure above.
1 V2
