EtherWAN EX17008 Installation Manual

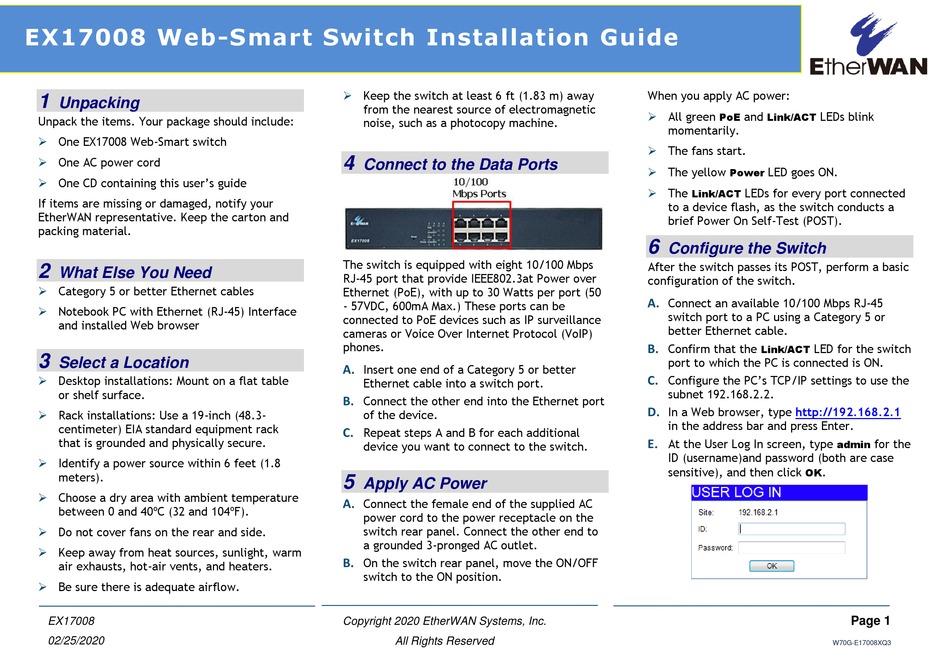

EX17008 Web-Smart Switch Installation Guide
1
Unpacking
Unpack the items. Your package should include:

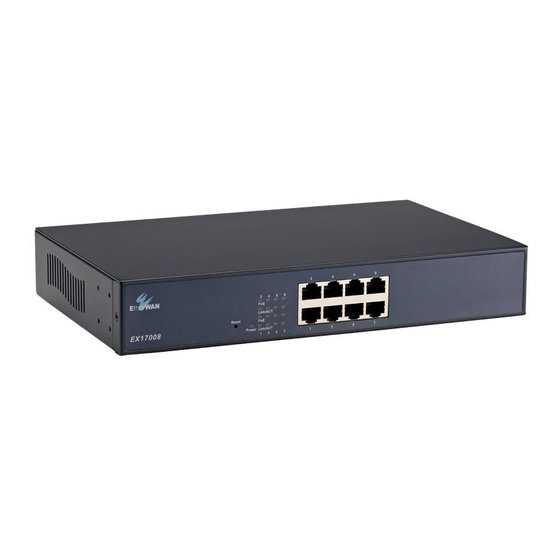

One EX17008 Web-Smart switch

 One AC power cord
One CD containing this user's guide

If items are missing or damaged, notify your
EtherWAN representative. Keep the carton and
packing material.
2
What Else You Need
 Category 5 or better Ethernet cables
Notebook PC with Ethernet (RJ-45) Interface

and installed Web browser
3
Select a Location
Desktop installations: Mount on a flat table

or shelf surface.
 Rack installations: Use a 19-inch (48.3-
centimeter) EIA standard equipment rack
that is grounded and physically secure.
 Identify a power source within 6 feet (1.8
meters).
Choose a dry area with ambient temperature

between 0 and 40ºC (32 and 104ºF).
Do not cover fans on the rear and side.

 Keep away from heat sources, sunlight, warm
air exhausts, hot-air vents, and heaters.
Be sure there is adequate airflow.

EX17008
02/25/2020
Keep the switch at least 6 ft (1.83 m) away

from the nearest source of electromagnetic
noise, such as a photocopy machine.
4
Connect to the Data Ports
The switch is equipped with eight 10/100 Mbps
RJ-45 port that provide IEEE802.3at Power over
Ethernet (PoE), with up to 30 Watts per port (50
- 57VDC, 600mA Max.) These ports can be
connected to PoE devices such as IP surveillance
cameras or Voice Over Internet Protocol (VoIP)
phones.
Insert one end of a Category 5 or better
A.
Ethernet cable into a switch port.
Connect the other end into the Ethernet port
B.
of the device.
Repeat steps A and B for each additional
C.
device you want to connect to the switch.
5
Apply AC Power
Connect the female end of the supplied AC
A.
power cord to the power receptacle on the
switch rear panel. Connect the other end to
a grounded 3-pronged AC outlet.
On the switch rear panel, move the ON/OFF
B.
switch to the ON position.
Copyright 2020 EtherWAN Systems, Inc.
All Rights Reserved
When you apply AC power:
All green PoE and Link/ACT LEDs blink

momentarily.
 The fans start.
 The yellow Power LED goes ON.
 The Link/ACT LEDs for every port connected
to a device flash, as the switch conducts a
brief Power On Self-Test (POST).
6
Configure the Switch
After the switch passes its POST, perform a basic
configuration of the switch.
Connect an available 10/100 Mbps RJ-45
A.
switch port to a PC using a Category 5 or
better Ethernet cable.
Confirm that the Link/ACT LED for the switch
B.
port to which the PC is connected is ON.
Configure the PC's TCP/IP settings to use the
C.
subnet 192.168.2.2.
In a Web browser, type http://192.168.2.1
D.
in the address bar and press Enter.
At the User Log In screen, type
E.
ID (username)and password (both are case
sensitive), and then click OK .
admin for the
