- Page 1 OPERATING MANUAL CUBE MINI Line Laser adainstruments.com...
- Page 2 English...
-
Page 3: Specifications

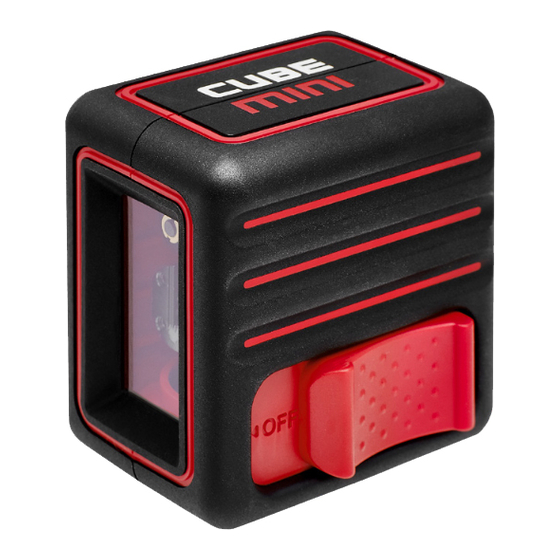

COMPLETE SET WITHOUT GIVING PRIOR WARNING. APPLICATION Line Laser ADA CUBE MINI is designed to check the horizontal and vertical position of the surfaces of the elements of building structures and also to transfer the angle of inclination of the structural part to similar parts during construction and installation works. -
Page 4: Change Of Batteries
English CHANGE OF BATTERIES Open battery compartment. Insert batteries. Take care to correct polarity. Close battery compartment. ATTENTION: If you are not going to use instru- ment for a long time, take out batteries. OPERATION Place the line laser on the working surface or mount it on the tripod/pillar or wall mount (comes with the instrument). -
Page 5: To Check Plumb
English point of cross laser line is marked B. Please note the distance of B to A should be 5m. Measure the distance between M to cross laser lune, if the difference is over 3mm, the laser is out of calibration, please contact with seller to calibrate the laser. -
Page 6: Laser Classification
English • Dirty laser emitting window; • After line laser has been dropped or hit. Please check the accuracy; • Large fluctuation of temperature: if instrument will beused in cold areas after it has been stored in warm areas (or the other way round) please wait some minutes before carrying out measurements. -
Page 7: Warranty
English WARRANTY This product is warranted by the manufacturer to the original purchaser to be free from defects in material and workmanship under normal use for a period of two (2) years from the date of purchase. During the warranty pe- riod, and upon proof of purchase, the product will be repaired or replaced (with the same or similar model at manufactures option), without charge for either parts of labour. - Page 8 English WARRANTY DOESN’T EXTEND TO FOLLOWING CASES: 1. If the standard or serial product number will be changed, erased, re- moved or wil be unreadable. 2. Periodic maintenance, repair or changing parts as a result of their nor- mal runout. All adaptations and modifications with the purpose of improvement and expansion of normal sphere of product application, mentioned in the service instruction, without tentative written agreement of the expert pro-...
-
Page 9: Warranty Card
English WARRANTY CARD Name and model of the product __________________________________________ Serial number___________________________Date of sale______________________ Name of commercial organization ________________________________________ stamp of commercial organization Warranty period for the instrument explotation is 24 months after the date of original retail purchase. During this warranty period the owner of the product has the right for free repair of his instrument in case of manufacturing defects. - Page 10 ADA International Group Ltd., No.6 Building, Hanjiang West Road #128, Changzhou New District, Jiangsu, China Made In China adainstruments.com...
