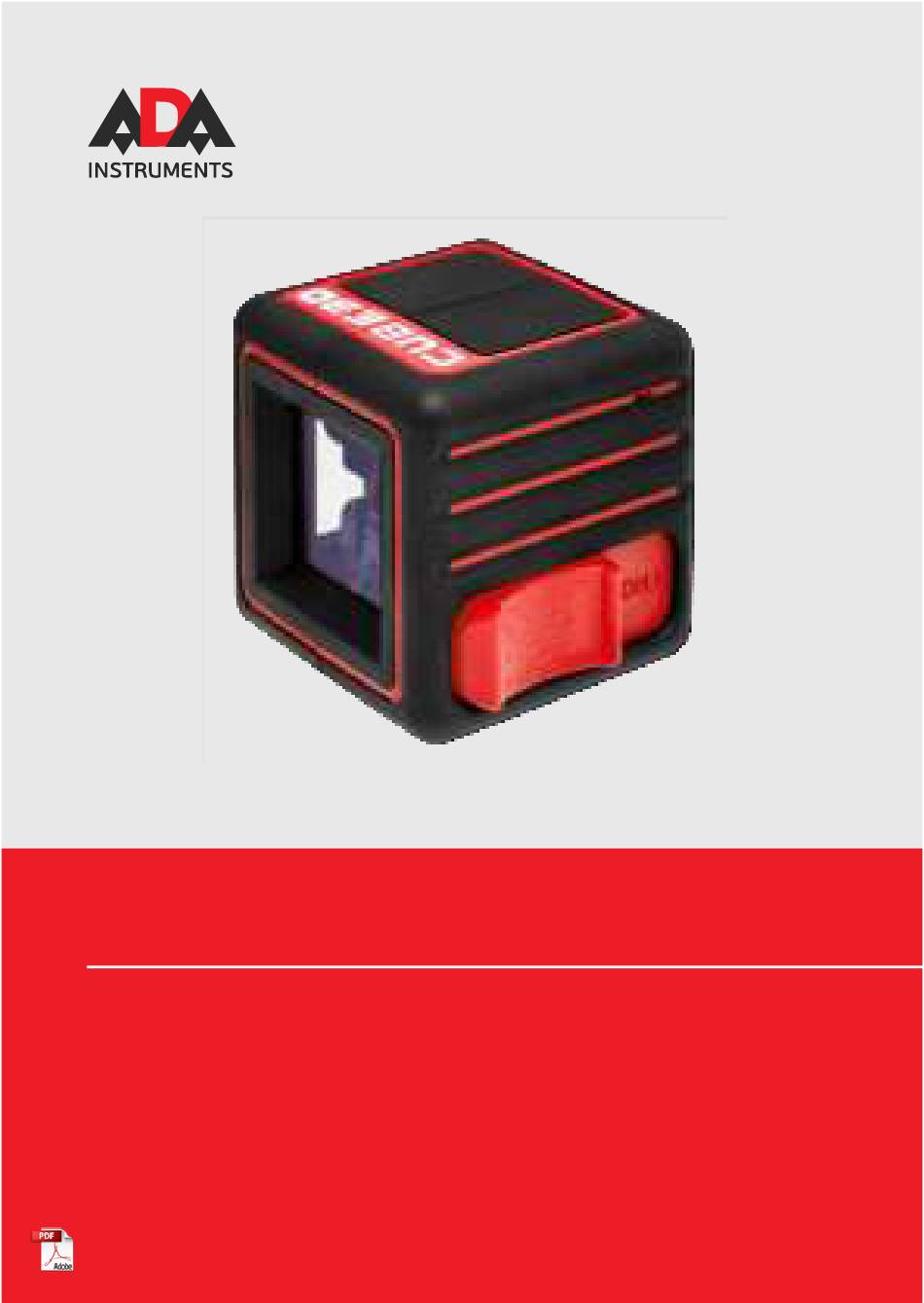

- Page 1 OPERATING MANUAL CUBE 3D Line Laser adainstruments.com...
- Page 2 English...

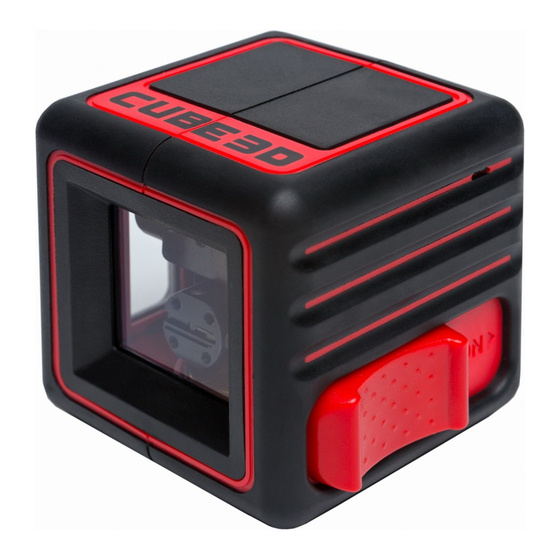

- Page 3 COMPLETE SET WITHOUT GIVING PRIOR WARNING. APPLICATION Line laser ADA Cube 3D is designed to check the horizontal and vertical position of the surfaces of the elements of building structures and also to transfer the angle of inclination of the structural part to similar parts during construction and installation works.
- Page 4 OPERATION Cube 3D is a reliable and convenient line laser. It will be irreplaceable line laser for many years. Place the line laser on the working surface or mount it on the tripod/pillar or wall mount. Switch on the line laser. Visual alarm (blinking line) and audible signal indicate that the device was not installed within the compensation range ±...
- Page 5 English “accuracy” (see spesifications), there is no need in calibration. Exam- ple: when you check the accuracy of Cross Line Laser the difference is {a1-a2}=5 mm and {b1-b2}=7 mm. The line laser’s error: {b1-b2}- {a1-a2}=7-5=2 mm. Now you can compare this error with standard error. If the accuracy of line laser isn’t corresponding with claimed accuracy, contact the authorized service center.
- Page 6 English SPECIFIC REASONS FOR ERRONEOUS MEASURING RESULTS • Measurements through glass or plastic windows; • Dirty laser emitting window; • After line laser has been dropped or hit. Please check the accuracy; • Large fluctuation of temperature: if instrument will beused in cold areas after it has been stored in warm areas (or the other way round) please wait some minutes before carrying out measurements.
- Page 7 English thorized workshops only. Please contact your local dealer. Do not remove warning labels or safety instructions. Keep line laser away from children. Do not use line laser in explosive environment. WARRANTY This product is warranted by the manufacturer to the original purchaser to be free from defects in material and workmanship under normal use for a period of two (2) years from the date of purchase.
- Page 8 English product. The manufacturer, or its representatives, assumes no responsi- bility for any damage, and loss of profits caused by usage other thsn ex- plained in the users’ manual. The manufacturer, or its representatives, assumes no responsibility for damage caused by wrong movement or action due to connecting with oth- er products.
- Page 9 English WARRANTY CARD Name and model of the product __________________________________________ Serial number___________________________Date of sale______________________ Name of commercial organization ________________________________________ stamp of commercial organization Warranty period for the instrument explotation is 24 months after the date of original retail purchase. During this warranty period the owner of the product has the right for free repair of his instrument in case of manufacturing defects.
- Page 10 ADA International Group Ltd., No.6 Building, Hanjiang West Road #128, Changzhou New District, Jiangsu, China Made In China adainstruments.com...
