Summary of Contents for ADA INSTRUMENTS CUBE MINI

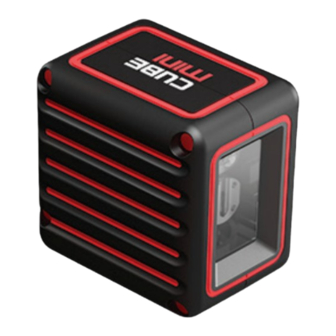

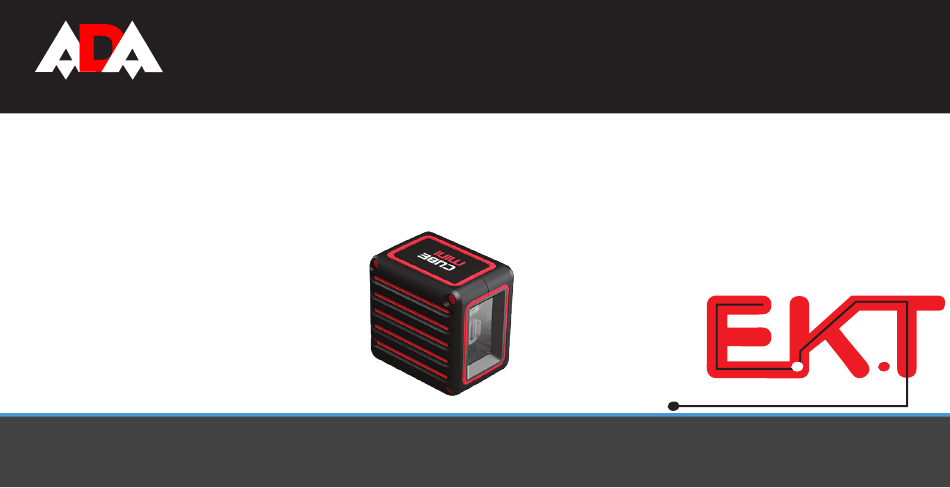

- Page 1 MEASUREMENT FOUNDATION INSTRUMENTS Operating manual Line laser level ADA CUBE MINI Katrangi Electronics Trading w w w . e k t . c o m...
- Page 2 CUBE MINI INSTRUMENTS Cross line laser, batteries, operating manual, a tripod (optional). Manufacturer may modify complete set without notice. Application Cross Line Laser projects visible laser planes. It is used for determination height, making horizontal and vertical planes. Specifications Dimensions 65х65х45 mm...
- Page 3 CUBE MINI INSTRUMENTS Change of batteries Open battery compartment. Put in 2x AA Alkaline batteries. Take care to correct polarity. Close battery compartment. ATTENTION: If you are not going to use instrument for a long time, take out batteries. Laser lines...
- Page 4 CUBE MINI INSTRUMENTS Features laser emitting window battery cover compensator switch tripod mount 1/4" Electronics Katrangi Trading w w w . e k t . c o m...
- Page 5 CUBE MINI INSTRUMENTS Operation Place the instrument on the working surface or mount it on the tripod/pillar or wall mount (comes with the instrument). Switch on the instrument: turn the compensator switch (3) to the position “ON”. When enabled, the vertical and horizontal plane projected constantly. Visual alarm (blinking line) and audible signal indicate that the device was not installed within the compensation range ±...
-
Page 6: Application Demonstration
CUBE MINI INSTRUMENTS APPLICATION DEMONSTRATION Electronics Katrangi Trading w w w . e k t . c o m... - Page 7 CUBE MINI INSTRUMENTS To check the accuracy of line laser level To check the accuracy of line laser level (slope of plane) Set up the instrument between two walls, the distance is 5 m.Turn on the Cross Line Laser and mark the point of cross laser line on the wall.
- Page 8 CUBE MINI INSTRUMENTS To check level Choose a wall and set laser 5M away from the wall. Turn on the laser and cross laser line is marked A on the wall. Find another point M on the horizontal line, the distance is around 2.5m.
- Page 9 CUBE MINI INSTRUMENTS B, along the vertical laser line on the wall and measure the distance 3m from point B to another point C. Point C must be on the vertical laser line, it means the height of C point is 3m.
- Page 10 CUBE MINI INSTRUMENTS • After instrument has been dropped or hit. Please check the accuracy. • Large fluctuation of temperature: if instrument will be used in cold areas after it has been stored in warm areas (or the other way round) please wait some minutes before carrying out measurements.
