INSTALLATION AND OPERATION MANUAL
CNFE4+1SMS(M,S)2POE
FOuR 10/100T(X) +ONE 100FX EThERNET
SElF-MANAGEd SwITCh wITh POwER OVER EThERNET (POE+)

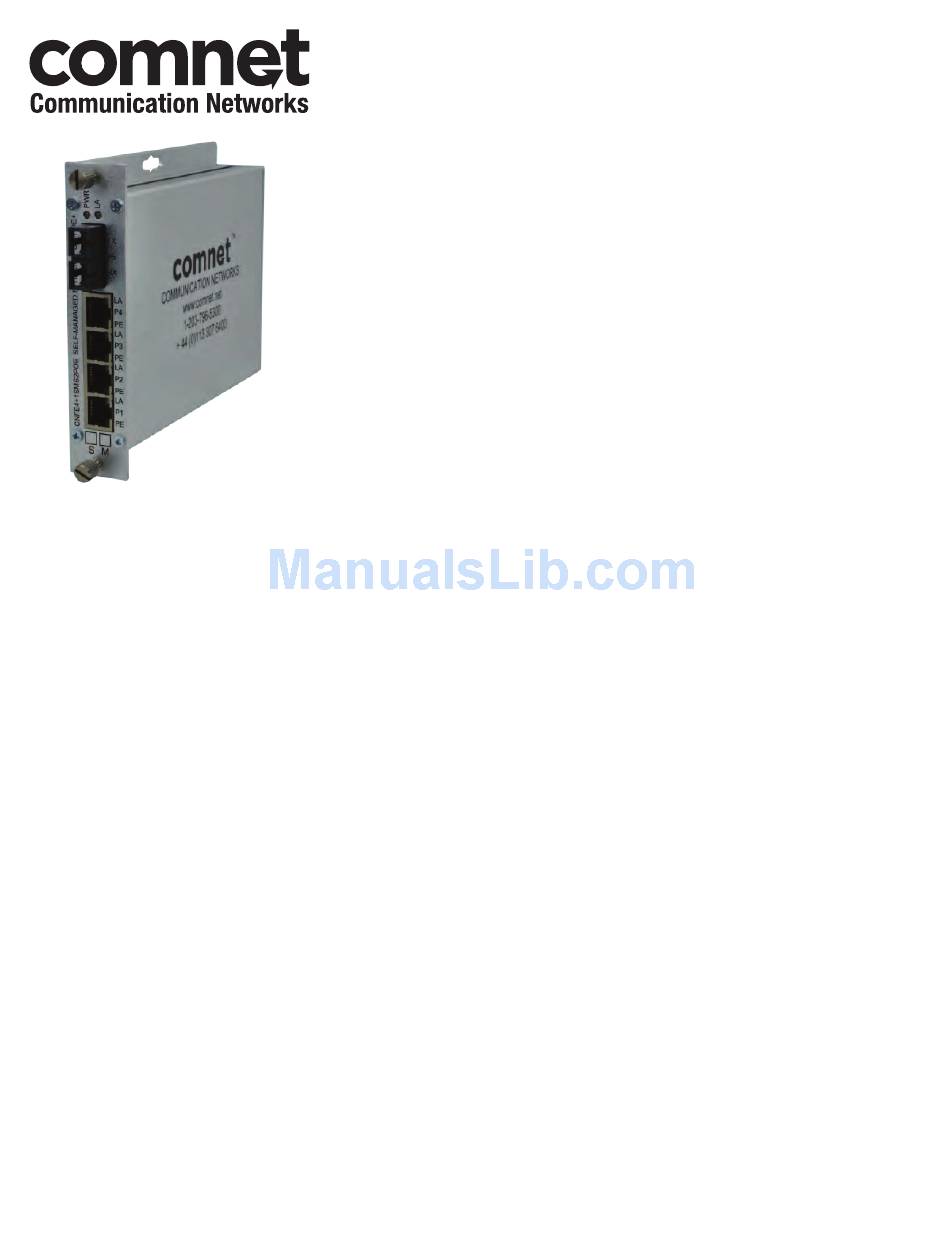

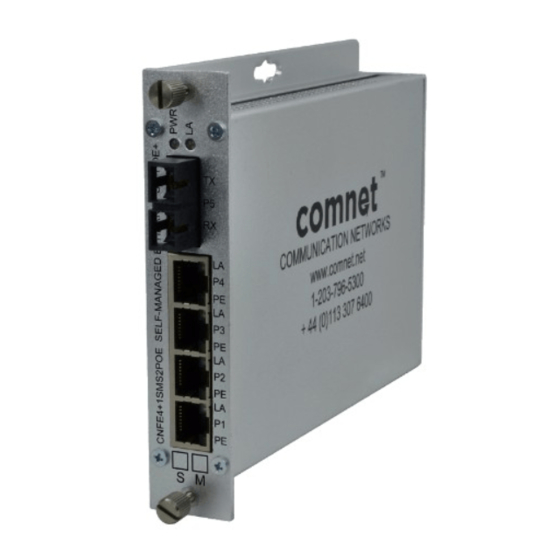

The ComNet CNFE4+1SMS(M,S)2POE is a five-port Ethernet switch with uplink
management functionality and provides four copper ports operating at 10/100Mbps
and is designed to combine four electrical ports into a single optical port that
forwards this data to the next network device. The fiber interface has an option of
SC or ST connector type. There is no programming required to use this product. The
ComNet CNFE4+1SMSPOE comes pre-programmed, preventing network video
flooding with dIP switch selection of fiber port as uplink or as an unmanaged switch.
Ports 1–4 can supply up to thirty (30) watts of power ("Power over Ethernet") and
incorporate PoE+ features based on the IEEE 802.3at standard. It is "Plug-and-Play".
lEd indicators confirm the operating status of this device. See Figure 4 on Page 3
for an explanation of the indicators.
The ComNet CNFE4+1SMSPOE may be either wall mounted, rack mounted
("ComFit" packaging) or dIN-rail mounted with the use of the ComNet dINBKT1
adapter. See Figure A on Page 4 for mounting instructions.
See Figures 1 – 5 for complete installation details.
INS_CNFE4+1SMS(M,S)2POE_REVA 07/08/11 PAGE 1
