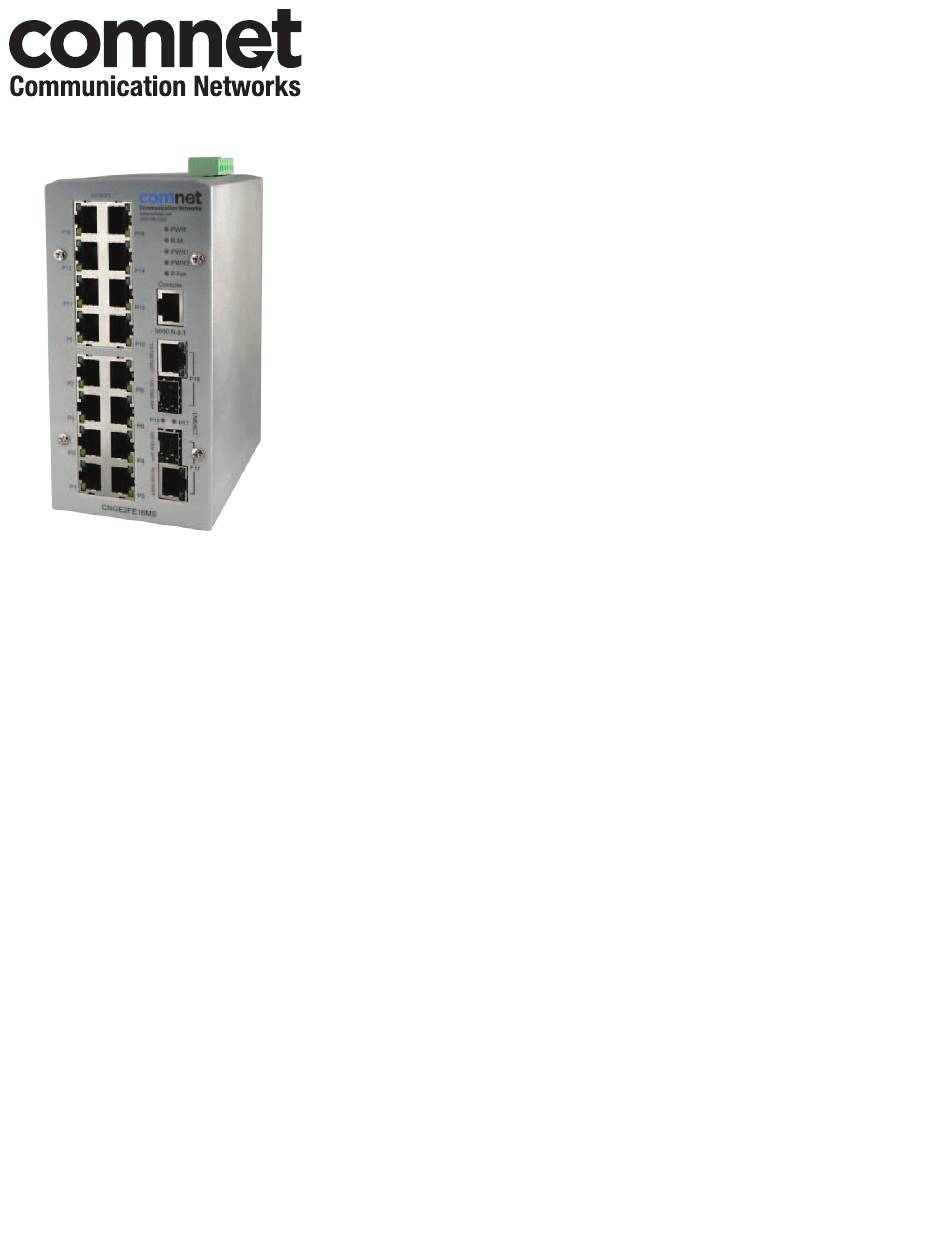

INSTALLATION AND OPERATION MANUAL
CNGE2FE16MS
Managed ethernet Switch with (16) 10/100tX +
(2) configurable 10/100/1000tX / 100/1000fX PortS
v2.01 Jan 2012

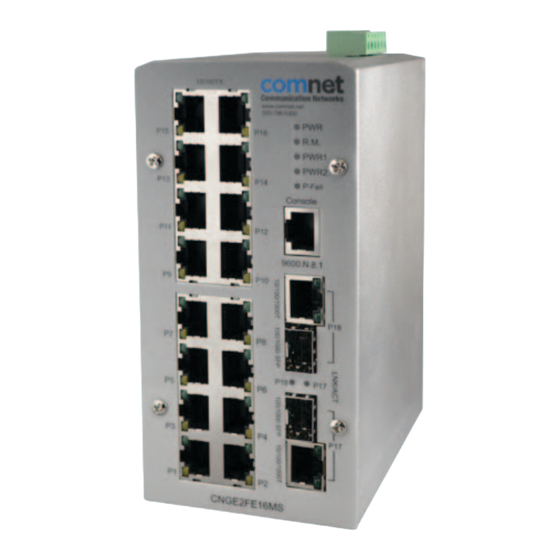

The ComNet™ CNGE2FE16MS Managed Ethernet Switch provides robust transmission
of (16) 10/100 BASE-TX and (2) 10/100/1000TX or 100/1000FX combo ports, of gigabit
Ethernet data. Unlike most Ethernet switches, these environmentally hardened units
are designed for direct deployment in difficult out-of-plant or roadside operating
environments, and are available for use with either conventional CAT-5e copper or
optical transmission media. Diverse media selection allows for easy implementation
of point-to-point, linear add-drop, drop-and-repeat, star, or true self-healing ring and
mesh network system architectures. The 16 electrical ports support the 10/100 Mbps
Ethernet IEEE 802.3 protocol, and auto-negotiating and auto-MDI/ MDIX features are
provided for simplicity and ease of installation. 2 ports are 10/100/1000 configurable
for copper or fiber media for use with multimode or single mode optical fiber, selected
by optional SFP modules. These network managed layer 2 switches are optically
(100/1000 BASE-FX) and electrically compatible with any IEEE 802.3 compliant
Ethernet devices. Plug-and-play design ensures ease of installation, and no electrical
or optical adjustments are ever required. The CNGE2FE16MS incorporates LED
indicators for monitoring the operating status of the managed switch and network.
These units are DIN-rail or wall mountable.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CNGE2FE16MS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Comnet CNGE2FE16MS

  • Page 1 (100/1000 BASE-FX) and electrically compatible with any IEEE 802.3 compliant Ethernet devices. Plug-and-play design ensures ease of installation, and no electrical or optical adjustments are ever required. The CNGE2FE16MS incorporates LED indicators for monitoring the operating status of the managed switch and network.
  • Page 2: Table Of Contents

    Packing List Safety Precaution Hardware Description Physical Dimensions LED Indicators Installation RJ-45 Cabling SFP Cabling Grounding the CNGE2FE16MS Wiring the Power Inputs Wiring the P-Fail Alarm Contacts DIN-Rail Mounting Wall Mounting Installation Steps Configuration RS-232 Console Login in the Console Interface...
  • Page 3: Fcc Warning

    INSTALLATION AND OPERATION MANUAL CNGE2FE16MS FCC Warning This equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 4: Overview

    When one of the power inputs fails, the P-Fail LED indicator illuminates and sends an alarm through the relay output as notification. Flexible Mounting The CNGE2FE16MS can be mounted on the wall or on a standard DIN rail, so it is suitable for any space-constrained environment. Wide Operating Temperature The operating temperature range of the CNGE2FE16MS is between -40 and +75ºC.
  • Page 5: Features

    INSTALLATION AND OPERATION MANUAL CNGE2FE16MS Features » 7.2Gbps back-plane (switching fabric) » 2 x 1000Base-T/1000Base-FX Combo ports » Wide-range redundant power » Power polarity reversal protection » X-Ring II path redundant supported » TFTP firmware update and system configuration restoration/backup »...
  • Page 6: Technical Specifications

    INSTALLATION AND OPERATION MANUAL CNGE2FE16MS Technical Specifications Communications Standard IEEE 802.3, 802.3u, 802.3x, 802.3ad IEEE 802.1d, 802.1p, 802.1Q, 802.1w, 802.1x 10/100/1000BaseT, 1000BaseFX Transmission Speed Up to 1000 Mbps Interface Ethernet 16 x RJ-45 (10/100TX) 2 x RJ-45/SFP (mini-GBIC) combo ports...
  • Page 7 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS Power Power Consumption 10.75 watts max. Power Input 12 ~ 48 VDC Mechanical Dimensions (WxHxD) 72 x 152 x 106.2 mm Enclosure IP30 protection, aluminum shell Installation Wall/DIN-rail mounting Environment Operating Temperature -40º ~ 75ºC (-40º ~ 167ºF)
  • Page 8: Packing List

    » 1 x RJ-45 to D-sub 9 female console cable » 1 x User Manual (CD-ROM) » 1 x Wall-mount kit Compare the contents of the CNGE2FE16MS with the standard checklist above. If any item is damaged or missing, please contact the local dealer for service. Safety Precaution...
  • Page 9: Hardware Description

    This section is intended to introduce the industrial switch’s hardware specification, port, cabling and wiring information. Physical Dimensions Figure 1 illustrates the dimensions 72 × 152 × 106.2mm (W × H × D) for the CNGE2FE16MS. Figure 1 – Mechanical Dimensions inS_cnge2fe16MS_reV–...
  • Page 10: Led Indicators

    INSTALLATION AND OPERATION MANUAL CNGE2FE16MS LED Indicators LED indicators located on the front panel display the power status and network status of the CNGE2FE16MS. Please Table 1 for further details. Color Description Green System power on No power inputs R.M.
  • Page 11: Installation

    INSTALLATION AND OPERATION MANUAL CNGE2FE16MS Installation RJ-45 Cabling Use four twisted-pair, Category 5e or above cabling for the RJ-45 port connection. The cable between the switch and the link partner (switch, hub, workstation, etc.) must be less than 100 meters (328 feet) long.
  • Page 12 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS 10/100Base-TX Cable Schema Figure 2 – Straight Through Cable Schematic Figure 3 – Cross Over Cable Schematic 10/100/1000Base-T Pinouts Signal name Description BI_DA+ Bi-directional pair A+ BI_DA- Bi-directional pair A- BI_DB+ Bi-directional pair B+ BI_DC+...
  • Page 13 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS 10/100/1000Base-T Cable Schema The following two figures illustrate the 10/100/1000Base-T cable schema. Figure 4 – Straight Through Cable Schema Figure 5 – Crossover Cable Schema inS_cnge2fe16MS_reV– TECh SUPPORT: 1.888.678.9427 01/11/12 Page 13...
  • Page 14 CNGE2FE16MS Gigabit Copper/SFP Combo Port The CNGE2FE16MS is equipped with Gigabit Copper/SFP combo ports. The Gigabit Copper (10/100/1000T) ports should use Category 5e or above UTP/STP cable for the connection speed up to 1000Mbps. SFP slots supporting dual mode to toggle the connection speed between 100 and 1000Mbps are used for connecting to the network segment with single or multi-mode fiber optics.
  • Page 15: Sfp Cabling

    INSTALLATION AND OPERATION MANUAL CNGE2FE16MS SFP Cabling SFP Connection To connect the transceiver and the LC cable, please follow the steps shown in Figures 6 – 8. » First, insert the transceiver into the SFP slot. Notice that the triangle mark indicates the bottom of the slot.
  • Page 16 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS SFP Disconnection To remove the LC connector from the transceiver, follow the steps showin in Figures 9 and 10. » First, press down the latches and pull the LC connector out of the transceiver. Figure 9 – Press down the latches to remove the LC connector »...
  • Page 17: Grounding The Cnge2Fe16Ms

    Attention W hen installing the CNGE2FE16MS, the ground connection must always be made first and disconnected last. » On the top of the CNGE2FE16MS, locate and remove the dome screw that has a ground symbol beside it. » Attach the ground wire to the screw hole with the dome screw. Figure 11 – Top plate of CNGE2FE16MS inS_cnge2fe16MS_reV–...
  • Page 18: Wiring The Power Inputs

    INSTALLATION AND OPERATION MANUAL CNGE2FE16MS Wiring the Power Inputs Please follow these steps to connect power lines from the terminal block to the compliant external DC power source. » Before wiring, make sure the power source is disconnected. » Using a wire-stripping tool, remove a short piece of insulation from the output wires of the DC power source.
  • Page 19: Wiring The P-Fail Alarm Contacts

    INSTALLATION AND OPERATION MANUAL CNGE2FE16MS Wiring the P-Fail Alarm Contacts The “P-Fail” alarm relay is provided to signal critical error conditions that may occur on the switch. The contacts are energized upon powering up of the switch and remain energized until a critical error occurs including power failure, Ethernet port disconnection and MAC violation.
  • Page 20: Din-Rail Mounting

    DIN-Rail Mounting Assembling the DIN-Rail Clip The DIN-rail clip is screwed on the CNGE2FE16MS when out of factory. If not, please refer to the following steps to secure the DIN-rail clip on the switch. » Use the included screws to secure the DIN-rail clip on the CNGE2FE16MS.
  • Page 21 CNGE2FE16MS Hanging the Industrial Switch Follow the steps below to hang the CNGE2FE16MS on the DIN rail. » First, position the rear side of the switch directly in front of the DIN rail. Make sure the top of the clip hooks over the top of the DIN rail.
  • Page 22: Wall Mounting

    » Align the screw holes between the wall-mount plates and the unit as the figure illustrated. » Secure the plates to the unit with the accompanying screws. Figure 19 – Alignment of CNGE2FE16MS and Wall Mounting Hardware inS_cnge2fe16MS_reV– TECh SUPPORT: 1.888.678.9427...
  • Page 23: Installation Steps

    » To hang the CNGE2FE16MS on the wall, please refer to the Wall Mounting section. » Ground the CNGE2FE16MS. » To power on the CNGE2FE16MS, please refer to the Wiring the Power Inputs section for further information on how to wire the power. And then the power LED on the CNGE2FE16MS will light up.
  • Page 24: Configuration

    INSTALLATION AND OPERATION MANUAL CNGE2FE16MS Configuration The CNGE2FE16MS can be configured via RS-232 Console, SSH (Secure Shell) or a web browser. RS-232 Console Attach the supplied cable, which one end is D-sub 9 and the other end is RJ-45, to connect the CNGE2FE16MS and your host PC or terminal.
  • Page 25: Login In The Console Interface

    INSTALLATION AND OPERATION MANUAL CNGE2FE16MS Login in the Console Interface After the connection between Switch and PC is ready, turn on the PC and run a terminal emulation program like Hyper Terminal and configure its communication parameters to match the following default characteristics of the console port: »...
  • Page 26 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS » When the blank screen shows up, press Enter to have the login prompt appear. Key in admin (default value) for both User Name and Password (press Enter to switch between); and then press Enter to reach the Main Menu of console management.
  • Page 27: Ssh

    INSTALLATION AND OPERATION MANUAL CNGE2FE16MS The Ethernet switch also supports SSH (Secure Shell) which allows the user to log in from a remote computer over the network. The next section is intended to guide users on how to use an SSH client—PuTTY to make a connection to the Ethernet switch.
  • Page 28 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS » Select the Connection4 SSH node of the tree-menu to configure options for controlling SSH connections. » Tick the check box labeled Don’t start a shell or command at all. Figure 26 – Options Controlling SSH Connections »...
  • Page 29 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS » After filling in, select the Add button. And you will see an entry added to the list box. Figure 28 – Entry of Port Forwarding Added » You can also save your preferred PuTTY options for a quick connection the next time it is needed.
  • Page 30 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS » To connect to the SSH server, select the session name and select the Open button. And then you will see a window shows up with prompt message login as: Type guest for both user name and password.
  • Page 31 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS » When finished, a telnet session is successfully made using the SSH protocol. Figure 32 – Console via SSH inS_cnge2fe16MS_reV– TECh SUPPORT: 1.888.678.9427 01/11/12 Page 31...
  • Page 32: Web-Based Management

    Before using web management, install the CNGE2FE16MS on the network and make sure that any one of the PCs on the network can connect with the CNGE2FE16MS through the web browser. The CNGE2FE16MS default values for IP, subnet mask, username and password are as below.
  • Page 33 You can change user name/password in the User Authentication section. Figure 34 – Login dialog box The CNGE2FE16MS also provides an option for you to connect with your browser via HTTP over SSL, called HTTPS. The SSL (Secure Socket Layer) protocol allows users to make a secured session between the browser (client) and the Ethernet switch (server).
  • Page 34 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS On the left side of the main page, you can find the tree menu structure of the Ethernet switch. Select the “+” symbol to expand a category, and select any one of the hyperlinks to open its function page.
  • Page 35 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS System Information Here you can view the system information and assign the system name and location to make this switch more easily identified on your network. » System Name: Assign the name of the switch. The maximum length is 64 bytes.
  • Page 36 IP will be lost and the user should find the new IP on the DHCP server » IP Address: Assign the IP address for the CNGE2FE16MS. With the DHCP Client function enabled, the switch is configured as a DHCP client and users don’t need to assign the IP address that is assigned by the DHCP server.
  • Page 37 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS Figure 38 – IP configuration—IPv4 inS_cnge2fe16MS_reV– TECh SUPPORT: 1.888.678.9427 01/11/12 Page 37...
  • Page 38 The IPv6 tab mainly features two fields displaying the Ethernet switch’s Global Unicast Address and Link-Local Address. » Global Unicast Address: A read-only field. When the CNGE2FE16MS switch is connected to a network segment whith one or more routers connected, the switch will be assigned an address known as Global Unicast Address by the router(s).
  • Page 39 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS DHCP Server Dynamic Host Configuration Protocol (DHCP) is a protocol for assigning dynamic IP addresses to devices on a network. With dynamic addressing, a device can have a different IP address every time it connects to the network. In some systems, the device’s IP address can even change while it is still connected.
  • Page 40 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS When the DHCP Server function is enabled, the system will collect the DHCP client information including the assigned IP address, the MAC address of the client device, the IP assigning type, states and lease time.
  • Page 41 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS Port and IP Bindings As shown in Figure 42, the switch will assign the IP address to the connected client according to the Port-IP binding table. The user is allowed to fill each port with one particular IP address.
  • Page 42 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS TFTP The Trivial File Transfer Protocol (TFTP) server allows the user to update the switch firmware. Before updating, make sure the TFTP server is ready and the firmware image is located on the TFTP server.
  • Page 43 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS Restore Configuration You can restore a previous backup configuration from the TFTP server to recover the settings. Before doing that, you must locate the image file on the TFTP server first for the switch to download back the flash image.
  • Page 44 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS Backup Configuration You can back up the current configuration from flash ROM to the TFTP server for the purpose of recovering the configuration at another time. It helps avoid wasted time spent configuring the settings by backing up the entire configuration.
  • Page 45 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS System Event Log This feature allows the user to decide whether to send the system event log, and to select the mode which the system event log will be sent to: client only, server only, or both client and server.
  • Page 46 Configure the email account and password for authentication procedures when this switch logs in to the SMTP server. » Mail Account: Specify the email, e.g. igoodman@comnet.net, to receive the email alert. It must be an existing email account on the mail server.
  • Page 47 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS System Event Log—Event Configuration The checkboxes and pull-down menus are not available unless the Syslog Client Mode on the Syslog Configuration tab and the E-mail Alert on the SMTP Configuration tab are enabled first. This tab mainly controls whether an event notification is to be sent to the Syslog/SMTP server.
  • Page 48 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS Figure 48 – Event Configuration interface inS_cnge2fe16MS_reV– TECh SUPPORT: 1.888.678.9427 01/11/12 Page 48...
  • Page 49 FAULT LED indicator is on if a power failure occurs. » Port Link Down/Broken: With the checkbox selected the relay device inside the CNGE2FE16MS changes its state and the FAULT LED indicator is on if the corresponding ports’ states become link down or broken.
  • Page 50 With the communicating programs running on those devices, it would cause time to jump forward and back, an undesirable effect. Therefore, the CNGE2FE16MS provides comprehensive mechanisms to access national time and frequency dissemination services, organize the time-synchronization subnet and the local clock in each participating subnet peer.
  • Page 51 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS Local Time Zone Conversion from UTC  Time at 12:00 UTC November Time Zone - 1 hour 11 am Oscar Time Zone -2 hours 10 am ADT - Atlantic Daylight -3 hours 9 am AST - Atlantic Standard...
  • Page 52 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS » SNTP Server URL: Specify the SNTP server IP address. You can assign a local network time- server IP address or an internet time-server IP address. » Switch Timer: When the switch has successfully connected to the SNTP server whose IP address was assigned in the field of SNTP Server URL, the current coordinated time is displayed here.
  • Page 53 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS IP Security The IP security function allows the user to assign up to 10 specific IP addresses that have permission to manage the switch through the http and telnet services for securing switch management. The purpose of giving permission to limited IP addresses is to allow only the authorized personnel/device to do the management task on the switch.
  • Page 54 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS User Authentication The User Authentication interface allows users to configure different login accounts for security reasons. The Admin User account is given administrative privileges. If you want others to access the Ethernet switch with a restricted account, configure the Guest User account for login authentication.
  • Page 55 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS N-Key Transaction Users can back up or restore configuration from/to the switch via this interface. » Auto mode: Tick this check box and select Apply to enable the function that with the N-Key device connected to the RS-232 console port, the switch will automatically load the system configuration from N-Key when booting up.
  • Page 56 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS Port Statistics The Port Statistics chart provides the current statistics information that displays the real-time packet transfer states for each port. The user might use the information to plan and implement the network, or check and find the problem when a collision or heavy traffic occurs.
  • Page 57 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS Port Control In Port Control (See Figure 55) you can configure the parameters of the connection for each port. » Port: Scroll up/down the scroll bar and select on the port number to choose a particular port to be configured.
  • Page 58 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS Figure 55 – Port Control interface inS_cnge2fe16MS_reV– TECh SUPPORT: 1.888.678.9427 01/11/12 Page 58...
  • Page 59 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS Port Trunk Port-trunking is the combination of several ports or network cables in order to expand the connection speed beyond the limits of any one single port or network cable. Link Aggregation Control Protocol (LACP), which is a protocol running on layer 2, provides a standardized means in accordance with IEEE 802.3ad to bundle several physical ports together to form a single logical...
  • Page 60 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS Figure 56 – Port Trunk—Aggregator Setting interface (four ports are added to the left field with LACP enabled) inS_cnge2fe16MS_reV– TECh SUPPORT: 1.888.678.9427 01/11/12 Page 60...
  • Page 61 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS Aggregator Information LACP Disabled Having configured the aggregator setting with LACP disabled, you can check the static trunk group information on the Aggregator Information tab. Figure 57 – Assigning 2 ports to a trunk group with LACP disabled Figure 58 –...
  • Page 62 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS LACP Enabled Having configured the aggregator setting with LACP enabled, you can check the trunking group information between two switches on the Aggregator Information tab. Configuration for Switch 1 » Set System Priority of the trunk group. The field displays 1 by default.
  • Page 63 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS Figure 60 – Aggregation Information of Switch 1 » Select the Aggregator Information tab to check the trunked group information as the illustration shown above after the two switches configured. inS_cnge2fe16MS_reV– TECh SUPPORT: 1.888.678.9427 01/11/12 Page 63...
  • Page 64 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS Configuration for Switch 2 Figure 61 – Switch 2 Configuration Interface » Set System Priority of the trunk group. The field displays 1 by default. » Select a trunk Group ID by selecting the pull-down menu.
  • Page 65 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS Figure 62 – Aggregation Information of Switch 2 » Select the Aggregator Information tab to check the trunked group information as the illustration shown above after the two switches configured. inS_cnge2fe16MS_reV– TECh SUPPORT: 1.888.678.9427 01/11/12 Page 65...
  • Page 66 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS State Activity Having configured the LACP aggregator on the Aggregator Setting tab, you may want to change the state activity for the members of the LACP trunk group. You can select/unselect the checkbox beside the state label. If you remove the select mark of the corresponding port and select the Apply button, the port state activity will change to Passive.
  • Page 67 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS Port Mirroring Port Mirroring is a method for monitoring of network traffic on switched networks. Traffic through ports can be monitored by one specific port, which means traffic going in or out the monitored (source) ports will be duplicated into the mirroring (destination) port.
  • Page 68 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS Rate Limiting You can respectively configure the ingress limitation type and ingress/egress rate for each port. Ingress Limit Frame Type Select the limit type for ingress frames. Four options are available as follows: » All »...
  • Page 69 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS The DMI (Diagnostic Monitoring Interface) is developed for monitoring temperature, voltage, current, transmitting power and receiving power for SFP (Mini-GBIC) ports. If the real detected values, such as temperature, voltage, current etc., of the respective ports reach the threshold of the connected transceiver, the system will shut down the device or send e-mail to notify the related staff.
  • Page 70 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS VLAN Configuration A Virtual LAN (VLAN) is a logical network grouping that limits the broadcast domain, which allows you to isolate network traffic. Therefore only the members of the same VLAN will receive traffic from the ones among the same VLAN. Basically, creating a VLAN on a switch is logically equivalent of reconnecting a group of network devices to another Layer 2 switch;...
  • Page 71 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS particular VLAN group, except it is on a Trunk/Hybrid Link. The technique of 802.1Q tagging inserts a 4-byte tag, including VLAN ID of the destination port— PVID, in the frame. With the combination of Access/Trunk/Hybrid Links, the communication across switches also can make the packet sent through tagged and untagged ports.
  • Page 72 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS 802.1Q Configuration Please follow the instructions below to configure the 802.1Q VLAN. » Select the pull-down menu to select 802.1Q and select Apply to configure the VLAN Operation Mode on 802.1Q. » Enable GVRP Protocol: Select this checkbox to enable GVRP protocol. This checkbox is available while the VLAN Operation Mode is set on 802.1Q.
  • Page 73 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS » Link Type: Three options are available. Select the Link Type pull-down menu to select the link type. » Access Link: A segment that provides the link path for one or more stations to the VLAN-aware device like switches.
  • Page 74 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS Group Configuration Edit the existing VLAN Groups. » Select the Group Configuration tab. » Select a VLAN group in the list box and select the Edit button. Figure 70 – Group Configuration interface » After selecting the Edit button, you can change Group Name and VLAN ID of the selected VLAN group.
  • Page 75 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS Rapid Spanning Tree The Rapid Spanning Tree Protocol (RSTP) is an evolution of the Spanning Tree Protocol providing for faster spanning tree convergence after a topology change. The system also supports STP and will auto-detect the connected device running STP or RSTP.
  • Page 76 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS Root bridge Information The column fields give the current bridge information for the switch. » Bridge ID: This field displays the bridge ID by showing the MAC address of this switch. » Root Priority: This field displays the numerical value indicating bridge priority of the switch.
  • Page 77 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS Port Configuration This tab (Figure 73) offers the interface for RSTP port configuration where you can assign parameters to each port. The rapid spanning tree protocol will have the port with the higher priority in forwarding state and block other ports to make certain that there is no loop in the LAN.
  • Page 78 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS Figure 73 – RSTP Port Configuration interface inS_cnge2fe16MS_reV– TECh SUPPORT: 1.888.678.9427 01/11/12 Page 78...
  • Page 79 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS SNMP Configuration Simple Network Management Protocol (SNMP) is the protocol developed to manage nodes (servers, workstations, routers, switches and hubs etc.) on an IP network. SNMP enables network administrators to manage network performance, find and solve network problems, and plan for network growth.
  • Page 80 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS System Configuration This tab allows users to define new community strings and remove the unwanted community strings for authentication purposes. With adding a new community string, you should also specify the type of access permission and the agent mode.
  • Page 81 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS Trap Configuration A trap manager is a management station that receives trap messages generated by the switch. If no trap manager is defined, no traps will be issued. To define a management station as a trap manager, assign an IP address, enter the SNMP community strings, and select the SNMP trap version.
  • Page 82 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS SNMPV3 Configuration This tab allows users to configure the SNMPv3 settings for communications via SNMPv3. Context Table Configure the SNMPv3 context table. Assign the context name in the field. Select Apply to add the context name added or changed.
  • Page 83 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS Figure 76 – SNMPv3 configuration interface Access Table Figure 77 – Configure the SNMPv3 access table inS_cnge2fe16MS_reV– TECh SUPPORT: 1.888.678.9427 01/11/12 Page 83...
  • Page 84 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS » Context Prefix: In this filed type in the prefix letters of the context name that is assigned in the context table. » Group Name: Type in the group name that is assigned in the group table.
  • Page 85 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS QoS Configuration In general, traffic on networks is treated as the same priority and delivered equally. With QoS enabled, users can classify frames or packets into different priorities to ensure specific network traffic is delivered on a foundation of best-effort. The incoming frames or packets can be sent to different priority queues for different priority service according to the configured polices.
  • Page 86 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS Port-based Priority Configure the priority level for each port. Any packet received from a single port is sent to the Lowest queue by default. This item allows users to change the priority level for each port respectively.
  • Page 87 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS ToS Configuration Configure this item to allocate the identified packet to different queues according to the packet’s 6-bit DSCP (Differentiated Service Code Point) value inside the 1-byte ToS (Type of Service) field. The 6-bit DSCP value defines up to 64 priority values. Therefore, you can assign one of the four queues to each priority respectively.
  • Page 88: X-Ring2

    INSTALLATION AND OPERATION MANUAL CNGE2FE16MS X-Ring2 X-Ring provides a faster redundant recovery than the Spanning Tree topology. The action is similar to STP or RSTP, but the algorithms between them are not the same. To configure an X-Ring group, enable the X-Ring function on each switch whose two ports connecting to the ring group in which should be assigned as the member ports.
  • Page 89 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS Figure 80 – X-Ring2 Interface inS_cnge2fe16MS_reV– TECh SUPPORT: 1.888.678.9427 01/11/12 Page 89...
  • Page 90 CNGE2FE16MS X-Ring II Applications X-Ring II is an enhanced X-Ring mechanism for ComNet industrial switches which eliminates the need to pre-define the Master Switch as it is in the X-Ring. It protects a network with the most secure topologies ever. X-Ring II works as a chain of rings to reduce the risk of master switch failure or link down.
  • Page 91 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS Coupled X-Ring II Recover Time: 10ms Maximum switches: 256 Backup masters: 256 Human Data Collection Management Server Interface Ring Ring IP Camera Terminal Server Traffic Signal Field Management Control Equipment Figure 82 – Coupled X-Ring II Topology inS_cnge2fe16MS_reV–...
  • Page 92 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS Multiple Coupled X-Ring II Recover Time: 10ms Maximum switches: 256 Backup masters: 256 Human Data Collection Management Server Interface Ring Ring Ring Ring IP Camera Terminal Server Traffic Signal Field Management IP Camera Terminal Server Traffic Signal...
  • Page 93 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS Dual Homing X-Ring II RSTP ring: Recover Time: 10ms X-Ring II: Recover Time: 10ms Maximum switches: 256 Maximum switches: 50 Backup masters: 256 Backup masters: 50 Human Data Collection Management Server Interface Ring Ring IP Camera...
  • Page 94 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS Dual Homing Three X-Ring II Recover Time: 10ms Maximum switches: 50 Backup masters: 50 Data Collection Server Ring Human Management Interface Ring Ring IP Camera Terminal Server IP Camera Terminal Server Traffic Signal Field Management Control Equipment Figure 85 –...
  • Page 95 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS Legacy_Ring Mode Setting the X-Ring2 Operation Mode on Legacy-Ring mode means the switch is configured as a backward compatible device that could only be a non-master switch when joining a legacy X-Ring group. » 1st Ring Port: Use the pull-down menu to select a port as the first ring port.
  • Page 96 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS LLDP Configuration Link Layer Discovery Protocol (LLDP), a one-way protocol, specified in the IEEE 802.1ab standard allows stations attached to the same IEEE 802 LAN to advertise their information to neighbors and store the information received from adjacent stations.
  • Page 97 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS 802.1X/Radius 802.1x is an IEEE authentication specification that allows a client to connect to a wireless access point or wired switch but prevents the client from gaining access to the Internet until it provides authority, like a user name and password that are verified by a separate server.
  • Page 98 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS Port Configuration You can configure the 802.1x authentication state for each port. The state provides Disable, Accept, Reject, and Authorize. » Reject: The specified port is required to be held in the unauthorized state. » Accept: The specified port is required to be held in the authorized state.
  • Page 99 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS Misc Configuration » Quiet Period: Set the period that the port does not try to acquire a supplicant. » TX Period: Set the period the port waits for retransmitting the next EAPOL PDU during an authentication session.
  • Page 100 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS MAC Address Table Here users can determine whether the incoming traffic passes through the particular ports or is blocked in accordance with the MAC-address filtering table. Static MAC Address Configure the static MAC address tab to make a list in which traffic from devices with the MAC address included will pass the port.
  • Page 101 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS MAC Filtering The switch will block traffic from devices with the MAC address listed in this table. Figure 92 – MAC Filtering interface » MAC Address: Enter up to 256 MAC addresses. » Select the Add button.
  • Page 102 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS All MAC Addresses This tab displays dynamic and static MAC addresses on each port. » Port No: Use the pull-down menu to select a particular port to show its MAC address information. » Select the Clear MAC Table button to clear the listed entries of the current MAC address information.
  • Page 103 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS IGMP/MLD Snooping IGMP is the protocol used by IPv4 systems to report their IP multicast group memberships to neighboring multicast routers. To handle multicast management on IPv6 networks, Multicast Listener Discovery (MLD) is used in a similar way by IPv6 systems.
  • Page 104 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS Static Filtering Multicasts are similar to broadcasts, they are sent to all end stations on a LAN or VLAN. Static filtering is the function for users to configure a list of multicast groups by specifying the multicast MAC address and member ports for each entry.
  • Page 105 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS Factory Default » Select the Reset button to reset the switch back to factory defaults. Before resetting, you can select the checkboxes to keep the current IP address and user name/password. Figure 96 – Factory Default interface Save Configuration »...
  • Page 106: Troubleshooting

    INSTALLATION AND OPERATION MANUAL CNGE2FE16MS Troubleshooting » Verify that you are using the right power cord/adapter. Do not use a power adapter with DC output higher than the rated voltage of the switch. This will result in severe damage. » Select the proper network cable to construct your network. Please confirm that you are using the correct cable.
  • Page 107: Appendix A-Command Sets

    INSTALLATION AND OPERATION MANUAL CNGE2FE16MS Appendix A—Command Sets Command Level » User EXEC » Privileged EXEC » Global configuration » VLAN database » Interface configuration Modes Access Method Prompt Exit Method About This Mode User EXEC Begin a session switch>...
  • Page 108 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS System Commands Set Commands Level Description Example switch>show config show config Show switch configuration switch#show terminal show terminal Show console information switch#write memory write memory Save user configuration into permanent memory (flash rom) system name...
  • Page 109 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS guest password Configure the password for for switch(config)# guest password xxxxxx [Password] the guest account show guest Show guest information switch#show guest dhcpserver enable Enable DHCP Server switch(config)#dhcpserver enable dhcpserver lowip Configure low IP address for IP...
  • Page 110 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS Port Commands Set Commands Level Description Example interface fastEthernet Choose the port for modification.switch(config)#interface [Portid] fastEthernet 2 state Use the state interface switch(config)#interface fastEthernet 2 [enable|disable] configuration command to specify the state mode of switch(config-if)#state disable operation for Ethernet ports.
  • Page 111 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS bandwidth in Set interface input bandwidth. switch(config)#interface fastEthernet 2 [0/160/320/512/768/1024/12 Zero means no limit. 80/1536/2048/3072/ switch(config-if)#bandwidth in 160 4096/5120/8192/10240/ 20480/30720/40960/ 61440/81920/128000] bandwidth out Set interface output bandwidth. switch(config)#interface [0/160/320/512/768/1024/12 Rate Range is from 100 kbps to...
  • Page 112 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS Trunk Commands Set Commands Level Description Example switch(config)#aggregator priority aggregator priority Set port group system priority [1~65535] aggregator group Assign a trunk group with LACP switch(config)#aggregator group 1 [GroupID] [Port-list] active. 1-4 lacp workp 2...
  • Page 113 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS DMI Commands Set Commands Level Description Example show dmi Display DMI status for Mini-GBIC switch(config)#interface ports fastEthernet 7 switch(config-if)#show dmi dmi temperature Set reactions for port switch(config)#interface [HighAlarm|HighWarning| fastEthernet 7 temperature monitoring LowWarning|LowAlarm] switch(config-if)#dmi temperature...
  • Page 114 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS vlan 8021q port Assign an access link for VLAN switch(vlan)#vlan 8021q port 3 access-link untag 22 [PortNumber] by port. If the port belongs to a access-link untag trunk group, this command can’t [UntaggedVID] be applied.
  • Page 115 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS Spanning Tree Commands Set Commands Level Description Example spanning-tree enable Enable spanning tree switch(config)#spanning-tree enable spanning-tree priority Configure spanning tree priority switch(config)#spanning-tree [0~61440] parameters priority 4096 spanning-tree max-age Use the spanning-tree max-age switch(config)#spanning-tree max- age 15...
  • Page 116 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS stp-path-priority Use the spanning-tree port- switch(config)#interface fastEthernet 2 [0-240] priority interface configuration command to configure a port switch(config-if)#stp-path-priority priority that is used when two switches tie for position as the admin switch. stp-admin-p2p Configure Admin P2P of STP...
  • Page 117 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS IGMP Commands Set Commands Level Description Example Enable IGMP snooping function switch(config)#igmp enable igmp enable switch(config)#igmp query auto igmp query auto Set IGMP query to auto mode igmp query enable Set IGMP query to force mode...
  • Page 118 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS Multicast Static Filtering Table Commands Set Commands Level Description Example multicast-filtering Add entries for the multicast switch(config)#interface [IP-Addr] filtering. fastEthernet 2 switch(config-if)# multicast-filtering 01-00-5e-00-00-01 switch(config-if)# multicast-filtering 33-33-00-00-00-01 no multicast-filtering Remove entries for the multicast switch(config)#interface [IP-Addr] filtering.
  • Page 119 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS SNMP Commands Set Commands Level Description Example switch(config)#snmp system-name snmp system-name Set SNMP agent system name [System Name] l2switch snmp system-location Set SNMP agent system location switch(config)#snmp system- [System Location] location lab snmp system-contact Set SNMP agent system contact switch(config)#snmp system-...
  • Page 120 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS snmpv3 mibview view Configure the mibview table of switch(config)#snmpv3 mibview view V1 type Excluded sub-oid [View Name] the SNMPV3 agent type 1.3.6.1 [Excluded|Included] sub-oid [OID] show snmp Show SNMP configuration switch#show snmp no snmp community-strings...
  • Page 121 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS Port Mirroring Commands Set Commands Level Description Example monitor Configure the source port of switch(config)#interface [RX|TX|Both] monitor function fastEthernet 2 switch(config-if)#monitor RX monitor rx [Port ID] Set RX destination port of switch(config)#monitor rx 3 monitor function...
  • Page 122 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS 8021x misc txperiod Use the global configuration switch(config)# 8021x misc txperiod [sec.] command to set the TX period in seconds. 8021x misc supptimeout Use the global configuration switch(config)# 8021x misc [sec.] command to set the supplicant supptimeout 20 timeout in seconds.
  • Page 123 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS SystemLog, SMTP and Event Commands Set Commands Level Description Example switch(config)# systemlog mode systemlog mode Specify the log mode [client|server|both] both systemlog ip Set System log server IP address. switch(config)# systemlog ip [IP address] 192.168.1.100 show systemlog Display system log.
  • Page 124 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS no event authentication- Disable the event type of switch(config)#no event authentication-failure both failure Authentication failure [Systemlog|SMTP|Both] no event mac-violation Disable the event type of MAC switch(config)#no event mac- [Systemlog|SMTP|Both] Violation violation both no event systemlog...
  • Page 125 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS SNTP Commands Set Commands Level Description Example switch(config)#sntp enable sntp enable Enable SNTP function switch(config)#sntp daylight sntp daylight Enable daylight saving time. If the SNTP function is inactive, this command can’t be applied. sntp daylight-period...
  • Page 126 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS X-ring2 Commands Set Commands Level Description Example switch(config)#ring2 mofde x-ring2 ring2 mode Set X-ring in X-ring2 mode [X-Ring2|Legacy-Ring] ring2 add Add an X-Ring2 entry switch(config)#ring2 add 1 5 6 7 2 [Ring ID][1st Ring Port][2nd...
  • Page 127 INSTALLATION AND OPERATION MANUAL CNGE2FE16MS N-Key Commands Set Commands Level Description Example switch(config)# nkey auto on nkey auto System configurations auto- [on/off] loaded when system boots up LLDP Commands Set Commands Level Description Example lldp enable Enable LLDP function switch(config)# lldp enable...
